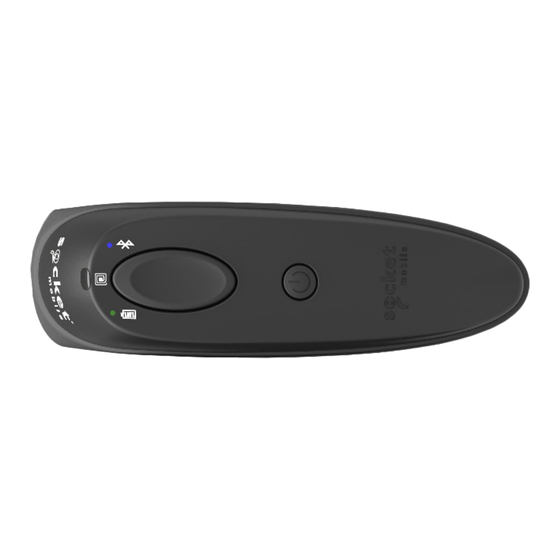

SocketMobile DURASCAN D600 User Manual

Bluetooth wireless technology contactless reader/writer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

D600 USERGUIDE

DURASCAN

Bluetooth

wireless technology

Contactless Reader/Writer

Model D600

www.socketmobile.com

Table of Contents

Need help?

Do you have a question about the DURASCAN D600 and is the answer not in the manual?

Questions and answers

Summary of Contents for SocketMobile DURASCAN D600

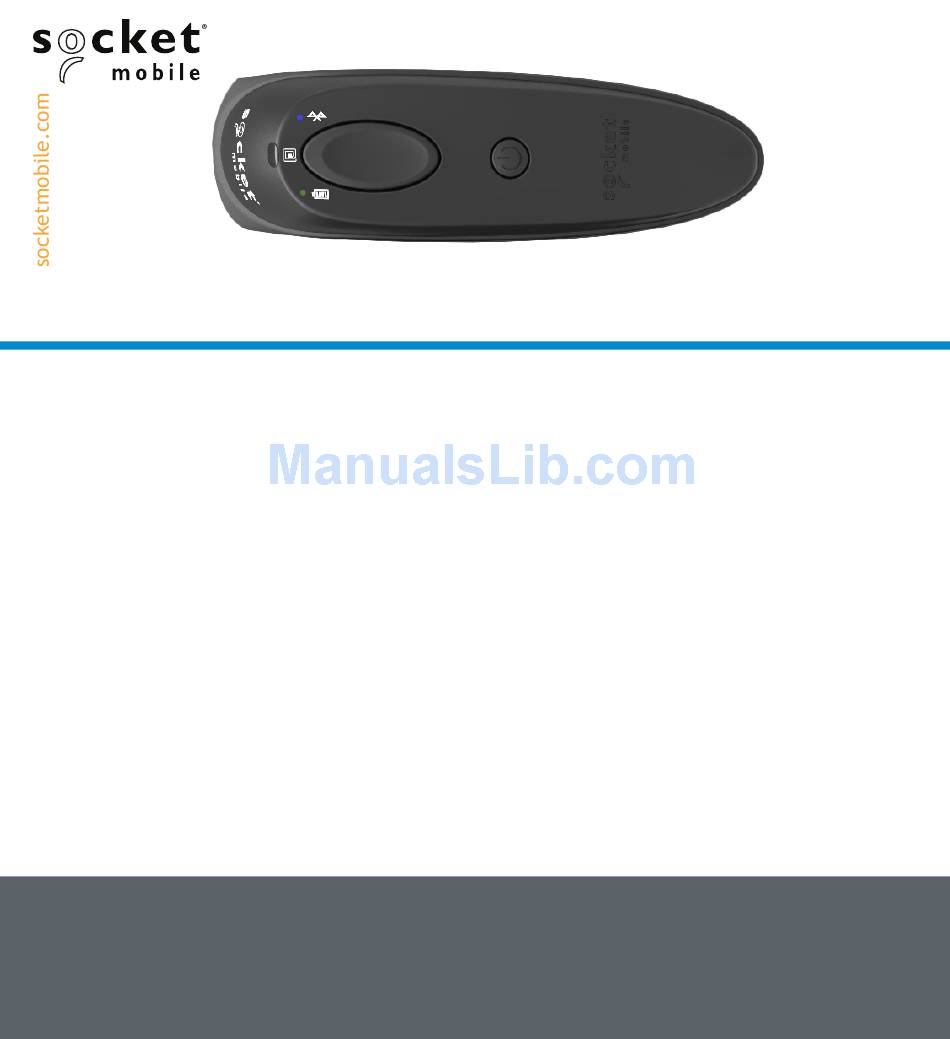

Page 1 D600 USERGUIDE DURASCAN Bluetooth wireless technology ® Contactless Reader/Writer Model D600 www.socketmobile.com...
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents Package Contents Product Information Charge the Battery Optional Charging Accessories Powering on/off Reading Tags Bluetooth Connection Modes 10-11 Bluetooth Unpairing Factory Reset Auto Mode Charging Stand Bluetooth ReConnection Status Indicators 21-24 Product Specifications 25-26 Helpful Resources Safety and Handling Information Bluetooth Device United States...
Page 3: Package Contents
PACKAGE CONTENTS Lanyard DuraScan USB to DC Plug D600 Charging Cable Thank you for choosing Socket Mobile! Let’s get started! ©2017 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, and SocketScan are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc.
Page 4: Product Information
PRODUCT INFORMATION NFC Antenna Read Indicator Light Product label Bluetooth Light (Blue) Battery Light (Green/Yellow/Red) Trigger button Power button* Power Connector Cradle/Stand Attachment Lanyard Eyelet Pins for charging cradle/stand The D600 has a protection rating of IP54 for dust and water protection. It is also made with antimicrobial material to help provide protection against bacteria.
Page 5 READER SETUP Attach the Lanyard (optional) 1. Detach the string loop of the tether from the lanyard. 2. Feed the string loop through the eyelet. 3. Pull the gimbal through the string loop. 4. Pull tight so the string loop is secure. 5.
Page 6: Charge The Battery
CHARGE THE BATTERY Power Adapter Rubber Flap To open The reader must be fully charged before first use. Please allow 6 hours of uninterrupted charging for the initial battery charge. Lift the rubber flap to access the power connector. • Yellow Light = Charging •...
Page 7: Optional Charging Accessories
OPTIONAL CHARGING ACCESSORIES Available separately Charging Cradle Charging Stand* AC Power Supply International Adapters available *Supports continuous read modes. For all optional accessories visit our Socket Store.
Page 8: Powering On/Off
POWERING ON/OFF Power button Powering On: Powering Off/ Disconnecting: Press and hold down the small Press and hold down the small power button until the Battery power button until the reader light turns on and the reader beeps beeps twice (high-low) and all twice (low-high).
Page 9: Reading Tags
READING TAGS Reading Tags 1. Hold the reader within two inches of the card, tag or smart device 2. The card, tag, or smart device should be parallel to the D600 antenna 3. Press the trigger button momentarily; the read indicator light turns orange while reading/pulling a tag.
Page 10: Bluetooth Connection Modes
BLUETOOTH CONNECTION MODES Connect your reader using one of the following Bluetooth connection modes: Bluetooth Connection Profiles Bluetooth Mode Description Basic Mode (HID) • NO software installation required (Default)* • Connects to most devices • Good for RFIDs containing small amounts of data Human Interface •...
Page 11 BLUETOOTH CONNECTION MODES Bluetooth Connection Mode button sequence will toggle the D600 between Mode B and Mode A. Follow the Bluetooth Connection Mode (button) sequence: 1. Power OFF the D600. 2. Press and hold the trigger button. 3. Press and hold the power button while continuing to press the trigger button.
Page 12: Bluetooth Unpairing
BLUETOOTH UNPAIRING Note: This procedure will put the reader in discoverable mode. Step 1: Unpairing the reader: Delete the Bluetooth Pairing If the reader is paired with a device, unpair it before trying to connect to a different device. a. Power on the reader. b.
Page 13: Factory Reset
FACTORY RESET Factory Reset will restore the D600 to Factory Default settings (configured as shipped). Follow the Factory Reset (button) sequence: 1. Power ON the reader. 2. Press and hold the trigger button. 3. Tap the power button once while continuing to press the trigger. Tap the power button 4.
Page 14: Auto Mode Charging Stand
AUTO MODE (CHARGING STAND) If you have purchased the Socket Mobile Charging Stand, the D600 can both charge and read stationary in Auto Mode. 1. Pair and connect the D600 to your device prior to placing the reader in Auto Mode. The reader is not discoverable when in Auto Mode and in the Stand.
Page 15: Bluetooth Reconnection
BLUETOOTH RECONNECTION Automatic Reconnections Each time you power on the reader, it will automatically try to connect to the last device it was connected to. • Make sure the device is in range with Bluetooth turned on. • Pressing the trigger button will initiate the attempts to connect. •...
Page 16 BLUETOOTH CONNECTION MODES Operating System Connection Options Operating Bluetooth Bluetooth Systems Devices (OS) Support Support Android 4.4 & later Android iPod, iPhone, & Apple iOS iPad Windows PC Windows 7, 8, 10 Mac OS X 10.4 to 10.X Mac OS Mac Books, Mac Mini, &...
Page 17 BASIC MODE Android: Connect Android Device in Basic Mode In this mode the reader functions and communicates similar to a key- board. Therefore, the reader will work with Notes, and any other application that support an active cursor. 1. Power on the reader. Make sure the reader is discoverable (unpaired) The Blue light blinks fast.
Page 18 BASIC MODE Apple: Connect to Apple iOS Device or Mac OS Device Basic Mode In this mode the reader functions and communicates similar to a key- board. Therefore, the reader will work with Safari, Notes, and any other application that supports an active cursor. 1.
Page 19 BASIC MODE Windows: Connect Windows Device in Basic Mode In this mode the reader functions and communicates similar to a keyboard. Therefore, the reader will work with Notes, and any other application that supports an active cursor. 1. Turn Bluetooth on for your device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin.
Page 20 APPLICATION MODE Connect Apple iOS device in Application Mode Please check with your reader application vendor or visit www.socketmobile.com/appstore to confirm your reader-enabled application supports the reader. If you are using the reader with an Apple iOS device and a reader-enabled Application that does not provide instructions how to connect your reader, please use the following steps.
Page 21: Status Indicators
STATUS INDICATORS Battery Charging when plugged LED Activity Meaning into Power Supply Blinking Yellow Charging the battery Solid Green Battery is 100% full Battery Status When not LED Activity Meaning connected to power supply Battery capacity from 100% Solid Green to 25% Battery capacity from 25% Solid Yellow...
Page 22 STATUS INDICATORS (CONTINUED) Bluetooth LED Activity Meaning Quick Blinking Blue Discoverable - waiting for a (2 blinks every host Bluetooth connection. second) Attempting to connect to a paired device. Searching Bluetooth Slow Blinking Blue the last known Host. (1 blink every second) Note: Will STOP attempting after approx.
Page 23 STATUS INDICATORS (CONTINUED) Beep Pattern Sound Meaning Low-High Tone Power On High-Low Tone Power Off High-High Tone Power Supply detected and reader started charging 1 Low Beep Reader has toggled on-screen keyboard or keyboard toggle feature is enabled (iOS devices only) 1 Beep Reader connected to device and is ready to read tags...
Page 24 STATUS INDICATORS (CONTINUED) Vibrate Meaning Short Pulse Data successfully read Medium Pulse Power on Long Pulse Data unsuccessfully read If you are using a reader-enabled application, typically the applica- tion provides settings for LED, beep, and vibrations. Configuration Settings Time after powering on Reader Bluetooth mode 0-5 minutes Discoverable and connectable...
Page 25: Product Specifications
PRODUCT SPECIFICATIONS Specifications D600 Dimensions (L x W x H) 5.2” x 1.5” x 1.6” (132.2 x 37.1 x 40.1 mm) Total Mass 3.8 oz (108 g) Antimicrobial Antimicrobial additive in external surfaces Battery 1400 mAh Lithium - Ion Battery Charge Time 6 Hours Battery Life -...
Page 26 PRODUCT SPECIFICATIONS Specifications D600 Maximum RFID Read 0.4” - 2” (10 - 50 mm) Range: NFC/RFID front-end: NXP CLRC663 Carrier frequency: 13.56 MHz (RFID HF, NFC) Card/tag Read/Write 264 kbps (ISO 15693), 1064kbps (ISO 14443, Speed: 212/424kbps (ISO 18092) Antenna: Integrated, 28mm x 14mm, balanced Systems/Battery USB Type 5V 1A...
Page 27: Helpful Resources
HELPFUL RESOURCES Technical Support & Product Registration: https://support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: https://www.socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: http://www.socketmobile.com/developers The User’s Guide (full installation and usage instructions) and Command Tags (Advanced Reader Configurations) can be download at:...
Page 28: Safety And Handling Information
Do not attempt to disassemble the product. Should your unit need service, contact Socket Mobile technical support at https://support.socketmobile.com/ Changes or modifications of this product, not expressly approved by Socket Mobile may void the user’s authority to use the equipment.
Page 29: Bluetooth Device United States
BLUETOOTH DEVICE UNITED STATES FCC ID: LUBD600 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 30: Bluetooth Device United States
BLUETOOTH DEVICE UNITED STATES FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radia- tor and your body.
Page 31: Bluetooth Device Canada
BLUETOOTH DEVICE CANADA IC ID: 2529A-D600 This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Page 32: Bluetooth Device Europe
BLUETOOTH DEVICE EUROPE CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and Euro- pean Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows: Applicable Directives: •...
Page 33: Bluetooth Device Japan
BLUETOOTH DEVICE JAPAN Telec Marking Compliance R 211-161214 Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.
Page 34: Battery Warning Statements
Stop using the DuraScan D600 if the enclosure is cracked, swollen or shows any other signs of misuse. Discontinue immediately and promptly dispose of unit.
Page 35 BATTERY WARNING STATEMENTS • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. • Never expose this product or the battery to any liquids. • Do not shock the battery by dropping it or throwing it. If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and promptly dispose.
Page 36: Regulatory Compliance
REGULATORY COMPLIANCE CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
Page 37: Limited Warranty
You may be required to furnish proof of purchase details when making a claim under this warranty. Consumables such as batteries, removable cables, cases, straps, and chargers: 90 day coverage only For more warranty information, please visit: https://www.socketmobile.com/support/downloads...
Page 38: Configuration Cards
CONFIGURATION CARDS Read configuration card(s) to quickly configure the Reader.
Page 39 Extend Your Warranty... Receive Priority Service and Personal Care. You have 60 Days from purchase date to enroll in a SocketCare Service Program! For detailed information visit: https://www.socketmobile.com/socketcare 2017...
