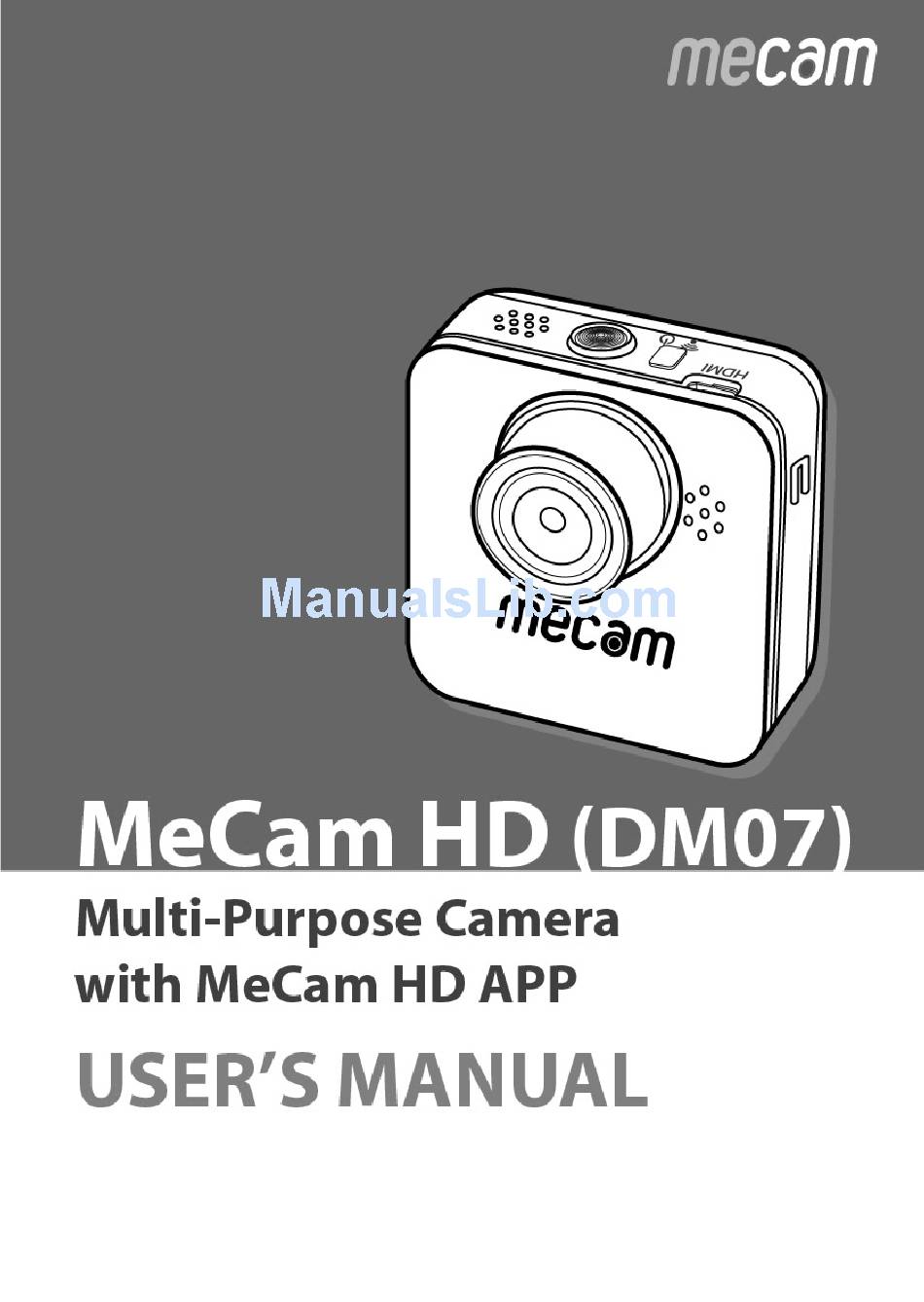

Mecam DM07 User Manual

Multi-purpose camera with mecam hd app
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM07 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mecam DM07

  • Page 2: Fcc Compliance Statement

    FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 3: Safety Instructions

    Safety Instructions • Do not drop, puncture or disassemble the device; otherwise the warranty will be voided. • Avoid all contact with water. Dry your hands before using the device. • Use the device with care. Avoid pressing hard on the device body.

  • Page 4: Package Content

    Introduction MeCam is hands-free wearable camera that you can pin or clip it to your shirt, wear it as a necklace, or mount it to the car windshield to record high quality videos and pictures. Package Content The following items come with your package.

  • Page 5: Product Overview

    Product Overview Function button Power button Function LED HDMI port Microphone Micro SD card slot Micro USB port Power LED Wi-Fi LED...

  • Page 6: Buttons And Led Indicators

    Buttons and LED Indicators Button Functions Status Action Power on Press and hold the Power button for 2 seconds. Power off Press and hold the Power button for 3 seconds. Turn off Wi-Fi Press and hold the Power button for 6 seconds. Start recording Press and hold the Function button for 3 seconds.

  • Page 7: Getting Started

    Getting Started Inserting the Memory Card Insert the memory card with the gold contacts facing to the front of the device. Push the memory card until it clicks into place. About SD Card • Please use SD card with the size/memory at least 8GB, Class 10 (up to 64GB).
  • Page 8  Note As an alternative, you can also charge the device using an AC • adapter. Powering the Device On/Off • To turn on the power, press and hold the Power button for 2 seconds. • To turn off the power, press and hold the Power button for 3 seconds.

  • Page 9: Connecting To Your Smartphone

    2. Launch App Store (iOS)or Google Play/Play Store (Android) application. 3. On the search bar, enter the keyword “MeCamHD” to search for APP. 4. Download and install MeCam HD. After the installation is complete, the MeCam icon ( ) is displayed on the application screen.

  • Page 10: Connect Via Wi-Fi

    Connect via Wi-Fi 1. On your smartphone, launch Settings application. 2. In WIRELESS & NETWORKS, tap Wi-Fi and set it to ON. The available networks are listed. 3. Tap MeCamHD to connect to the camera. 4. Enter the password and tap Join Connect (iOS) or (Android)

  • Page 11: Controlling The Device Using App

    Controlling the Device using APP Preview Mode 1. Tap Preview tab to switch to Preview/Record mode. 2. Tap to view the live view on your smartphone. Record Mode Capture Photos Select ONE SHOT ( ) to switch to Photo mode. to capture a photo.
  • Page 12 Capture Continuous Shots Select PHOTO BURST ( ) to switch to Continuous Shot mode. Tap and hold to continuously capture photos. Release to stop shooting. Capture Photos By Time Lapse Select TIME LAPSE ( ) to switch to Time Lapse mode. to continuously capture photos at the preset interval time.

  • Page 13: Snap Movie

    Record Videos Select RECORD VIDEO ( ) to switch to Video mode. to start recording. To stop recording, tap Note You can also press the Function • button on the camera to start/stop recording video. Snap Movie Select SNAP MOVIE ( ) to switch to Snap Movie mode.

  • Page 14: Playback Mode

    Playback Mode Tap Playback tab to switch to Playback mode. Tap Video or Photo tab to browse the recorded files. Play Video 1. On Video list, tap the desired video to play the video. 2. Tap the screen to pause the playback.

  • Page 15: Download File Into Your Smartphone

    Download File into Your Smartphone On the playback screen, tap > and then select the video resolution to save the selected video into your smartphone. The downloaded files are listed in the Mobile list. (for video only) Note You do not need to specify the photo size before saving it •...
  • Page 16 Then connect your smartphone to the Internet (either by mobile data connection or Wi-Fi). 2. Launch MeCam HD application. > Sign in > + > Facebook ( ) or YouTube ( Follow the on-screen instructions to login to your social network account.

  • Page 17: Configuring Settings

    Configuring Settings Configure the video and photo recording, wireless connection, and the device general settings. 1. Tap Settings tab to switch to Setup mode. 2. Select the desired menu option. 3. Tap to select the desired setting. Menu Option Description Video Set the video resolution.
  • Page 18 Menu Option Description Wifi Setting Configure the SSID and password settings. Enter the new SSID and password. Then tap OK to save the settings. Date/Time View the current date and time. Setting  Note • The data shown is based on your smartphone’s date and time settings.

  • Page 19: Using Accessories

    Using Accessories Using the Strap To use the strap, do the following: 1. Press the quick release buckle to detach the lanyard clip. 2. Insert the lanyard through the strap eyelet on the bracket. Make a loop to secure it. 3.

  • Page 20: Using The Clip

    Using the Clip To wear the device on your cloth using the clip, do the following: 1. Install the camera into the bracket. 2. Pinch the prongs to open the clipper and wear it on your cloth. Using the Pin Clip To wear the device on your cloth using the pin clip, do the following: 1.

  • Page 21: Using The Stand

    2. Open the pin by pressing on the bar. Be careful with the sharp point. 3. Slide the open pin through the cloth. Then squeeze the pin and slide the bar back into position. Using the Stand The device can also be used as a surveillance camera to monitor your home or office.

  • Page 22: Using The Suction Cup Bracket

    Using the Suction Cup Bracket The device can be used as a car recorder. To mount the device in your car windshield, do the following: 1. Install the camera into the bracket. 2. With the suction-cup laying flat, position the suction cup on the windshield.

  • Page 23: Specifications

    Specifications Image Sensor 3.1 Mega pixels CMOS Video 1920x1080P(30fps) / 1280×720P(60fps) / Resolution 432x240p(120fps) Lens Angle Wide angle lens, FOV 130 (Diagonal) Aperture Range F/#2.3 File Format MP4 (AVC/H.264) External Micro SD card(SDXC), Min: 8GB, class 10 Memory Interface Micro USB 2.0, Micro HDMI TV Output Wireless 802.11 b/g/n WiFi Connectivity...
