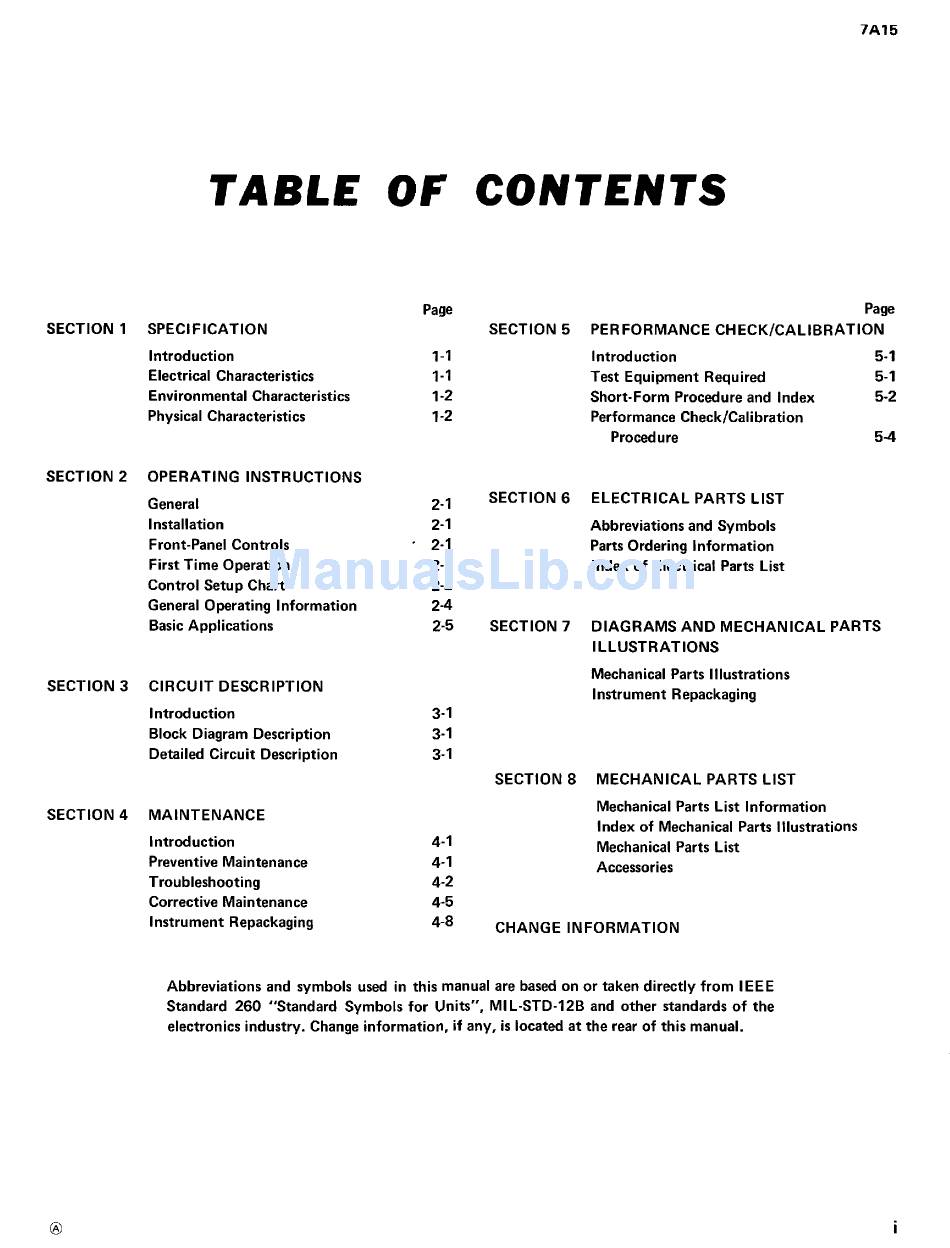

TABLE OF CONTENTS
Page Page
SECTION 1 SPECIFICATION SECTION 5
PERFORMANCE CHECK/CALIBRATION
Introduction
1-1
Introduction 5-1
Electrical Characteristics
1-1 Test Equipment Required
5-1
Environmental Characteristics 1-2
Short-Form Procedure and Index
5-2
Physical Characteristics 1-2
Performance Check/Calibration
Procedure
5-4
SECTION 2 OPERATING INSTRUCTIONS
General 2-1
SECTION 6 ELECTRICAL PARTS LIST
Installation 2-1
Abbreviations and Symbols
Front-Panel Controls 2-1
Parts Ordering Information
First Time Operation 2-1
Index of Electrical Parts List
Control Setup Chart 2-2
General Operating Information 2-4
Basic Applications
2-5 SECTION 7
DIAGRAMS AND MECHANICAL PARTS
ILLUSTRATIONS
SECTION 3 CIRCUIT DESCRIPTION
Introduction 3-1
Block Diagram Description
3-1
Detailed Circuit Description
3-1
SECTION 4 MAINTENANCE
Introduction 4-1
Preventive Maintenance 4-1
Troubleshooting 4-2
Corrective Maintenance 4-5
Instrument Repackaging 4-8
Mechanical Parts Illustrations
Instrument Repackaging
SECTION 8
MECHANICAL PARTS LIST
CHANGE INFORMATION
Mechanical Parts List Information
Index of Mechanical Parts Illustrations
Mechanical Parts List
Accessories
Abbreviations and symbols used in this manual are based on or taken directly from IEEE
Standard 260 "Standard Symbols for Units", MIL-STD-12B and other standards of the
electronics industry . Change information, if any, is located at the rear of this manual .
