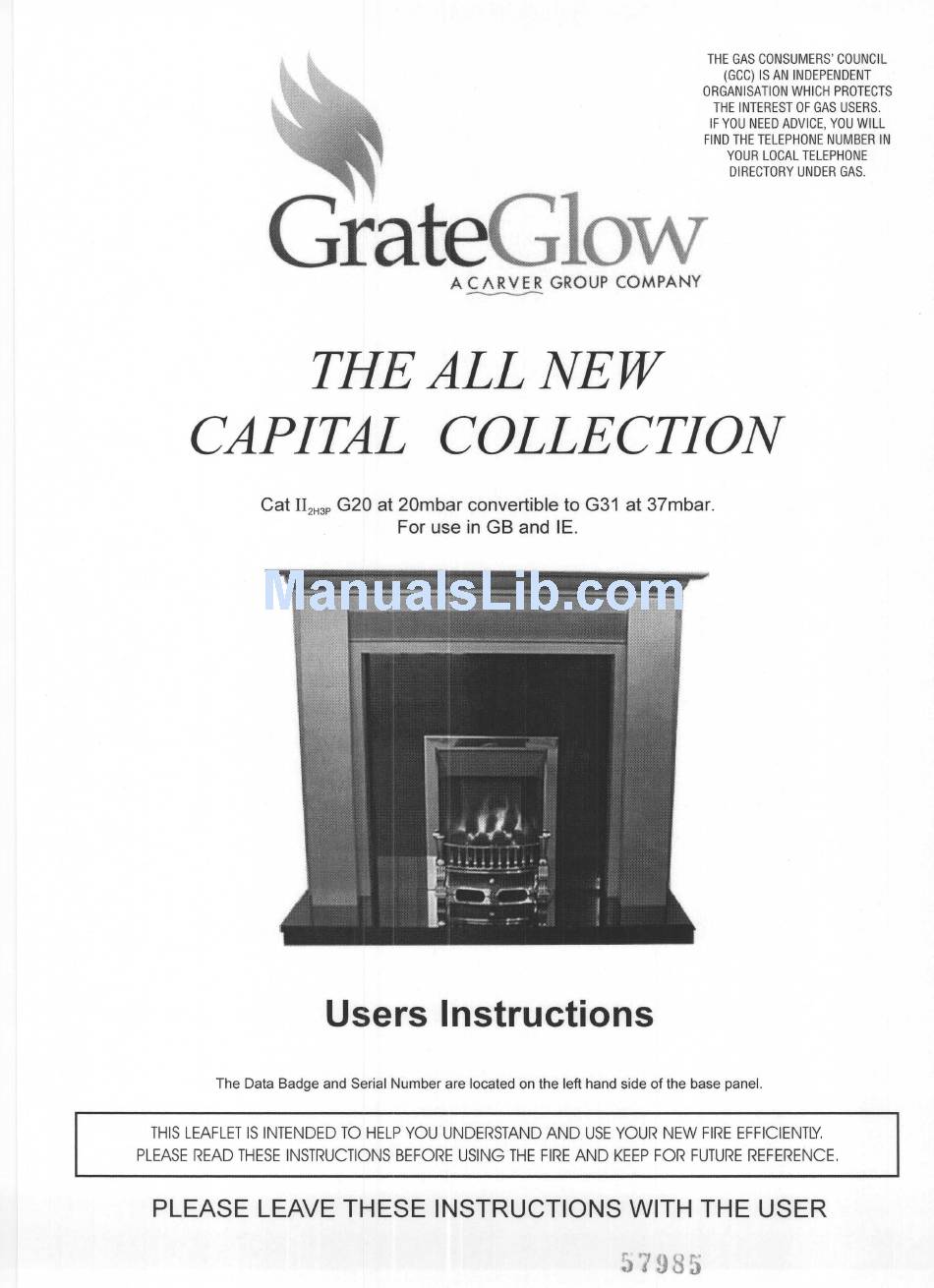

THE
GAS CONSUMERS'
COUNCIL
(GCC) IS AN INDEPENDENT
ORGANISATION
WHICH PROTECTS
THE INTEREST OF GAS
USERS.
IF YOU NEED
ADVICE,
YOU
WILL
FIND THE TELEPHONE NUMBER IN
YOUR LOCAL TELEPHONE
DIRECTORY
UNDER
GAS.
GrateGlow
A CARVER
GROUP COMPANY
--..--.........
THE ALL NEW
CAPITAL COLLECTION
Cat
II
G20
at 20mbar convertible to G31 at
37mbar.
2H3P
For use in GB and
lE.
Users Instructions
THIS LEAFLET IS INTENDED TO
HELP
YOU UNDERSTAND AND USE YOUR NEW FIRE
EFFICIENTlY.
PLEASE READ THESE INSTRUCTIONS BEFORE USING THE FIRE AND KEEP FOR FUTURE
REFERENCE,
5'7985
Advertisement
Table of Contents
Summary of Contents for GRATE GLOW 32 329 99
-
Page 1: Users Instructions
GAS CONSUMERS' COUNCIL (GCC) IS AN INDEPENDENT ORGANISATION WHICH PROTECTS THE INTEREST OF GAS USERS. IF YOU NEED ADVICE, WILL FIND THE TELEPHONE NUMBER IN YOUR LOCAL TELEPHONE DIRECTORY UNDER GAS. GrateGlow A CARVER GROUP COMPANY --..--..THE ALL NEW CAPITAL COLLECTION at 20mbar convertible to G31 at 37mbar. - Page 2 New Plmllco - GC No. 32 329 23 Available In BlacklBrass effect New Chelsea - GC No. 32 329 24 Available In Black/Chrome effect New Mayfair - GC No. 32 329 99 Available in BlacklBrass effect or Black/Chrome effect 57985...
-
Page 3: Important Notes
IMPORTANT NOTES The appliance name and serial number are on the data badge which is located on the left hand side of the fire base panel. Remove the fender and ash-pan cover for access to read the data badge. (See Figs 1and This fire must be installed and serviced regularly in accordance with the Gas Safety (Installation and Use) Regulations and the rules in force by a competent person e.g. - Page 4 TO LIGHT AND OPERATE WARNING: If the flames are found to be extinguished and the control is not in the OFF position, the control knob should be returned to the OFF position and no attempt should be made to light the gas until at least 3 minutes have elapsed.
-
Page 5: Lighting With A Taper
LIGHTING WITH A TAPER In the unlikely event of failure of the ignition spark the fire can be lit with a taper or a long spill. Remove the ash-pan and fender. should be able to see the pilot burner just below the coal bed to the left of centre (see Fig 4.). -
Page 6: Cleaning And Simple Maintenance
CLEANING AND SIMPLE MAINTENANCE Generally the fire will only need dusting. Any painted surface or metal part should be cleaned with a damp cloth only. Never use any abrasive materials or metal polish on painted surfaces or metal parts. Should any soot accumulation become excessive, the fuel effect pieces should be removed from the fire for cleaning. - Page 7 Fit the trim to the fire by hooking it over the top ofthe firebox top. Refer to Fig 9. The bottom of the trim is held in place with magnets. Push the bottom of the trim at each side onto the magnets. NOTE: If the magnet on either side came away with the trim on removal, transfer it back to the...
- Page 8 Place 4 rectangular coals onto the base coal with their decorative faces visible. They should have the front end touching the back of the fender or inline with Refer to Fig Place the 3 remaining rectangular coals resting in the 'V's just created and leaning back to rest on the rear coal.
- Page 9 NOTEPA...
-
Page 10: Spares And Service
SPARES AND SERVICE spares and service apply to your local supplier or installer stating that the appliance is a NEW PIMLlCO, CHELSEA, or MAYFAIR. The appliance Product code and Serial number are marked on the data badge on the left hand side of the base panel (remove the...
Need help?
Do you have a question about the 32 329 99 and is the answer not in the manual?
Questions and answers

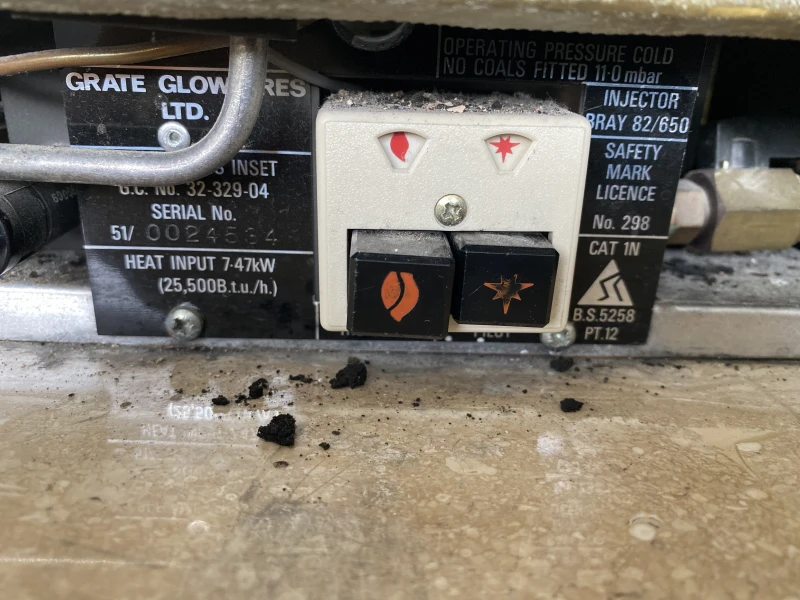

Manual for Grate Fire 32 329 04 please
