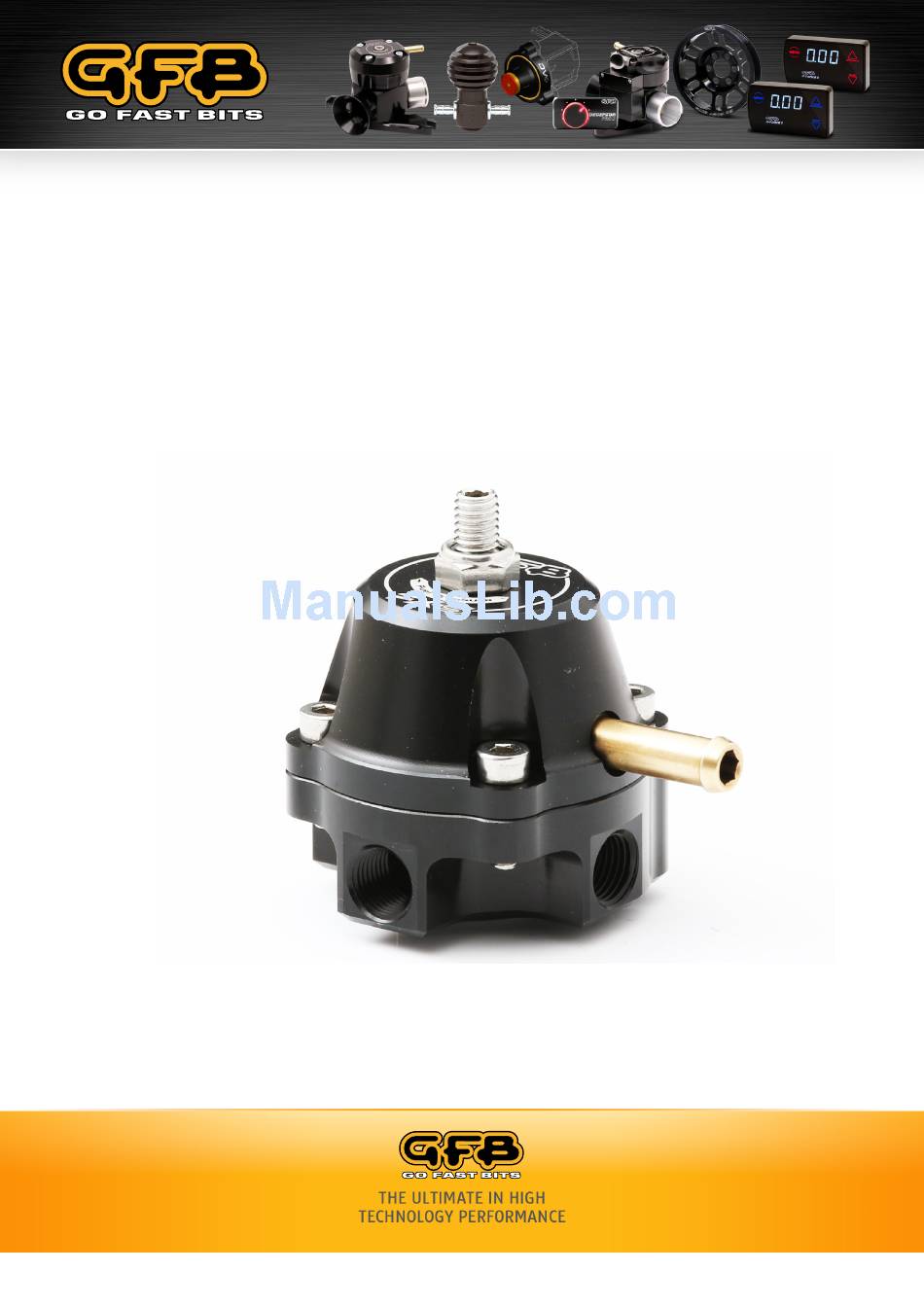

- Page 1 GFB FX-S Fuel Pressure Regulator Instruction Manual Part # 8050 HEAD OFFICE/AUSTRALIA Go Fast Bits www.gfb.com.au sales@gfb.com.au Ph: +612 9534 0099...
- Page 2 Introduction Thank you for purchasing your new GFB FX-S Fuel Pressure Regulator. Our Engineers at GFB have spent countless hours in development to ensure you have purchased the highest quality product available. The FX-S is street and race fuel safe, suitable for regular unleaded, methanol, ethanol or diesel fuels.
- Page 3 Fuel Line Configurations There are many different configurations for connecting the FX-S, some of the more common are shown below. The best setup for your car will depend on your engine (single or twin rail), the amount of space you have, whether you are using factory hoses or completely re-designing the fuel system.
- Page 4 Step 9: With no vacuum hose connected to the top of the FX-S, start your engine, and use a 3mm hex key to adjust the base fuel pressure by turning the adjustment screw. Looking from the top of the FX-S, turning the Hex key clockwise will increase fuel pressure, and anti-clockwise will reduce fuel pressure.
