Digital Cynos DCM-150 User Manual

15.0 inch tft-lcd monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
User's Manual
15.0" TFT-LCD Monitor
DCM-150
Ver 1.00E
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the DCM-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digital Cynos DCM-150

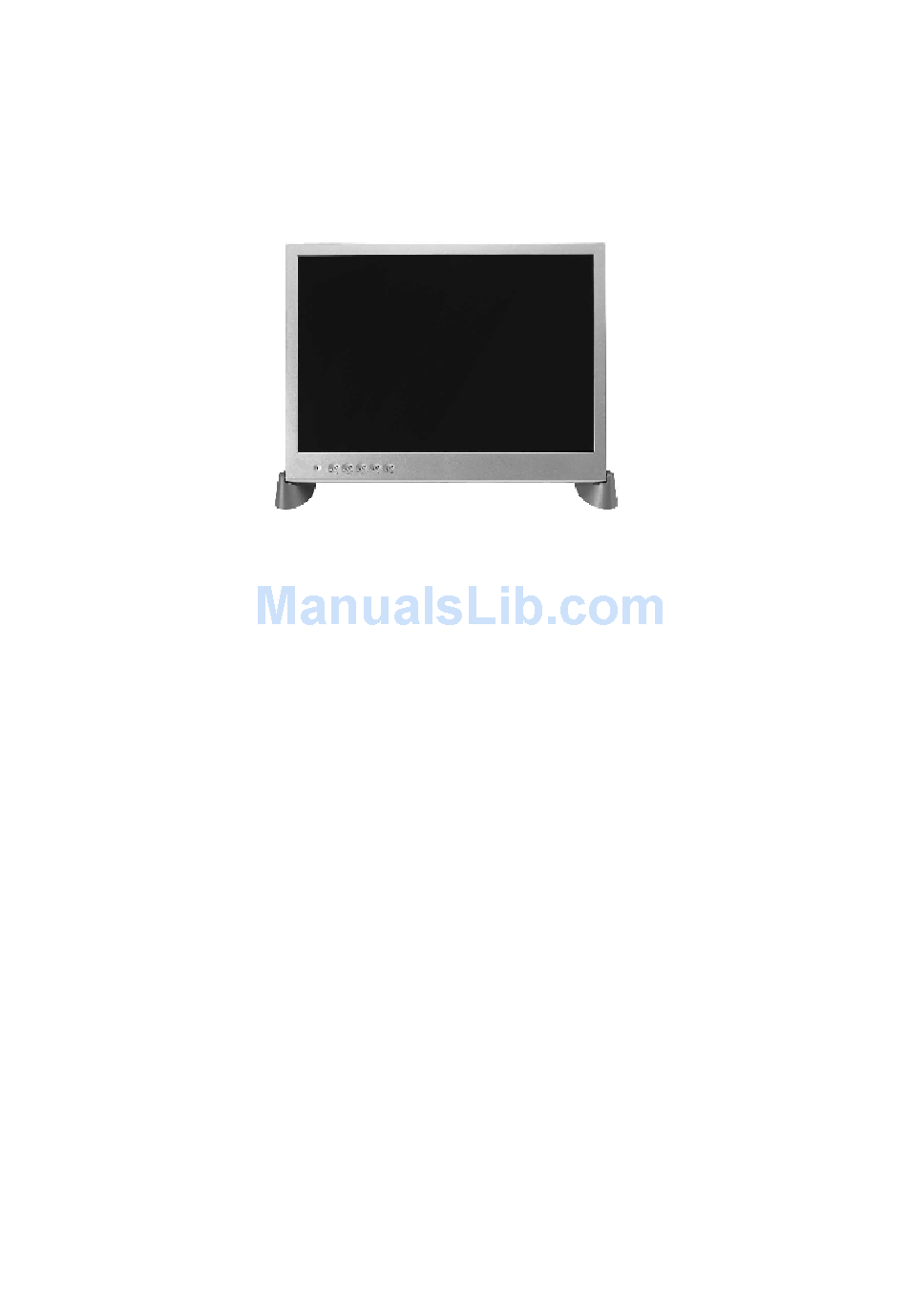

  • Page 1 User’s Manual 15.0” TFT-LCD Monitor DCM-150 Ver 1.00E - 1 -...
  • Page 2 Thank you for selecting our 15.0” TFT-LCD monitor. Please take a few minutes to read this user’s manual for the best performance of this monitor. Please keep this user’s manual for future reference. The present home appliance is certified and approved by EMC/EMI and can be used in all places including residency area.

  • Page 3: Table Of Contents

    CONTENTS 1. Safety Instructions 2. Product 1) Features ----- 2) Package Contents ----- 3) Parts ---- 4) MENU Button ---- 3. Connection 1) Analog RGB (D-Sub) & DVI Cable 2) Audio Cable 4. MENU 1) MENU 2) In / out Select 3) Auto Adjustment 4) Picture 5) Color...

  • Page 4: Safety Instructions

    1. Safety Instructions To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine ▶ Notice Mark Here is Notice mark with <Warning> & <Caution> and its meanings are as followed;...
  • Page 5 ▶ <Warning for Power - Do not use damaged or loose plug and receptacle. ◎ This may cause an electric shock or fire. - Do not touch the plug with wet hands. ◎ This may cause an electric shock. - Do not connect too many extension cords or plugs to a wall outlet. ◎...
  • Page 6 - Do not place the monitor on an unstable cart, stand, tripod, bracket or table. Otherwise, it can fall. ◎ The set can be damaged seriously if this happens. ◎ Place the set on a stable surface. - Do not place or use any inflammable spray, materials, etc near the set. ◎...
  • Page 7 - Do not remove its cover (or back). No user serviceable parts inside. ◎ This may cause an electric shock or fire. Refer servicing to qualified service personnel. ▶ <Caution> for Use - Unplug the set from the wall outlet when not being used for a long period of time. ◎...

  • Page 8: Product

    2. Product 1) Features Easy Installation It is designed light & slime, which is 1/5 size than CRT monitor and 1/2 size than normal LCD monitor. Cool Design & Easy-to-Handle It is easy to carry or use because it is designed slimmest & lightest (1.1kg) in the same class products.
  • Page 9 2) Package Contents ☞ Please make sure the following items are included with your LCD TV. If any items are missing, contact with your dealer. LCD Monitor Adapter Power Cord VGA Cable (D-Sub) User’s Manual DVI Cable (Option) Audio Cable (Option) - 9 -...
  • Page 10 3) Parts Front Stand 1. Power Button 2. Screen Control Buttons (Menu, Select, Left, Right) 3. Power Indicator 4. Power Connector (DC 12V) 5. VGA Cable (D-Sub) Connector 6. DVI Cable connector 7. Audio In Connector (Option) 8. Audio Out Connector (Option) (Earphone Jack) - 10 -...

  • Page 11: Connection

    4) MENU Button MENU Buttons functions are as follows; To access OSD MENU, press MENU button. POWER( ) : This button turns on and off. MENU You use the button to start or quit the menu mode. You can enter sub menu or return to main-menu section by this button. SELECT : Select main menu or sub menu.
  • Page 12 * SAFETY INSTRUCTIONS FOR CONNECTING CABLES 1. Please turn off the monitor before connecting cables. 2. Connect one end of the VGA cable to PC and the other to Monitor and fasten the screws. 3. DVI cable output is only available with PC(Graphic card) supports DVI output. 4.

  • Page 13: Menu

    4. MENU 1) Illustration If you press MENU button, you can see below image of OSD (On Screen Display). 1. Resolution 2. Monitor Version 3. Main MENU Icon 4. Selected Main MENU Icon 5. Sub MENU Icon 6. Selected Sub MENU Icon - Push the button of Left (◁) / Right (▷) to select main-menu.
  • Page 14 2) Input Select (PC Input Signal Selection) The monitor has dual input connector, which has one 15-pin D-sub connector and one 24-pin DVI connector. User can select input connector. The 24-pin DVI connector is for digital signal if your PC has a graphic card with DVI connector.
  • Page 15 This adjusts the image to optimum status automatically. Image & Color : Adjust the best condition of image and size of the screen. This is especially useful to adjust stable and clear display when your PC or resolution is changed. Factory Reset : This allows you to reset all the OSD control settings back to the factory settings.
  • Page 16 Sharpness : This adjusts the clarity of screen image. Color Temperature : This adjusts color temperature.. WARM 4200K -> 5000K -> 6500K -> 7500K -> 9300K COOL USER : User can adjust each of R, G, B. Flesh Tone : This adjusts tone of skin color. Hue : This adjusts screen color.
  • Page 17 Phase : It adjusts the focus, clarity and stability of image. Width : It controls horizontal image size. H. Position : It controls horizontal image position. V. Position : It controls vertical image position. 7) OSD (On Screen Display) OSD Timeout : User can select the display time of OSD. OSD H.

  • Page 18: Troubleshooting

    8) For Optimum Screen Image - You must check if all menus are adjusted properly before use, Optical Resolution : 1024 x 768 @ 60 Hz Max. Resolution : 1024 x 768 @ 75 Hz - You can find the error message of “Out of Range” when the resolution is beyond the maximum.
  • Page 19 Unable to turn on the equipment Check if the AC cord (Power cord) is plugged in correctly and retry to turn on the monitor. Plug the monitor AC cord (Power cord) off the power socket. Connect the AC cord (Power cord) again in 10 ~ 20 minutes. LED on the monitor is red flickering without image Check if the VGA cable (D-Sub) is connected to the monitor and computer correctly.

  • Page 20: Size

    6. SIZE 1) Size 334 mm 279 mm 305 mm 364 mm 24 mm 15 mm 133.4 mm 33 mm 364 mm - 20 -...
  • Page 21 2) Specification MODEL DCM-150 TYPE a-Si TFT-LCD LCD Size 15.0” (diagonal length) Resolution 1024(H) x 768(V) Pixel Pitch 0.279mm x 0.279mm Colors 6bit, 262144 Colors (16M colors by dithering) Contrast Ratio 300 : 1(Typ.) Brightness 200 cd /㎡ 304.128 mm (H) x 228.096 mm (V)
  • Page 22 3) The Standard Signal Mode If the signal from the system corresponds to the standard signal mode, the screen is adjusted automatically. However, if the signal discords with it, the screen may go blank with the power LED on or display <Out of Range> error message. Refer to the display card manual and adjust the screen as follows;...
  • Page 23 7. Others & Services 1) Important Safety instructions Please read the following instructions carefully. This manual should be retained for future use. Do not remove the cover or attempt to service this unit by yourselves. Especially, do not remove the rear cover of the unit as you can be exposed to electrical shock or any dangerous situation.
  • Page 24 2) Concerning Services For the product’s functional trouble occurred in use, client can benefit from the warranty during one year from the date of purchase. However, all services for the troubles caused by client’s erroneous use or by natural calamity will be charged even during the term of warranty validity.
  • Page 25 Digital Cynos Co., Ltd. 3-906, DaeRyung Technotown, 448, Gasan-dong Geumcheon-gu, Seoul, 153-803 Korea Tel) 82 / 2-2107-3450 Fax) 82 / 2-2107-3454 E-mail) sales@cynos.co.kr URL) www.cynos.co.kr - 25 -...
