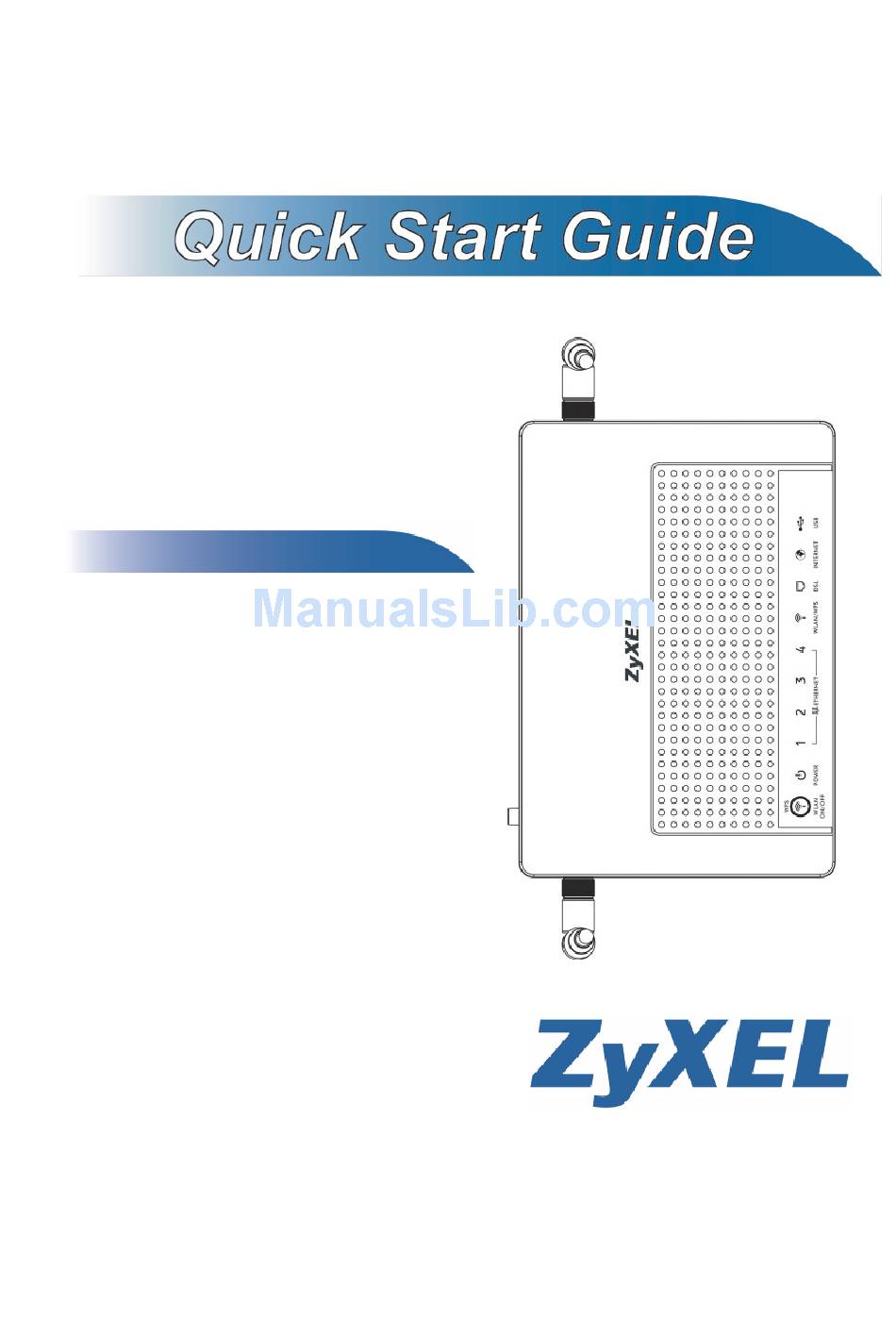

P-661HNU-Fx
802.11n Wireless ADSL2+ 4-port
Security Gateway
Firmware V3.10
Edition 1, 9/2010
DEFAULT LOGIN DETAILS
IP Address:http://192.168.1.1
User Login:User Name: user
Administrator
Login:
www.zyxel.com
Password: 1234
User Name: admin
Password: 1234
Copyright 2010
ZyXEL Communications Corporation
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ZyXEL Communications P-661HNU-Fx
Summary of Contents for ZyXEL Communications P-661HNU-Fx
- Page 1 P-661HNU-Fx 802.11n Wireless ADSL2+ 4-port Security Gateway Firmware V3.10 Edition 1, 9/2010 DEFAULT LOGIN DETAILS IP Address:http://192.168.1.1 User Login:User Name: user Password: 1234 Administrator User Name: admin Login: Password: 1234 Copyright 2010 ZyXEL Communications Corporation www.zyxel.com...
- Page 2 Device Panels...
- Page 3 USB compatible storage device, or inserting a 3G wireless adapter to access the internet through a 3G network. The P-661HNU-Fx can also function as a print server. Requirements Make sure you have the following things before you start.
-
Page 4: Hardware Connections
Hardware Connections Remove the P-661HNU-Fx’s plastic cover before using it. 1. DSL: Use a telephone wire to connect this port to a telephone jack (or the DSL or MODEM jack on a splitter, if you have one). 2. ETHERNET: Use an Ethernet cable to connect a computer to one of these ports for initial configuration and/or Internet access. - Page 5 5. Push the power button to the on position. Look at the LEDs (lights) on the top panel of the P-661HNU-Fx. • The POWER light blinks during start-up and is green once the P- 661HNU-Fx is ready.
-
Page 6: Set Up A Wireless Network
661HNU-Fx off, wait for a few seconds and turn it back on. If the LEDs are still off, contact your local vendor. If you want to have the P-661HNU-Fx use 3G as your WAN or as a backup when the DSL connection fails, see your User’s Guide for how to use the Network Setting >... - Page 7 PIN (Personal Identification Number) into the configuration screen of the P-661HNU-Fx. See PIN Configuration on page 8. You must use the same method on the P-661HNU-Fx and the wireless client. Push Button Configuration 1. Place a WPS-enabled device that is installed in your system and supports the WPS Push Button method within range of the P- 661HNU-Fx.
- Page 8 2. Press the WLAN button on the P-661HNU-Fx’s top panel for five seconds. 3. Use the WPS-enabled device’s WPS button. It can be either a button in the utility or a physical button. See the device’s documentation if you cannot locate the WPS button. It doesn’t matter which button is pressed first.
- Page 9 Register in the P-661HNU-Fx web configurator screen. 7. The P-661HNU-Fx and the other WPS-enabled device establish a secure connection. This can take up to two minutes. 8. Congratulations! Your computer is now ready to connect to the...
- Page 10 1. Right-click the wireless adapter icon which appears in the bottom right of your computer monitor. Click View Available Wireless Networks. 2. Select the P-661HNU-Fx’s SSID name and click Connect (A). The SSID “SecureWirelessNetwork” is given here as an example.
- Page 11 Congratulations! Your computer is now ready to connect to the Internet wirelessly through your P-661HNU-Fx. If you cannot connect wirelessly to the P-661HNU-Fx, check you have selected the correct SSID and entered the correct security key. If that does not work, ensure your wireless network adapter is enabled by clicking on the wireless adapter icon and clicking Enable.
-
Page 12: The Web Configurator
The Web Configurator 1. Open your browser and enter http://192.168.1.1 (the P-661HNU-Fx's default IP address) as the address. 2. For administrator login, enter username admin and password 1234 (default). For user login, enter user as the username and 1234 as the password. -
Page 13: Usb File Sharing
P-661HNU-Fx and available for sharing. • Enable the file sharing feature. • Browse to your files using the IP address of the P-661HNU-Fx. Configure USB File Sharing 1. Click Network Settings > Home Networking > File Sharing. - Page 14 Browse to the USB File Share 1. In Windows Explorer’s Address bar type a double backslash “\\” followed by the IP address of the P-661HNU-Fx (192.168.1.1 is the default) and hit [ENTER]. 2. The files on the USB file sharing device connected to the P-661HNU- Fx are now part of your file structure and you can manage those files just like any other files on your computer.
- Page 15 ACTA. On bottom of this equipment is a label that contains, among other information, a product identifier of P-661HNU-Fx(x stand for 1 or 3) .If requested, this number must be provided to the telephone company. 2 If this equipment DL causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required.
- Page 16 4 If you experience trouble with this equipment, you disconnect it from the network until the problem has been corrected or until you are sure that the equipment is not malfunctioning. 5 Please follow instructions for repairing if any (e.g. battery replacement section);...
- Page 17 2 Increase the separation between the equipment and the receiver. 3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4 Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement .
- Page 18 example, 110V AC in North America or 230V AC in Europe). . Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord. .
