Related Manuals for floorex METEOR 250 MKII
Summary of Contents for floorex METEOR 250 MKII

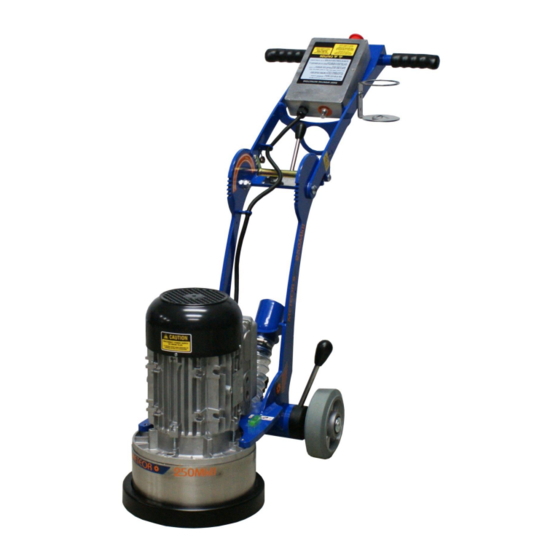

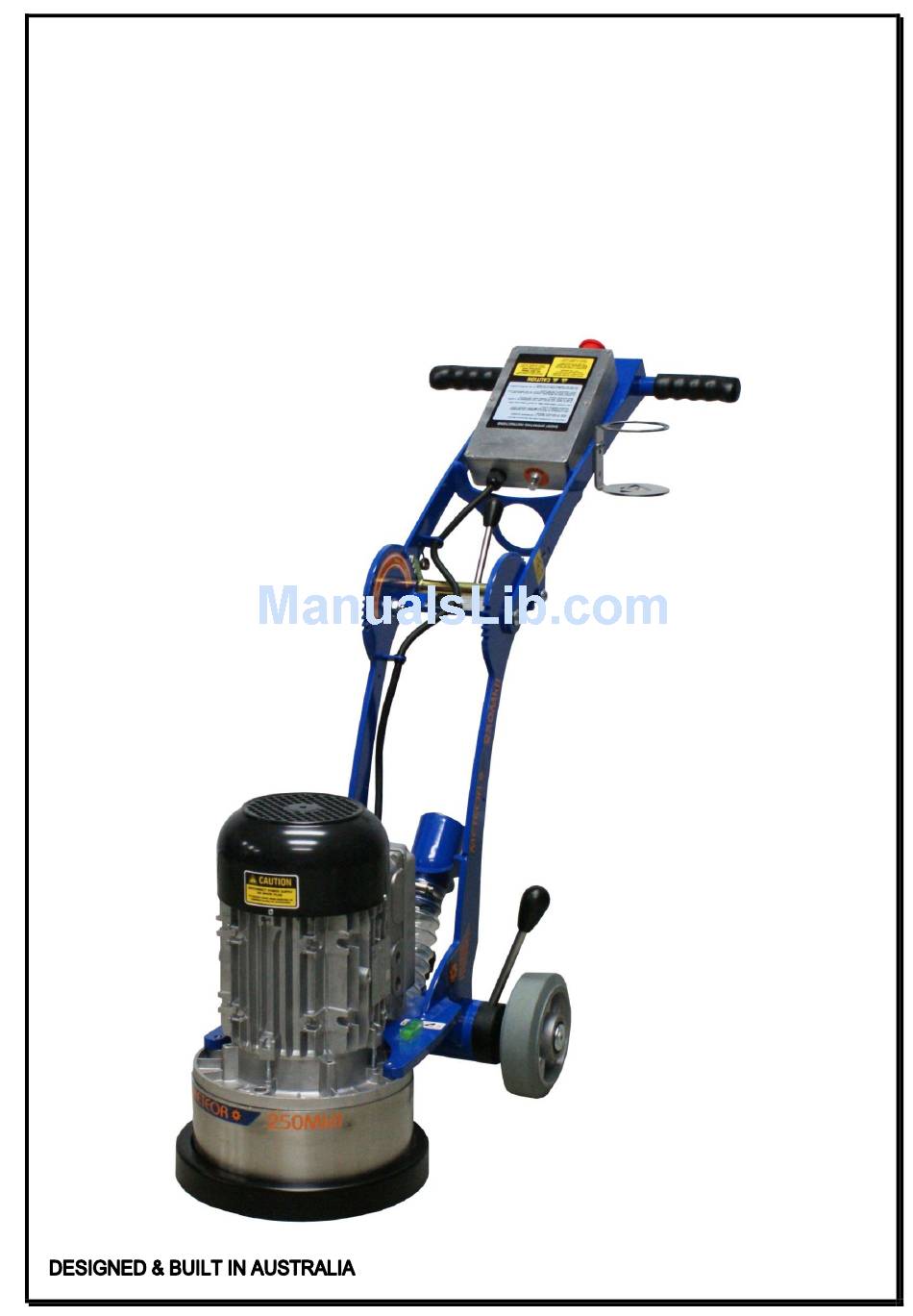

- Page 1 METEOR 250 MKII SAFETY & OPERATORS MANUAL & PARTS LISTING CAUTION: Read the instruction manual before using the appliance. V250915...
-
Page 2: Table Of Contents
Meteor 250 MkII Table of Contents Specifications Safety instructions Safety instructions Operating instructions Operating instructions Operating instructions Handle positions Axle height adjustment Axle height adjustment Axle height adjustment Axle height adjustment Electrical safety Problem solving Diamond tooling selection guide Diamond tooling selection guide... -
Page 3: Specifications
Meteor 250 MkII Specifications Meteor 250 MkII Weight 52kg Dimensions 401 x 908 x 1060 (width x Height x Length) Rated Voltage 230 Volt 50 Hz Rated Watts 2200W Grinding Path 250mm FLOOREX- 1800 1800 356 673... -
Page 4: Safety Instructions
Meteor 250 MkII Safety instructions Read and understand the instructions on the machine and in this manual and engine manual (if applicable). Different models may have different parts and controls. Equipment should only be operated by trained personnel, in good physical condition and mental health (not fatigued). -
Page 5: Safety Instructions
Meteor 250 MkII Safety instructions Do not modify machine in any way. Only use genuine METEOR 250 MKII parts and accessories. Repairs should be performed by qualified persons only. Ensure parts have stopped moving and disconnect power or spark plug when servicing or changing blades or accessories. -
Page 6: Operating Instructions
(Do not engage this button when shaft is still rotating). Install appropriate diamond tooling or other available tooling into the machine. Only use genuine METEOR 250 MKII tooling. Failure to comply could result in bodily injury. Tooling fitted to this machine must not exceed 30mm high from Face of segment to the face against the machine boss. -
Page 7: Operating Instructions
4mm² cable for up to 50 meters. Connect a suitable dust extractor to the machine via a 5omm flexible hose. The machine is designed to take the standard FLOOREX 50mm hose ends to make connection of dust extractors easy and hassle free. -
Page 8: Operating Instructions
After a few minutes of grinding check the wear of the diamond tooling. This will pay handsomely if the diamonds are wearing out fast due to soft concrete / abrasive concrete. FLOOREX has a wide range of diamonds to suit every need. See page 12 and 13 for a guide. -
Page 9: Handle Positions
Meteor 250 MkII Handle positions STORAGE AND LIFTING MODE TOOLING MODE OPERATING MODE FLOOREX- 1800 1800 356 673... -
Page 10: Axle Height Adjustment
This assures the longevity of the coupling life and gives the nicest position for ease of use. (Assuming the floor is level) Damage to the METEOR 250 MKII from neglecting this step is easily diagnosed and could VOID THE WARRANTY! 1800 356 673... -
Page 11: Axle Height Adjustment
Meteor 250 MkII Axle height adjustment FLOOREX- 1800 1800 356 673... -
Page 12: Axle Height Adjustment
Meteor 250 MkII Axle height adjustment 1800 356 673 1800 - FLOOREX... -
Page 13: Axle Height Adjustment
Meteor 250 MkII Axle height adjustment FLOOREX- 1800 1800 356 673... -
Page 14: Electrical Safety
WARNING - The METEOR 250 MKII has an overload switch and will trip when under excessive load and will not allow the machine to be switched on if it is overloaded. (Overload will need to be reset when safe to do so). -
Page 15: Problem Solving
Meteor 250 MkII Problem solving Diamond Grinding has many variables. When you understand some of these, you can solve many problems without a lot of bother and expense. PROBLEM CAUSE REMEDY WHAT IS IT DOING? Machine will not No power is present at... -
Page 16: Diamond Tooling Selection Guide
Meteor 250 MkII Diamond tooling selection guide ST10-S08016 8 Segment Diamond Wheel For Hard Concrete / Soft Matrix Color - Black Grit Size - 16# 10mm Segment ST10-S03016 3 Segment Diamond Wheel For Very Hard Concrete / Soft Matrix Color - Grey... -
Page 17: Diamond Tooling Selection Guide
Meteor 250 MkII Diamond tooling selection guide ST10-H09030 9 Segment Diamond Wheel For Medium to Soft Concrete - Hard Matrix Color - White Grit Size - 30/40# 10mm Segment ST10-S03030 3 Segment Diamond Wheel For Very Hard Concrete - Soft Matrix... -
Page 18: Parts Diagram - Electrical
Meteor 250 MkII Parts Diagram - Electrical MET-002 MET-003 MET-002 MET-001 G3-049 MET-005 1800 356 673 1800 - FLOOREX... -
Page 19: Parts Diagram - Main
Meteor 250 MkII Parts Diagram - Main FLOOREX- 1800 1800 356 673... -
Page 20: Parts List - Main
Meteor 250 MkII Parts List – Main Items Marked with * are optional extras MET-022 MET-006 MET-036 MET-004 MET-032 MET-024 MET-031 MET-030 MET-130 MET-072 MET-044 & MET-144 MET-009 MET-007 Handle Spacer 41mm OD MET-008 MET-043 / ‘T’ Handle MET-067 MET-058... - Page 21 Meteor 250 MkII Parts Diagram Shroud MET-031 FS-252 MET-034 MET-020 MET-020 FLOOREX- 1800 1800 356 673...
-
Page 22: Parts Diagram - Old Coupling (For Older Models Only)
Meteor 250 MkII Parts Diagram - Old Coupling (for older models only) 1800 356 673 1800 - FLOOREX... -
Page 23: Parts Diagram - Spider Coupling
Meteor 250 MkII Parts Diagram - Spider Coupling MET-090 Spider coupling Element 18mm Thick MET-093 Spider coupling Element 15mm Thick MET-094 MET-091 FS-308 Bolt M14 X 40 ZP Spider coupling Element 10mm Thick MET-095 MET-092 FLOOREX- 1800 1800 356 673... -
Page 24: Parts Diagram - Ravel Motor
Meteor 250 MkII Parts Diagram - Ravel Motor MET-126 MET-120 MET-122 MET-125 MET-124 MET-032 G3-036 MET-066 1800 356 673 1800 - FLOOREX... -
Page 25: Parts Diagram - Lafert Motor (If Fitted)
Meteor 250 MkII Parts Diagram - Lafert motor (If Fitted) FLOOREX- 1800 1800 356 673... -
Page 26: Wiring Diagram
Meteor 250 MkII Wiring Diagram 1800 356 673 1800 - FLOOREX... - Page 27 Meteor 250 MkII FLOOREX- 1800 1800 356 673...
- Page 28 Meteor 250 MkII Floorex Products Your complete supplier of all your concrete surface preparation needs Diamond grinders Dust extraction Shotblasters Screed mixers Diamond Tooling Floor Scrapers Coating application FLOOREX PRODUCTS 11 Jennings Road Swan Hill VIC.
