電動滑板車

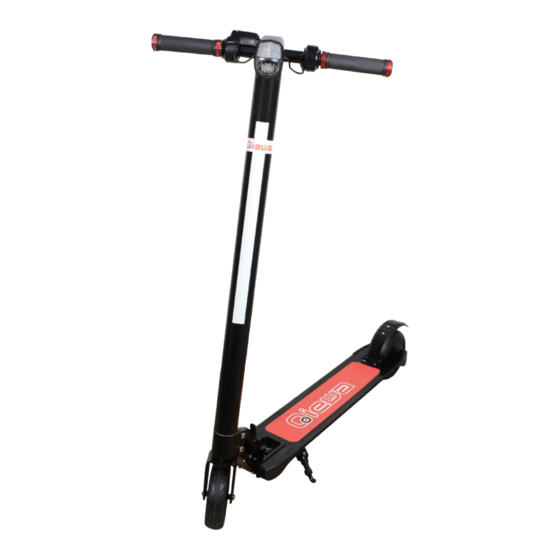

Royal Wing ELECTRIC SCOOTER

使用說明書

User Manual

Ansbo Industrial Co., Ltd

Table of Contents

Need help?

Do you have a question about the Q3 Royal Wing and is the answer not in the manual?

Questions and answers

Summary of Contents for Qiewa Q3 Royal Wing

Page 2: Table Of Contents
目錄 Table of Contents 功能圖 SAFETY WARNINGS GENERAL WARNIN 車體摺疊與展開說明 ACCEPTABLE RIDING PRACTICES AND CONDITIONS 電量及速度顯示說明 PROPER RIDING ATTIRE 油門與煞車控制 BEFORE YOU BEGIN 行駛注意事項 KNOWING THE ELECTRIC SCOOTER 如何行駛 KNOWING THE MONITOR 安全行駛與注意事項 FOLDING AND UNFOLDING HOW TO RIDE 注意事項 SAFETY PRECAUTIONS 日常維護與保養...
Page 3 THANK YOU FOR CHOOSING ELECTRIC SCOOTER! Before operating the electric scooter, read this User's Guide for the proper instruction on use and care of the scooter! CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lighting flash and arrow CAUTION: TO REDUCE THE RISK OF The exclamation point head with in the triangle is ELECTRIC SHOCK DO NOT REMOVE...
Page 4: Safety Warnings
SPECIAL WARNING: MUST BE USED BY A PERSON OF MORE THAN 12 YEARS! ★Please wear appropriate protective equipment to avoid injury to yourself Always wear safety equipment such as a helmet, knee pads and elbow pads. Always wear a helmet when riding your Scooter and keep the chinstrap securely buckled.
Page 5 ▲ Always wear safety equipment such as a helmet, knee pads and elbow pads. Always wear a helmet when riding your Scooter and keep the chinstrap securely buckled. ▲ Always wear shoes. ▲ Ride on smooth, paved surfaces away from motor vehicles. ▲...
Page 6: Acceptable Riding Practices And Conditions
ACCEPTABLE RIDING PRACTICES AND CONDITIONS - Direct parental supervision is required. Scooters are meant to be used only in controlled environments free of potential traffic hazards and not on public streets. - Do not allow your child to ride a Kick Scooter in any areas where vehicle traffic is present.
Page 7: Before You Begin
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGSFURTHER INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISKAND WITH APPROPRIATE AND SERIOUS ATTENTION TO SAFE OPERATION. USE CAUTION. WARNING: ALWAYS INSPECT THE SCOOTER PRIOR TORIDING. - Properly inspecting and maintaining your scooter can reduce the risk of injury. - Always inspect your scooter before riding and regularly maintain it.
Page 8: Knowing The Electric Scooter
KNOWING THE ELECTRIC SCOOTER Headlight Monitor Brake Accelerator Light Switch Charging Port Battery Tank Folding Button Front Wheel Fender and Brake Foot Pedal Motor Rear Wheel...
Page 9: Knowing The Monitor
KNOWING THE MONITOR Power ON/OFF button. Press + - to switch speed level. (Economical speed,normal speed, maximum speed). ：Battery Indicators The five bars are indicator of the battery left. F means the battery is fully charged. E means there is ≦ 20% battery, you need to charge the battery. Under this status, the scooter shall only run on the flat road, shall not go climbing, not move faster &...
Page 10: Folding And Unfolding
FOLDING AND UNFOLDING Unfolding 1. Press and hold the Folding Button (1) 2. Pull handlebars upward until steering tube is locked into place. 3. Unfolding complete when you hear a noise. Important note: Unless you hear a noise of click, otherwise it may not complete, you need to try again.
Page 11 Folding 1. To release the folding mechanism, hold the T-bar with one hand and place one foot on the deck plate, press the Folding Button (1) downward. 2. Press the upper part of the scooter downwards (Make sure the it's complete down). 3.
Page 12: How To Ride
HOW TO RIDE IMPORTANT NOTICE - Please wear safety equipment all the time during the driving training. - Please ride the scooter in open and flat area for first time rider. 1. Folded the support stand. 2. Switch the Scooter on by press the power button 2 seconds. 3.
Page 13: Safety Precautions
SAFETY PRECAUTIONS ▲ Please take off when the low battery alarm is ringing to ensure safety. ▲ Don't lift the scooter from the wheels to avoid finger pinching between the wheel and the fender. ▲ Please check the scooter carefully every time before riding. Please do not ride the scooter if loose or damaged parts are found.
Page 14: Charging
Charging ▲ Ensure the charging port is dry. ▲ Plug the power adapter into the DC power port of the kick scooter and a standard power outlet. Make sure the red indicator on the adaptor lights up. ▲ When the red indicator lights on, the charger indicates charging properly, otherwise check if the line is connect properly.
Page 15 Wheels and Bearings Under normal circumstances and conditions, scooter wheels and wheel bearings are maintenance free. Nonetheless, it is the responsibility of the owner guardian to periodically inspect the wheels for wear and tear, the axle for proper tightness, and bearings for side-to-side and parts.
Page 16: Specifications
SPECIFICATIONS Folding Size 103*45*25cm Size Unfolding Size 92*45*99cm Net Weight 8.5kg Max Load 150kg Loading Minimum Load 20kg Climbing Capacity max.20ﾟ 0ﾟ Radius of Turning Circle 25Kms/H (Distance various depending Maximum Speed on terrain,driving style and load) Resistance to water Yes - Standard IP54 Engine Electric engine 250W...
Page 17 We certify that the power supply is used as a device for disconnecting the power distribution network, which should stay easily accessible. DETAILS AND PRECAUTIONS ON THE USE OF BATTERIES - Discard a used battery in nature or garbage pollutes and prevents the recovery of recyclable materials.
Page 18 - Never try to short-circuit the battery terminals. - Never dispose of batteries in fire, they might explode. - Charging of batteries is to be performed by an adult. - Remove batteries from the device before reloading. - We recommend an adult to supervise children when they change the batteries so that these instructions are complied with or to make himself the replacement of batteries.
Page 19 功能圖聚焦LED燈電量及速度顯示器電子煞車油門鍵聚焦LED燈開關充電孔電池摺疊卡榫前輪擋泥板/特製腳煞防滑踏板後輪驅動電機...
Page 20 車體摺疊與展開說明摺疊說明 1. 用手將卡榫壓下，如(1)圖示 2. 將車頭擺正向下 ※注意:車頭請務必擺正 3. 聽到〝卡〞聲後完成摺疊展開說明 1. 用手將卡榫壓下，如(1)圖示 2. 將車頭向上扶起 3. 聽到〝卡〞聲後完成展開...
Page 21 電量及速度顯示說明電源鍵：短按即可開/關機。換檔鍵：短按 + - 即可改變車速狀態。按 + 是提高車速，按 - 是降低車速。檔位介紹：【ECO】節能模式 15KM/H 【NOR】正常模式 20KM/H 【MAX】高速模式 25KM/H 電量顯示：F 表示電量已充滿。 E 表示電量已用完，請立即充電。...
Page 22 油門與煞車控制油門鍵：電源開啟時，於靜止狀態油門無作用需將車子向前滑行一定速度時，油門鍵始可啟動。煞車方式為電子煞車。煞車鍵按下角度越大，剎車力度越大。煞車時，油門鍵不會起作用。注意：開機前請先鬆開油門與煞車。注意：當定速巡航模式啟動時遇到緊急危險請按煞車鍵加腳煞，請勿雙腳直接跳車而造成危險。...
Page 23 行駛注意事項行駛時有摔倒受傷的風險，請全程配戴護具。遇到較差路況時，請減速慢行或下車推行。禁止急加速和急停。如何行駛步驟一. 開機 (長按2秒)，此時速度默認為ECO節能模式，可按上下鍵切換檔位。步驟二. 行駛前，務必把折疊板向上固定，避免騎行發生危險。步驟三. 雙手緊握手把單腳上踏板，另一隻腳滑踩地向前推行，使車子向前滑行，此時即可啟動油門鍵。...
Page 24 安全行駛與注意事項禁止未成年人使用 (如需使用建議成年人陪同)。禁止多人乘載。禁止於行駛過程中做危險動作或單手騎乘。禁止於行駛中關閉電源。禁止騎行 Q3上下台階和自動手扶梯。禁止於超過 2公分的積水中騎行。禁止在易滑路面上騎行。電量燈警示亮起，請勿騎行並立即充電。...
Page 25 注意事項行駛前需檢查電力是否充足，車輛是否有異常和鬆動。禁止在雨天騎行。不建議 12歲以下的兒童學習和騎行。請避免急加速和急減速。勿過度前傾和後仰身體而造成行駛危險。當行駛中電量不足時，請保持低速騎行並且盡快充電。若有摔倒風險，請以保護人身安全為主。行駛時請勿將手插在口袋裡，以防突發狀況而措手不及。請勿從輪胎處搬起 Q3，以免手指卡在輪胎與外殼之間而造成傷害。注意：請緩慢加速，突然加速很容易使 Q3失去平衡，導致騎行者摔倒與受傷。...
Page 26 日常維護與保養如車體表面出現汙漬時，使用乾淨的抹布沾少量清水擦拭即可，如出現難以清洗的污漬，可使用牙膏塗抹，並使用牙刷反覆刷洗後，再使用濕布擦拭。注意：勿使用酒精、汽油、煤油或其他有腐蝕性、發揮性的化學溶劑清洗，否則將嚴重損壞車體的外觀和內部結構。禁止使用壓力水槍清洗。清洗時確保車體為關機狀態、拔掉充電線並確定充電橡膠塞塞緊，否則可能觸電或內部進水導致嚴重故障。不使用時，盡量將車體放置於室內乾燥環境。曝曬及過冷的戶外環境都會加速輪胎及電池的老化及使用壽命。注意:非專業人員禁止隨意拆卸電池組，以免造成危險。...
Page 27 不屬於保固範圍之條件未按照使用說明書使用產品，保養造成任何的毀損。產品超出保固期限。無保固或發票。超載及進行極限運動等所造成的損壞。客戶寄出迴返途中由於運輸，裝卸所導致的損壞。使用後產品外觀損傷不屬於保固範圍內。其他非產品本身設計、技術、製造、品質等問題而導致的故障或損壞。自行拆解車體內部架構如電池、輪胎、電機、燈座之部件。自行更換非原廠所附之配件如電池、輪胎、電機、燈座等。請勿使用非原廠所附帶的變壓器充電。如停放於戶外處導致下雨進水、人為因素進水或曝曬過導致使電池及電機受損均不屬保固範圍內。...
Page 28 參數主要參數尺寸展開尺寸：92*45(手把寬度)*99cm 最快時速：約25km 折疊尺寸：103*45(手把寬度)*25cm 續航里程：約25km (因人體重力及環境因素而影響里程、時速) 質量防水等級：IP54 最大承載：150kg 爬坡角度：20° 產品重量：8.5kg 車身材質：鋁合金輪胎尺寸：6吋電池組參數輪胎類型：實心胎電壓：24v 煞車系統：電子煞車、後腳煞容量：4400mAh 車身折收：1秒快速折收電池：進口鋰電池電機參數功率：250w 輸入電壓：24v 充電器參數輸出電壓：29.4v 充電時間：約2.5小時...
Page 29 w w w. q i ew a - te c. c om...
Page 30 Ansbo lndustrial Co.,Ltd 安視保國際實業有限公司...
