Summary of Contents for A4Tech PowerSaver R7 RKS-6&R7-70MD

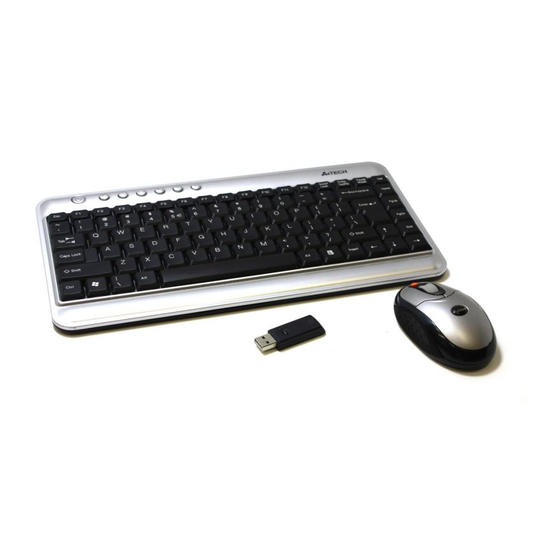

- Page 1 PowerSaver R7 Wireless Desktop User’s Guide Model: RK（S）-6&R7-70MD，RK（S）-6&R7-70D，RK（S）-8&R7-70D www.a4tech.com...
- Page 2 PowerSaver R7 Wireless Optical Mouse THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
- Page 3 PowerSaver R7 Wireless Optical Mouse INTRODUCTION Congratulations on your purchase! Congratulations on your purchase! PowerSaver R7 Wireless Desktop is the optimal high science products for power & desktop space saving. Its innovative lightweight, mini & thin wireless keyboard design gives you a consistent desktop look as well as an amazingly high level of comfort.
- Page 4 PowerSaver R7 Wireless Optical Mouse System Requirements: To use the mouse presenter, your computer must meet the following hardware requirements and run one of the operating system listed below. Hardware 1. IBM or compatible system 2. UBS v1.1 or higher interface 3.
-
Page 5: Inserting The Batteries
PowerSaver R7 Wireless Optical Mouse Inserting the Batteries Install 2 AAA alkaline（or rechargeable batteries）in the wireless keyboard. Remove the battery compartments cover on the bottom of the keyboard by squeezing the cover in front the tab to release it. Insert the batteries; make sure to properly orient the positive (+) and the negative (-) ends as specified by the battery compartment labels. -
Page 6: To Connect The Receiver
PowerSaver R7 Wireless Optical Mouse Step1 Step2 Step3 To connect the receiver Insert the Receiver USB port connector into the available computer USB port. You can choose anyway to connect the USB receive with computer as blow: For PC computer usage: 1. - Page 7 PowerSaver R7 Wireless Optical Mouse 2. Insert the USB receives mouse port connector into the USB HUB port. Locating the USB RF-Mouse Receiver Your RF-Mouse has limitations on the range or distance from its receiver. To make sure that your mouse sends and receives properly, refer to the following instructions: 1.
- Page 8 PowerSaver R7 Wireless Optical Mouse Operating Hints: For optimal performance and RF reception: 1. Avoid suing the mouse on a metal surface, Metals, such as iron, aluminum or copper, shield the radio frequency transmission and may slow down the mouse’s response time or cause the mouse presenter to fail temporarily. 2.
- Page 9 PowerSaver R7 Wireless Optical Mouse 2. Wireless Keyboard : Respond frequency channel and ID code from Receiver Press and release (1 second) the (Frequency Button) orange connect button on the bottom of keyboard The RED PWR LED light of USB RF Receiver turns “Off” and starts “Blinking with right frequency channel and ID code.
-
Page 10: Power Management
PowerSaver R7 Wireless Optical Mouse Wireless optical mouse : Respond frequency channel from Receiver and ID code Press and release (1 second) the orange connect button on the bottom of mouse, The RED PWR LED light of USB RF Receiver turns “Off” and starts “Blinking with right frequency channel and ID code . -
Page 11: Low Battery Warning
PowerSaver R7 Wireless Optical Mouse Power Management Manual Power on/off method 1. To power the mouse on, please press and release the switch bottom of the mouse within in 1 second. 2. Turn off the mouse while traveling or when you don’t use it. Please press and release the switch bottom of the mouse within 4 seconds. - Page 12 PowerSaver R7 Wireless Optical Mouse Practical electrical current usage text sheet (on white paper) Battery Voltage (V) Use Electrical Current (mA) Intelligent 4 Power-Saving ( )： SLEEP MODE There are 4 sleep mode features activating PowerSaver mouse Mouse status Enter Sleep mode Electrical Current usage(mA) Savable electricity(mA) 200 milliseconds...
- Page 13 PowerSaver R7 Wireless Optical Mouse How to install 2X-Office Software **** For Windows 98/ME/2000/2003/XP/X64 MUST: Please uninstall any previous mouse driver before installing the 2X-OFFICE MUST: Make sure you have completely finished setting up your mouse Insert the included Compact Disc (CD) into your CD-ROM choose your mouse model and click”...
-
Page 14: Section I: Button Assignment
PowerSaver R7 Wireless Optical Mouse How to program your mouse bottoms? Open your Mouse Properties. First Tab: Button Section I: Button Assignment 1. The mouse image that appears in the first section is a key to numbers listed to the right. For example，... -
Page 15: Section Ii: Double-Click Speed
PowerSaver R7 Wireless Optical Mouse for convenient shortcut #4 、#5 buttons can be set as either regular programmable buttons or Office-Button functions. The 4 and 5 the coupling button to makes shortcut command from Office-jump such as “OPEN, CLOSE”; “DELETE, REPLY”, “ZOOM IN, ZOOM OUT”…etc. - Page 16 PowerSaver R7 Wireless Optical Mouse Learn how to use the “Office Button Options 1. There are 2 ways to open the “Office-Button” menu (right) ● Click the “Office-Button Option” in the Mouse Properties ● Click 6th Button located on your physical Mouse Body and will bring you the small picture: Once you click on A4 company logo, you will see the Office Button menu like the figure on the right big...
- Page 17 PowerSaver R7 Wireless Optical Mouse When you are in Microsoft Word After selected Office Command set No.1 - Copy-Paste . You can adjust your paragraph length or edit sentences with simply two clicks. Instead of looking for copy icon and paste icon in the MS Word or Ctrl+C and Ctrl+V on the Keyboard.
-
Page 18: Default Functions
Windows OS. You have to establish the iKeyWorks to enable the Hotkeys in Windows98 OS. Through A4 download web page : http://www.a4tech.com/en/download1.asp to download the keyboard driver. Double click the Winzip driver file then click “ I Agree” to open the file and start to install .
