Summary of Contents for INNOVIEW INV-17W

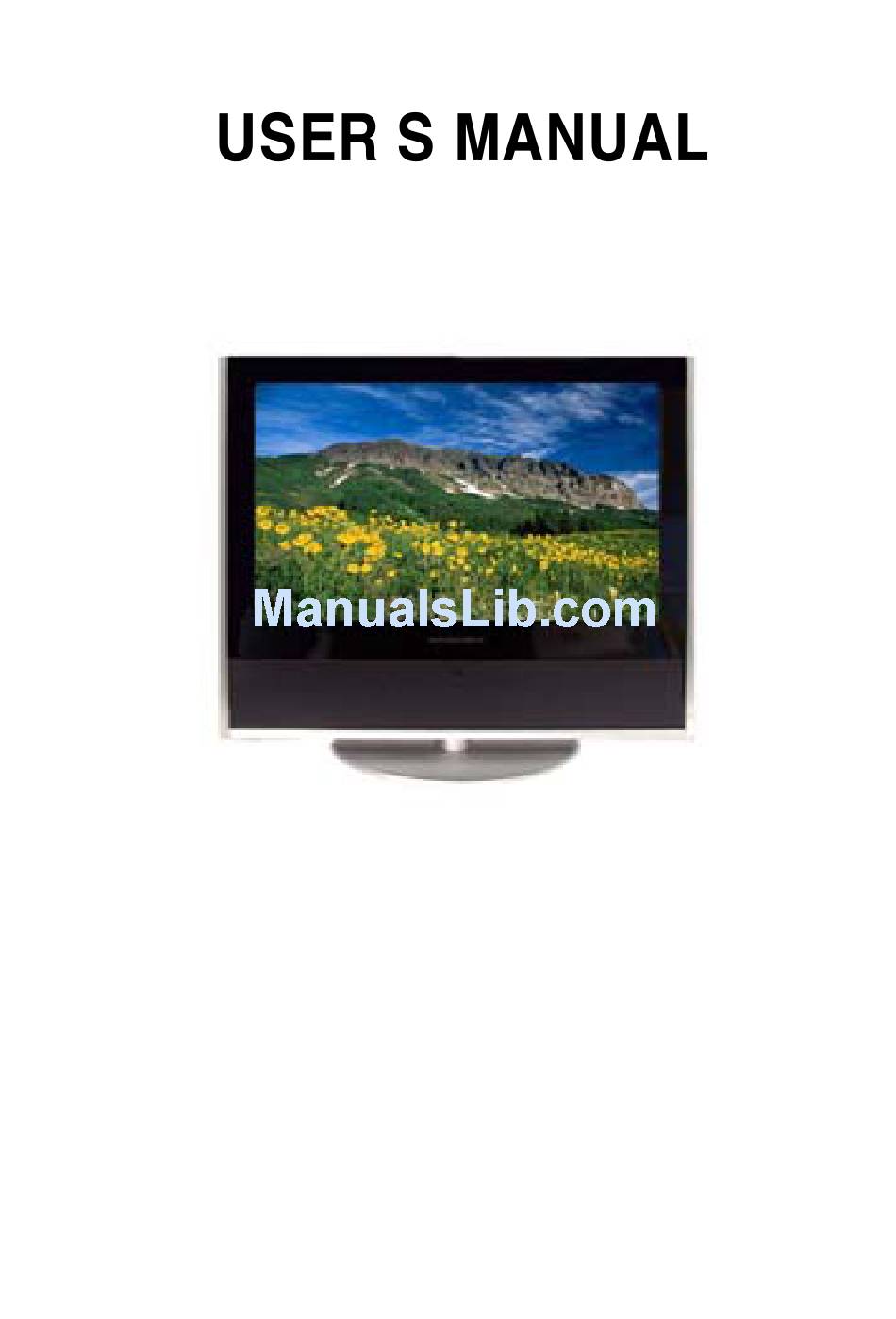

- Page 1 ’ Wide ” TFT Display INNOVIEW Co., Ltd INV-17W User Manual Page 1...
- Page 2 Do not change or modify the product without permission or authority of manufacturer. It may cause undesirable operations, permanent damages or harmful interferences. Notice · Design and specification are subject to change without notice for product improvement purposes. INV-17W User Manual Page 2...
-
Page 3: Table Of Contents
Remote Control --------------------------------------------------------------------------------------------------------- Manual Control ----------------------------------------------------------------------------------------------------------- OSD Operation Picture Setting ---------------------------------------------------------------------------------------------------------- TV Setting --------------------------------------------------------------------------------------------------------------- Av Settings -------------------------------------------------------------------------------------------------------------- Option Settings --------------------------------------------------------------------------------------------------------- Utility Settings ------------------------------------------------------------------------------------------------------------ 17 Advanced Setting ------------------------------------------------------------------------------------------------------ 18 Teletext Operation ------------------------------------------------------------------------------------------------------- 19 Specification ------------------------------------------------------------------------------------------------------------- 20 INV-17W User Manual Page 3... -
Page 4: Package Check List
Packing List LCD Display Manual Power Code DC Adapter Drive Diskette VGA Cable Remote Control Batteries (Type AAA) RCA Cable Audio Cable INV-17W User Manual Page 4... -
Page 5: For Pal
CONNTECTION 1. For PAL DC Adapter Camcorder Speaker Out Head phone OUT PC Audio IN DC IN Analog RGB SCART S-video Audio R/L Rear of LCD Display Speaker system Headphone TV Cable (with amplifier) INV-17W User Manual Page 5... -
Page 6: For Ntsc
2. For NTSC DC Adapter Camcorder Speaker Out Head phone OUT Video PC Audio IN DC IN Analog RGB S-Video Audio R/L Rear of LCD Display Speaker system Headphone TV Cable (with amplifier) INV-17W User Manual Page 6... -
Page 7: Tv, Vcr, Dvd And Cable Box
Rear of LCD Display Coaxial Cable SCART AUDIO R/L SCART Cable From Cable 1. Connect antenna or TV coax wire to ANT. 2. Connect the AV equipment(VCR, DVD player, etc.) to corresponding jacks(Scart, S-VIDEO, C-VIDEO, AUDIO, etc) INV-17W User Manual Page 7... - Page 8 Video Audio R/L From Cable Video / Audio Cable Video Cable 1. Connect antenna or TV coax wire to ANT. 2. Connect the AV equipment(VCR, DVD player, etc.) to corresponding jacks(PrYPb component, S- VIDEO, C-VIDEO, AUDIO, etc) INV-17W User Manual Page 8...
- Page 9 To connect with RGB Analog cable, follow the on screen instructions and insert diskette when it is required Note Not all video graphics cards support 1280 x 768 wide aspect resolution. Some devices may require updated driver Please consult your video graphic manufacturer. INV-17W User Manual Page 9...
- Page 10 Frequency (kHz) Frequency (Hz) 640x480 31.5 640x480 37.9 640x480 37.5 720x400 31.5 800x600 37.9 800x600 48.1 800x600 46.9 1024x768 48.4 1024x768 56.5 1024x768 1280x768 47.7 Recommended to set this display to 1280x768 at 60 Hz. INV-17W User Manual Page 10...
-
Page 11: Remote Control
GREEN BUTTON(ADD/DEL) This command is available in TV Mode. Add and delete channel in favorite & valid channel mode of the OSD Menu. * ETC: Red, Green, Yellow, Blue buttons are available in Teletext mode. INV-17W User Manual Page 11... -
Page 12: Manual Control
User can control easily this display with Remote control and OSD Button on the right side of the display. 1. MENU 2. SOURCE 3. CH + 4. CH – 5. VOL + 6. VOL – 7. POWER INV-17W User Manual Page 12... -
Page 13: Osd Operation Picture Setting
□ Scaling Fill all : the whole screen is stretched to fit the display area. Normal : Set the picture to 4 :3 normal mode. Wide : Set the picture to 16 : 9 wide mode. INV-17W User Manual Page 13... -
Page 14: Tv Setting
□ Fine Tune If Auto fine Tune is Off, manually fine tune the channels. □ Source Select whether it is Cable reception or terrestrial line. □ Region Select whether it is PAL, SECAM or NTSC. INV-17W User Manual Page 14... -
Page 15: Av Settings
Turn on or off the sound. □ Volume Increase or Decrease the sound. □ Treble Change the high pitched sound. □ Bass Change the low pitched sound. □ Balance Change the balance of left and right in speaker out. INV-17W User Manual Page 15... -
Page 16: Option Settings
Support Display Power Management Signaling or not. □ Source Scan Automatically scan the available source (PC, Composite video, component video, S-video & TV) □ Blank Color The color of the screen while it is searching for source. INV-17W User Manual Page 16... -
Page 17: Utility Settings
Utilities Setting Description of Utilities Settings □ OSD Timeout Set the time which OSD menu disappears. □ Factory Init. Revert the setting to factory default. INV-17W User Manual Page 17... -
Page 18: Advanced Setting
Sharp 1 -> 2 -> 3 -> 4 -> 5 Soft □ Color Temp(Temperature) Provide four preset color adjustments. Warm 5000 -> 7300 -> 9300 Cool User : user can adjust each of Red, Green, Blue. This Mode is available under PC and Video mode. INV-17W User Manual Page 18... -
Page 19: Teletext Operation
Press this button again to remove the information from the display. HOLD Press this button to prevent that automatic page change occurs. If Teletext page consists of 2 or more sub pages,. Press the button again to refresh it. INDEX Return to index page. INV-17W User Manual Page 19... -
Page 20: Specification
Stand-by mode Under 5W Other Teletext, V-CHIP Control, PIP(Option) Dimension Net/Box(W x H x D)mm : 450 X 410 X 180 /505 X 510 X 240 Weight Net/Gross(Kg) 7.2kg / 8.5kg Certification FCC, CE, UL, TUV INV-17W User Manual Page 20...
