Acoustic Arc AS0850 Instruction Manual

900 mhz floating
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
900 MHz FLOATING
SPEAKER SYSTEM
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS0850 and is the answer not in the manual?

Questions and answers

Summary of Contents for Acoustic Arc AS0850

  • Page 1 900 MHz FLOATING SPEAKER SYSTEM INSTRUCTION MANUAL...
  • Page 2 INTRODUCTION This floating wireless speaker system applies the latest 900 MHz wireless technology that enables you to enjoy music in your swimming pool. You can simply connect the portable transmitter with any audio source such as i- pod,, Hi-Fi and CD/MP3 player or other audio source. PACKAGING RF transmitter Floating speaker..

  • Page 3: Component Identification

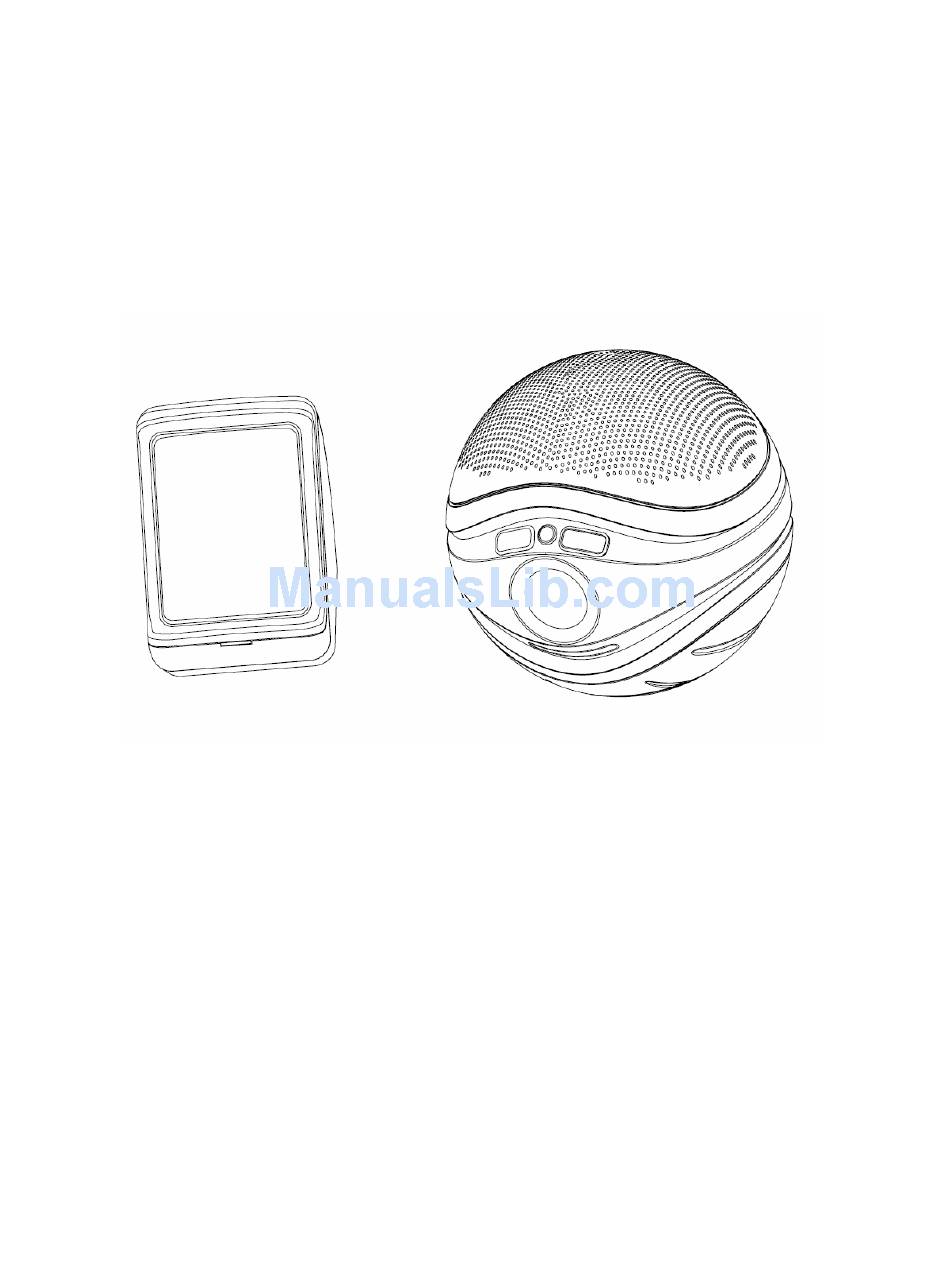

    COMPONENT IDENTIFICATION TRANSMITTER Power/Signal indicator (Green/Blue) SPEAKER...

  • Page 4: Installation

    INSTALLATION TRANSMITTER Insert 4x X “AA” size ALKALINE batteries into the battery compartment at the bottom of the transmitter with correct polarity. The rear of the transmitter has one audio cord that can be connected to audio output jack of TV, i-pod, DVD, and CD/MP3 players or to headphone/earphone jack with the connector provided.

  • Page 5: Operation

    Press Power button and turn the speaker ON and the Power LED will light up in Green. When the signal link is established between transmitter and speaker, the LED on speaker will change to Blue. OPERATION 1. Turn on the transmitter and the LED will light up in Green. 2.

  • Page 6: Switching Off

    6. Push the “Scan” button to get the best tuning reception in the speaker. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. 7. You should now be able to place the speaker freely in your pool, of which the speaker will be floating in the water..

  • Page 7: Troubleshooting

    TROUBLE SHOOTING NO SOUND Too much water retention inside the speaker grill. Turn it over and shake it to let water drill out. Ensure batteries are with power for both transmitter and receiver. Speaker’s or/and transmitter’s battery capacity is too low, sound distortion will be heard, and replace with new batteries.

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS Transmission Mode UHF stereo Carrier Frequency 900 MHz Operation Voltage Transmitter, 4 X “AA” size Alkaline batteries (not included) Speaker, 6 X “AA” size Alkaline batteries (not included) Frequency Response 40Hz – 12KHz Distortion 1.5% S/N Ratio 65dB (typical) Operation Distance Up to 150feet Output Power...
