Ubiquiti U-Installer Quick Start Manual

Ubiquiti U-Installer Quick Start Manual

Hide thumbs Also See for U-Installer:
Table of Contents

Advertisement

Quick Links

Download this manual
Installer
Q
S
G
uick
tart
uide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U-Installer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti U-Installer

Summary of Contents for Ubiquiti U-Installer

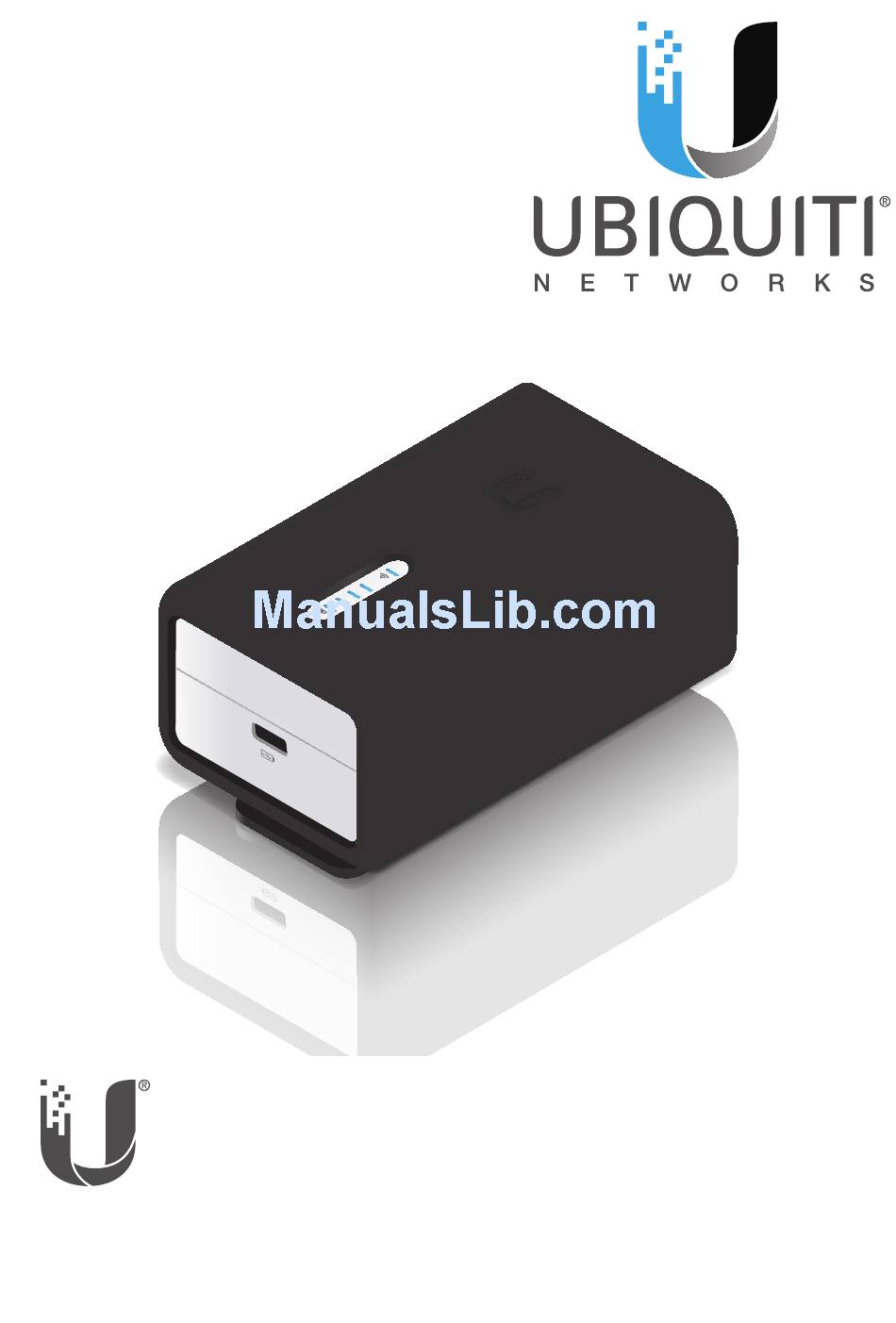

  • Page 1 Installer uick tart uide...

  • Page 2: Hardware Overview

    Hardware Overview PoE OUT Port Removable Rubber Casing Wi-Fi LED Battery LEDs USB-C Port Front View Ports PoE OUT Supplies 24V passive PoE to the device being installed. USB-C USB Type C port used for charging the internal battery. LEDs Wi-Fi Lights blue if the U‑Installer has a Wi‑Fi connection to your mobile device.

  • Page 3: Back View

    Battery Four blue LEDs indicate the internal battery’s charge level: Full charge Low charge* * Recharge the battery by connecting a power source, such as a mobile battery pack, to the USB-C port. Buttons Clip Removable Rubber Casing Back View...
  • Page 4 Buttons Power Reset Ext Reset Reset Ext To reset the device connected to the U‑Installer to factory defaults, press this button while the device is powered on. Hold the button for more than eight seconds until the LEDs on the device flash.
  • Page 5 Configure a CPE Device Use a mobile device (default method) or a laptop to configure the CPE device at the point of installation via the U‑Installer’s Wi‑Fi: 1. Power on the U‑Installer by pressing the Power button. The Battery LEDs light when the power is on.
  • Page 6 2. Connect an Ethernet cable to the PoE OUT port on the U‑Installer. 3. Connect the other end of the cable to the CPE device.
  • Page 7 You have two options for configuration: the U Mobile App and Web Portal. Proceed to the appropriate instructions: U Mobile App - Default Method 1. iOS devices only: Connect your mobile device’s Wi‑Fi to the U‑Installer SSID named: ubi:<MAC Address> 2.
  • Page 8 4. Connect to the CPE device as follows: iOS: a. On the Connections screen, tap the CPE device. b. Tap Log in to automatically log into the device. Android: a. Tap , and then tap Installer. b. The app will automatically detect and connect to the U‑Installer SSID named: ubi:<MAC Address>.
  • Page 9 Web Portal 1. Connect your device’s Wi‑Fi to the U‑Installer SSID named: ubi:<MAC Address> 2. Open a web browser and go to: https://192.168.1.20 3. The login portal of the CPE device will appear. Log in using the appropriate username and password. Example Login Screen for CPE Device 4.
  • Page 10 Removing the U‑Installer After you have configured the CPE device, remove the U‑Installer: 1. Disconnect the Ethernet cable from the device. 2. Connect the Ethernet cable from a PoE adapter or switch to the device.

  • Page 11: Safety Notices

    Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 12: Limited Warranty

    (V) has been damaged or impaired as a result of using third party firmware; (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of...
  • Page 13 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal.
  • Page 14 UBIQUITI NETWORKS NOR ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT OR THE TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES.

  • Page 15: Limitation Of Liability

    Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE USE,...
  • Page 16 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1.

  • Page 17: Industry Canada

    Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This radio transmitter FCC ID: SWX‑UINS has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated.

  • Page 18: Rf Exposure Warning

    CAN ICES-3(B)/NMB-3(B) Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie. Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s).

  • Page 19: Australia And New Zealand

    Australia and New Zealand Warning: This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it.

  • Page 20: Rohs/Weee Compliance Statement

    RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 21 Deutsch Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte.
  • Page 22 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
  • Page 23 Français La directive européenne 2012/19/UE exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages.

  • Page 24: Declaration Of Conformity

    декларацията за съответствие може да се намери на следния интернет адрес: www.ubnt.com/compliance Hrvatski [Croatian] UBIQUITI NETWORKS ovime izjavljuje da je radijska oprema tipa U-Installer u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: www.ubnt.com/compliance Čeština [Czech] Tímto UBIQUITI NETWORKS prohlašuje, že typ...
  • Page 25 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: www.ubnt.com/compliance Nederlands [Dutch] Hierbij verklaar ik, UBIQUITI NETWORKS, dat het type radioapparatuur U-Installer conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: www.ubnt.com/compliance...
  • Page 26 Íslenska [Icelandic] Hér með lýsir UBIQUITI NETWORKS yfir því að U-Installer er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 2014/53/EU. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance...
  • Page 27 Español [Spanish] Por la presente, UBIQUITI NETWORKS declara que el tipo de equipo radioeléctrico U-Installer es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: www.ubnt.com/compliance Svenska [Swedish] Härmed försäkrar UBIQUITI NETWORKS att...

  • Page 28: Online Resources

    Ubiquiti Networks, the Ubiquiti U logo, and the Ubiquiti beam logo are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
