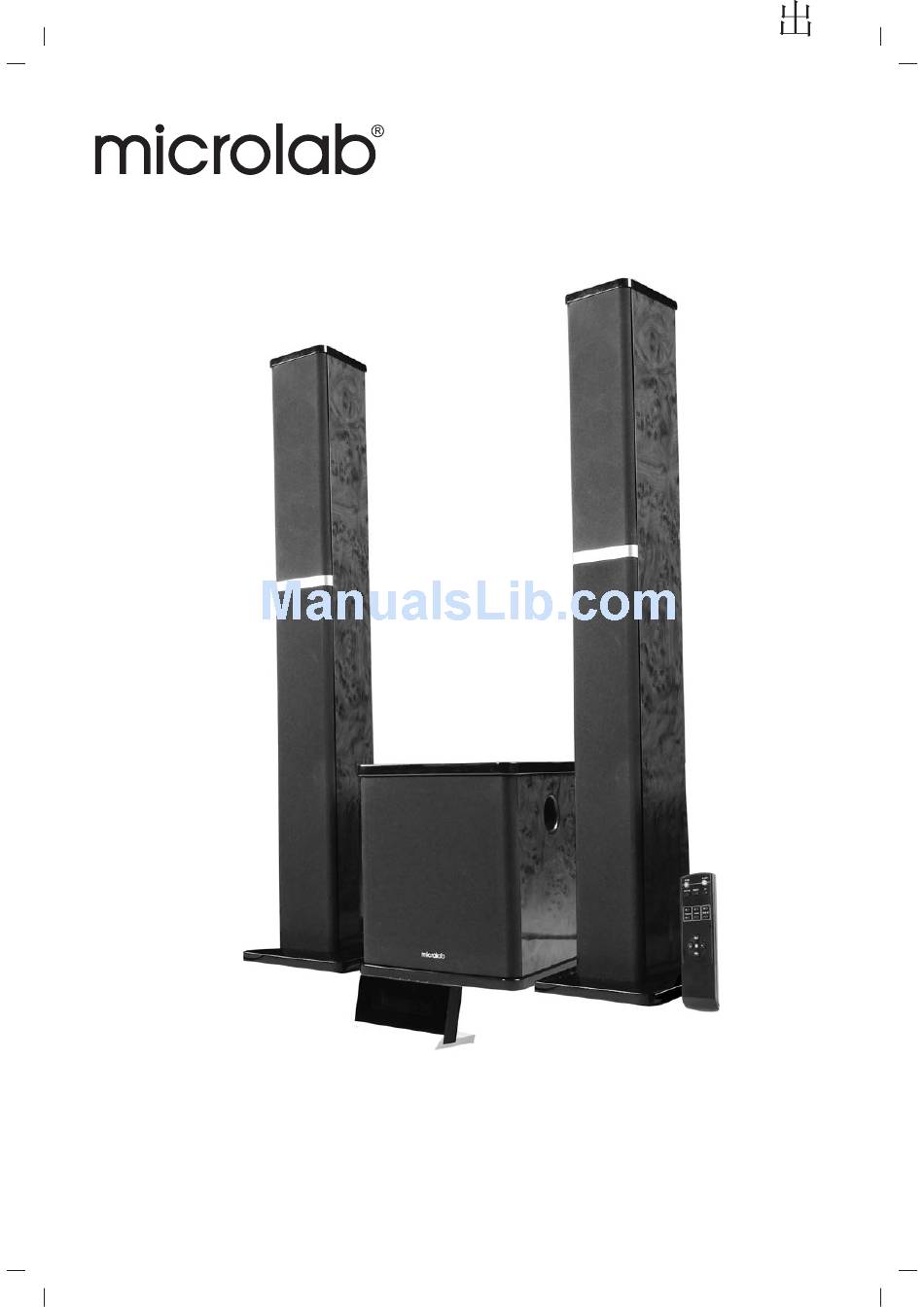

- Page 1 80-H300-97-0001-02 2008-08-14 AMPLIFIED SPEAKER SYSTEM H-300 User manual...
- Page 2 80-H300-97-0001-02 2008-08-14 IMPORTANT SAFETY INSTRUCTION Caution: TO reduce the risk of electric shock, do not dismantle the apparatus and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel. Explanation of Graphical Symbols: The lightning flash within an equilateral triangle is intended to alert you to the presence of “...
- Page 3 80-H300-97-0001-02 2008-08-14 － 12.Water and Moisture To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near －...
-
Page 4: Table Of Contents
80-H300-97-0001-02 2008-08-14 Welcome Packing list Subwoofer instruction Control unit and connection Remote control and inserting batteries Speaker System Hookup Speakers and placement Operation instruction Technical specifications... -
Page 5: Welcome
80-H300-97-0001-02 2008-08-14 Welcome Thank you for selecting this active powerful HI-FI 2.1 speaker system. The system is featured by unique technique, elegant outlook and high grade functions. The professionally designed built-in amplifier, particular techniques and elaboration ensure the Hi-Fi effect and create wide frequency response. -
Page 6: Subwoofer Instruction
80-H300-97-0001-02 2008-08-14 Subwoofer instruction (back panel) AUDIO INPUT CONTROL AUDIO OUTPUT FUSE AC IN T1.25AL250V To control unit CD input AUX input (2.0 channel) Socket for audio output Power switch AC IN Fuse Heat sink... -
Page 7: Control Unit And Connection
80-H300-97-0001-02 2008-08-14 Control unit and connection ST-BY: Stand by INPUT-SEL: press the button to select audio input CD, AUX . TREBLE/BASS: Press this button to select TREBLE and BASS. VOLUME: press the button to adjust the master volume of the system and adjusting treble or bass while selecting. - Page 8 80-H300-97-0001-02 2008-08-14 Remote control ST-BY SLEEP INPUT-SEL RESET ST-BY: stand by or turn on the system SLEEP: selecting sleep time 15, 30 or 45 mimutes INPUT SEL: selecting CD or AUX audio input RESET: reset the trim and volume to start mode TREBLE BASS SUB-W...
-
Page 9: Speaker System Hookup
80-H300-97-0001-02 2008-08-14 2.1 Speaker System Hookup Connect to CD or other 2.0 RCA audio output Connect to pc mp3 etc AUDIO INPUT CONTROL AUDIO OUTPUT FUSE AC IN T1.25AL250V *Please note the correct placement of speaker is shown in the above picture. *Statement indicates that the socket-outlet shall be installed near the equipment and shall be easily accessible. - Page 10 80-H300-97-0001-02 2008-08-14 Positioning the speakers To reproduce sound of movie much better, we suggest that you setup your speakers as following diagram. Each speaker should face the listening position. Better 3D effect will result if all speakers are set at the same distance from the listening position.
-
Page 11: Operation Instruction
80-H300-97-0001-02 2008-08-14 Operation instruction: 1.Turn on the power. The symbol will be shown on the left of the display and the system is in Stand-by mode. 2.Press ST-BY button on the control unit or remote ST-BY key to turn on the system the defaulting setting up of the system is 2.0 input, and master volume at 20dB. -
Page 12: H300-97-0001-02 2008
80-H300-97-0001-02 2008-08-14 Specifications: *AC IN: 220V-240V~ 50Hz 670mA *Power Output: 100W RMS (25Wx2+50W) *Frequency Response: Subwoofer 20Hz~150Hz Satellite 150Hz~20KHz *Input Sensitivity : 350mV *Harmonic Distortion: 0.3% 1W 1KHz *S/N: >80dB *Separation: >45dB Ω *Speaker unit: Subwoofer 8" 4 Ω Satellite 2.5" x 2 +1" 8 (magnetcally shielded) * Audio Input: RCA * Audio Output : Socket... - Page 13 80-H300-97-0001-02 2008-08-14...
