Summary of Contents for Quarkpro Light supernova

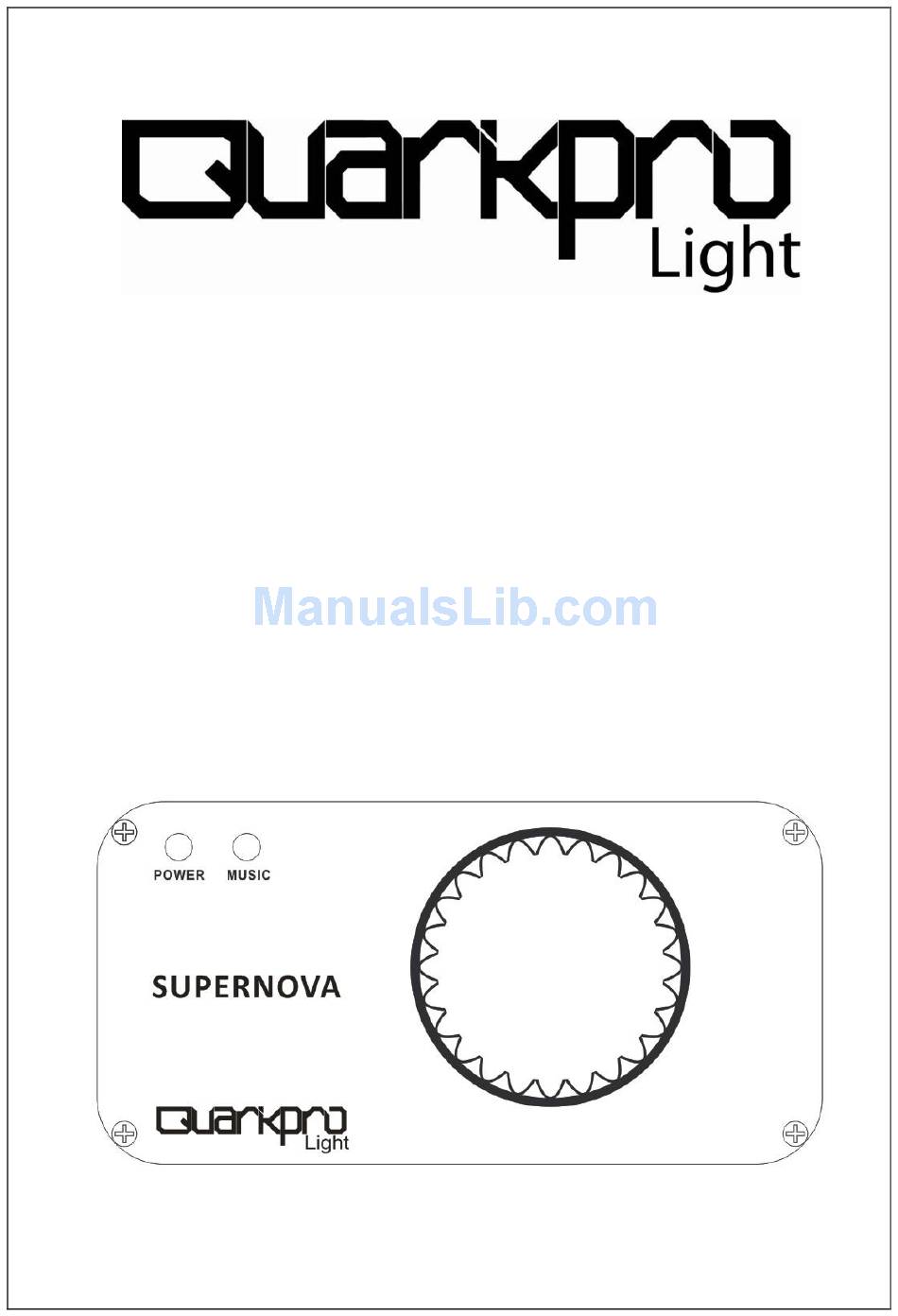

- Page 1 MANUAL DEL USUARIO USER MANUAL SUPERNOVA...
-
Page 3: Descripcion Del Producto
MANUAL DEL USUARIO MANUAL DE INSTRUCCIONES Gracias por adquirir este Laser SUPERNOVA de Quarkpro Light. Esta unidad contiene internamente unidades de laser de alta potencia. No abra la carcasa del láser, debido a la potencial exposición a niveles altos de radiación laser. - Page 4 ESPAÑOL MANUAL DEL USUARIO NOMBRE DESCRIPCION LED de Indica si el aparato esta encendido. Funcionamiento LED de Sonido Sincronizado con el sonido detectado. NUNCA MIRAR A TRAVES DE ESTA Salida del Laser SALIDA CUANDO EL LASER ESTE SUPERNOVA QUARKPRO LIGHT...
- Page 5 Desconecte siempre la unidad si no va a ser usada en un tiempo prolongado. En caso de malfuncionamiento, desconecte la unidad y contacte con su distribuidor inmediatamente. ATENCION La emisión del Laser se activara en unos 5 segundos tras encender el aparato. FUNCIONAMIENTO SUPERNOVA QUARKPRO LIGHT...
- Page 6 SHOW AUTOMATICO con color AMARILLO SHOW AUTOMATICO con color ROJO SHOW AUTOMATICO con color VERDE SHOW AUTOMATICO con colores RGY SHOW AUDIO con color AMARILO SHOW AUDIO con color ROJO SHOW AUDIO con color VERDE SHOW AUDIO con colores RGY SUPERNOVA QUARKPRO LIGHT...
- Page 7 Pulse hasta que el panel muestre SLA Presione ENTER para confirmar. El láser comenzara a funcionar en “MAESTRO/ESCLAVO”. Conecte el Laser Maestro y los láseres Esclavos con cables DMX. Los Láseres Esclavos reproducirán exactamente lo que el Laser Maestro reproduzca. SUPERNOVA QUARKPRO LIGHT...
-
Page 8: Protocolo Dmx
COLOR ORIGINAL 025-049 PREPROGRAMADO 050-074 ROJO 075-099 VERDE 100-124 AMARILLO CH 3 COLOR 125-149 ROJO Y VERDE ALTERNANDO 150-174 VERDE Y AMARILLO ALTERNANDO 175-199 ROJO Y AMARILLO ALTERNANDO 200-224 ROJO, VERDE AMARILLO ALTERNANDO 225-255 Rotación de Color SUPERNOVA QUARKPRO LIGHT... - Page 9 192-255 Rotación Izquierda 000-127 0 -359º Rotación Eje X CH 9 128-191 Rotación Derecha EJE X ROTACION 192-255 Rotación Izquierda 000-127 0 -359º Rotación Eje Z CH 10 128-191 Rotación Derecha EJE Z ROTACION 128-255 Rotación Izquierda SUPERNOVA QUARKPRO LIGHT...
-
Page 10: Manual Del Usuario
LISTA DE PATRONES DEL CANAL 2 PATRONES PATRONES PATRONES PATRONES 000-007 064-071 128-135 190-197 008-015 072-079 136-143 198-205 016-023 080-087 144-151 206-213 024-031 088-095 152-159 214-221 032-039 096-103 160-167 222-229 040-047 104-111 168-175 230-237 048-055 112-119 176-181 238-245 056-063 120-127 182-189 246-255 SUPERNOVA QUARKPRO LIGHT... -
Page 11: Especificaciones
Class 3B Estándar de Seguridad Laser: EN60825-1 2007 Temp. De funcionamiento: 10~40℃ Conexiones DMX: 3 pines XLR Macho/Hembra Canales DMX 10 canales Medidas: 145x160x80mm Peso Neto: 1.3 Kg Las especificaciones están sujetas a cambios sin previo aviso. SUPERNOVA QUARKPRO LIGHT... -
Page 12: Product Overview
ENGLISH USER MANUAL USER MANUAL Thanks for purchasing this Quarkpro Light – SUPERNOVA Version: 1.0 This manual contains important laser operation information. Read and understand all instructions prior to powering on laser unit the first time, to avoid laser eye injury and to avoid breaking the law. Keep this manual in a safe place for future reference. - Page 13 Indicates the fixture is switched on Music LED Synchronize to detected music signal The laser effect output aperture. NEVER LOOK INSIDE THE Laser Aperture FIXTURE THROUGH THIS APERTURE WHILE FIXTURE IS OPERATING. Power Switch Switch ON and OFF the fixture SUPERNOVA QUARKPRO LIGHT...
-
Page 14: Control & Function
In the event of serious operation problems, stop using the fixture and contact your dealer immediately. ATTENTION Laser will be output from laser aperture in 5 seconds after the unit is powered on. OPERATION: SUPERNOVA QUARKPRO LIGHT... - Page 15 AUTOMATIC SHOW with single GREEN color AUTOMATIC SHOW with single RGY color SOUND ACTIVATED SHOW with YELLOW colors SOUND ACTIVATED SHOW with single RED color SOUND ACTIVATED SHOW with single GREEN color SOUND ACTIVATED SHOW with single RGY color SUPERNOVA QUARKPRO LIGHT...
- Page 16 The laser is working in “SLAVE MODE”. Connect MASTER laser and SLAVE lasers with DMX cable, the SLAVE lasers do what exactly MASTER laser does. Check “5.2 DMX connection” to have more details about laser connection. SUPERNOVA QUARKPRO LIGHT...
-
Page 17: Dmx Protocol
025-049 ORIGINAL PREPROGRAMED COLOR 050-074 075-099 GREEN 100-124 YELLOW CH 3 COLOR 125-149 ALTERNATE RED & GREEN 150-174 ALTERNATE GREEN & YELLOW 175-199 ALTERNATE RED & YELLOW 200-224 ALTERNATE RED & GREEN & YELLOW 225-255 Color rolling SUPERNOVA QUARKPRO LIGHT... - Page 18 0 -359 degree fixed X axis rolled CH 9 128-191 Clockwise rolling x AXIS ROLLING 192-255 Anticlockwise rolling 000-127 0 -359 degree fixed Z axis rotate CH 10 128-191 Clockwise rotating Z AXIS ROTATING 128-255 Anticlockwise rotating SUPERNOVA QUARKPRO LIGHT...
- Page 19 PATTERN LIST IN CHANNEL 2 PATTERNS PATTERNS PATTERNS PATTERNS 000-007 064-071 128-135 190-197 008-015 072-079 136-143 198-205 016-023 080-087 144-151 206-213 024-031 088-095 152-159 214-221 032-039 096-103 160-167 222-229 040-047 104-111 168-175 230-237 048-055 112-119 176-181 238-245 056-063 120-127 182-189 246-255 SUPERNOVA QUARKPRO LIGHT...
-
Page 20: Specifications
100-R + 140mW-Y +40mW-G CW Laser Classification: Class 3B Laser Safety Standard: EN60825-1 2007 Condition Temperature: 10~40℃ DMX Connections: 3 pins XLR Male/Female DMX Channels 10 channels Measurement: 145x160x80mm N Weight: 1.3 Kg Specifications subject to change without prior notice. SUPERNOVA QUARKPRO LIGHT... - Page 21 ENGLISH USER MANUAL ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ SUPERNOVA QUARKPRO LIGHT...
