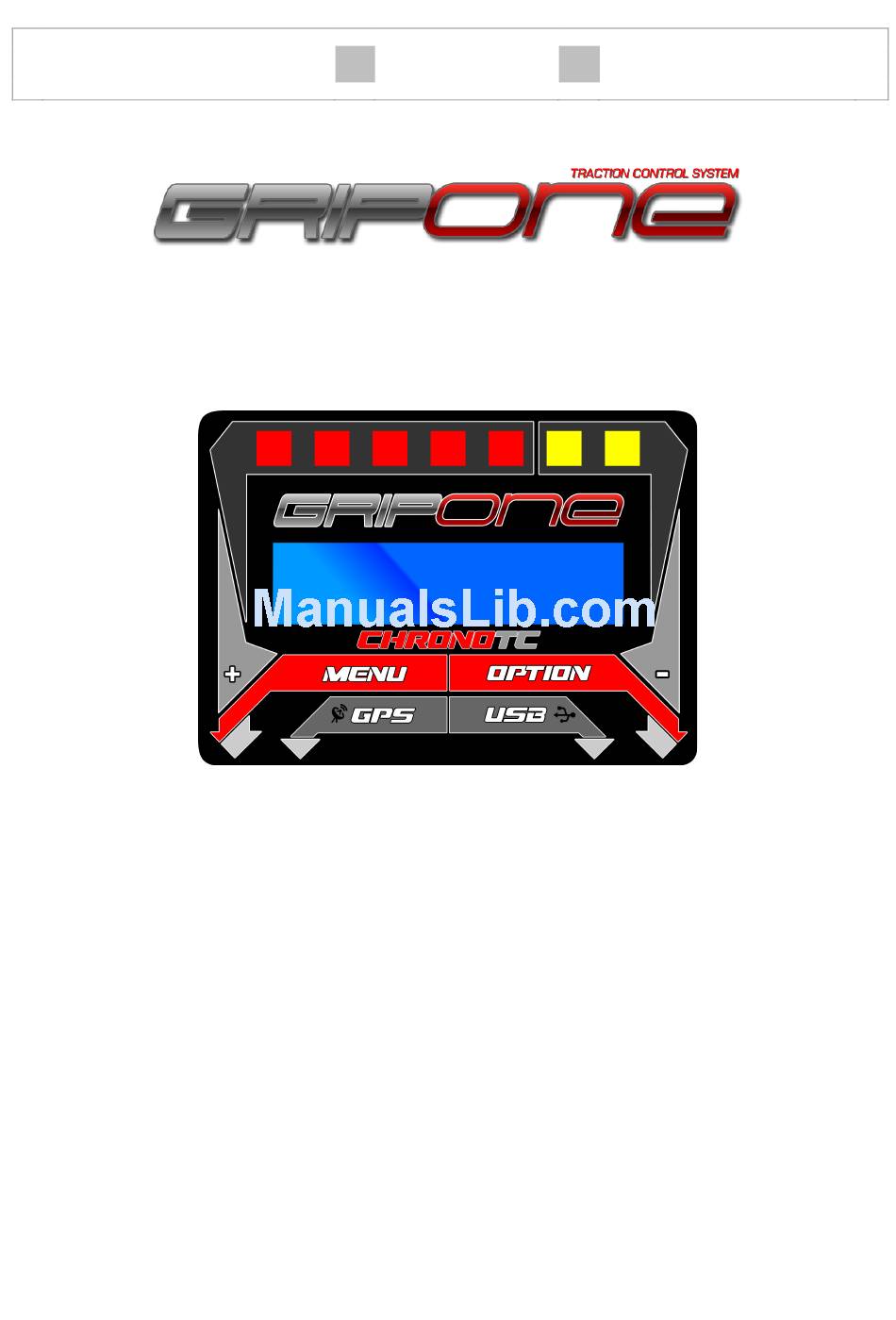

- Page 1 COILS INJECTO RS Connect it to: GRIPONE CHRONO TC – installation manual - (ENG) TRACTION CONTROL ANTI WHEELIE LAUNCH CONTROL GPS LAPTIMER www.gripone.com...
- Page 2 The configuration of the device requires several non-trivial reflections, referred to only within this manual. Please note that you are installing a device on a vehicle can reach high speeds. The system GRIPONE is a professional traction control system for racing use only.
- Page 3 2.1 Recommandation DO NOT RUSH! When installing the GRIPONE control unit, make sure that the unit is protected from excessive vibrations and surrounding elements and that it is clamped firmly. When you use the adhesive parts (for setting up the control unit or cables), make sure that the mounting surfaces are clean and free of dust or grease by cleaning them with degreasing solution.
- Page 4 No modification are required on the bike. 4.1 Connection of the plug & play harness The GRIPONE CHRONO TC must be connected to the injectors (or coils) of your bike. GRIPONE support up to 2 injectors: 1 lower and 1 upper (or up to 2 coils).
- Page 5 www.gripone.com...
-
Page 6: Installation Of Sensors
4.2 Installation of sensors To calculate the speed of the motorcycle, GRIPONE CHRONO TC uses two speed sensors. 1) Sensors must be placed where they can detect the passage of the bolts of the front and rear brake disk. It is provided a kit of universal brackets for mounting sensors. - Page 7 5.0 Configuration of unit GRIPONE has 2 buttons (OPTION and MENU) through which you can configure the unit. When the unit is turned on (and bike is stop), you can access the menu by pressing the MENU button.
- Page 8 Fix it to 9000 to switch off the led indicator. MEMORY – GRIPONE CHRONO TC works as GPS lap timer (GPS module is optional). Before use GRIPONE as lap timer, you have to clear the internal memory. GRIPONE is able to keep in memory up to 200 laps.
- Page 9 www.gripone.com...
- Page 10 5.3 LED on ECU GRIPONE CHRONO TC has a 5 red led (led bar) used for show how the control strategies are working and 2 yellow led to show when the bike pass through the intermediate point of the track and the finish line of the track (if GPS module is connected).
- Page 11 6.0 GPS reciever module (optional) If you ride your bike on race track, you can use GRIPONE as laptimer and save your lap times and intermediate times into its memory. GRIPONE can record up to 200 laps. To activate this option you have to connect the GPS reciever to the ECU by the 3.5 jack.
