Summary of Contents for Everest 6120

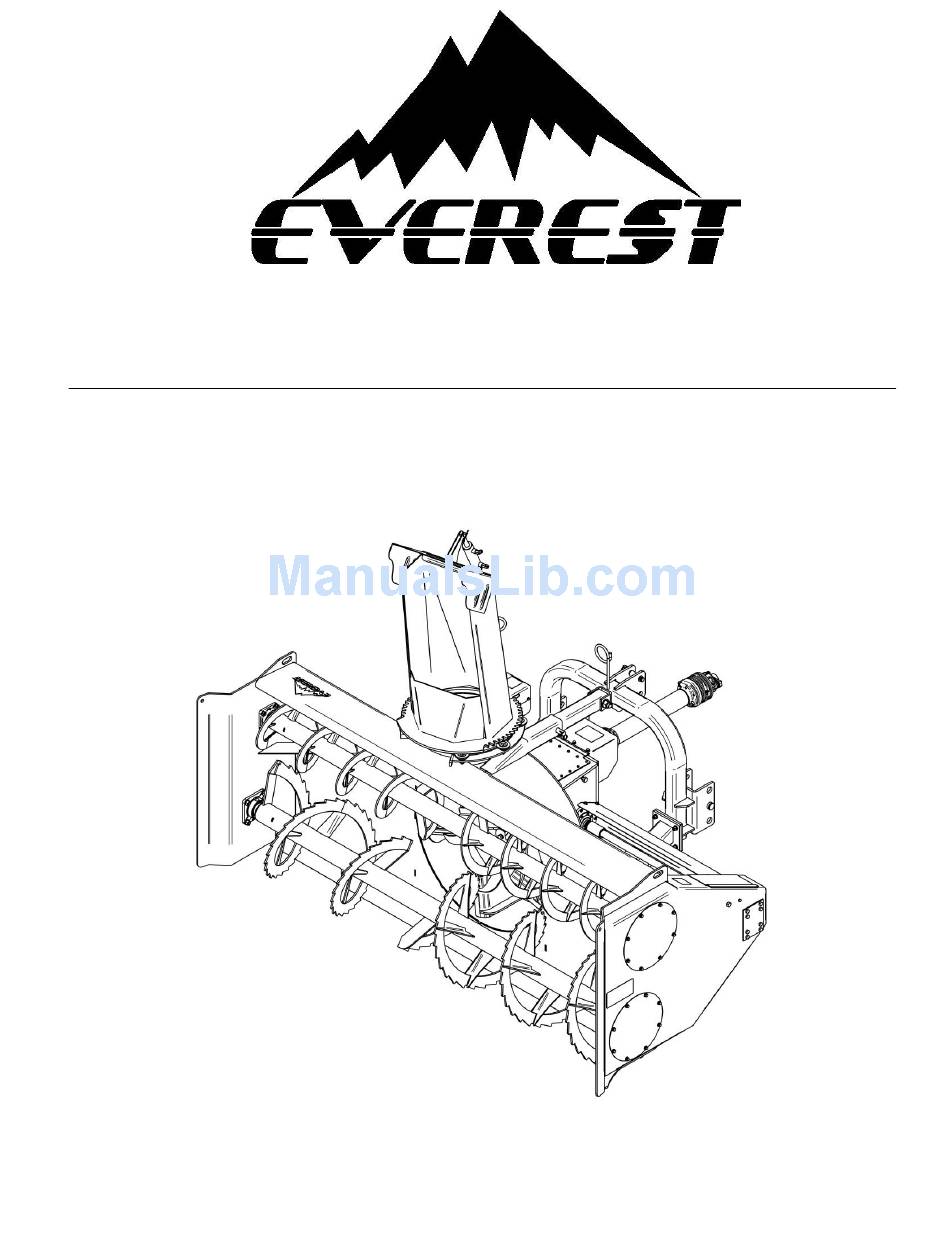

- Page 1 OPERATOR AND PARTS MANUAL 6120 SNOWBLOWER...
-
Page 2: Table Of Contents
EVEREST MODEL #6120 Contents INTRODUCTION ................................... 3 SAFETY ....................................4 SAFETY DECALS ..................................5 GENERAL SAFETY ................................. 6 LIMITED WARRANTY ................................7 ..............................8 IMITED ARRANTY ONTINUED PREPARATION FOR USE ................................9 PREPARATION FOR USE – C ............................10 ONTINUED OPERATING INSTRUCTIONS ............................... -
Page 3: Introduction
This manual is to assist you in the safe assembly, maintenance, and operation of the Everest Snow Blower. It also has a parts list to help you when replacement parts are required. Everest Snow Blowers are available in a wide range of sizes. -
Page 4: Safety
EVEREST MODEL #6120 SAFETY Remember YOU are the key to safety. Do not risk damage to the product, personal injury or death. It is essential that you read the safety instructions and before you operate this snow blower. Note: our products are designed to be safe and dependable. It is the owner’s responsibility that anyone operating this equipment reads and understands this manual and the operation of the equipment before operating. -
Page 5: Safety Decals
EVEREST MODEL #6120 SAFETY DECALS To promote safe operation, safety decals are provided on all products manufactured. Because damage can occur to decals in everyday use or in reconditioning, replacement decals are available. To install decals make sure the surface is clear and free from oil. Decide on the exact location before removing backing paper. -
Page 6: General Safety
EVEREST MODEL #6120 GENERAL SAFETY In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel in the operation, transportation, maintenance and storage of equipment. Lack of attention to safety can result in accident, reduction of efficiency, personal injury or loss of life. -
Page 7: Limited Warranty
General Metal Fabrication Ltd. provides this warranty only to the original retail purchaser of this product. General Metal Fabrication Ltd. warrants to such purchasers that all Bauman / Everest manufactured parts and components used and serviced as provided for in the Operator’s Manuals shall be free from defects in material and workmanship for a period following delivery to the original retail purchaser of 12 months (90 days for commercial applications). -
Page 8: Limited Warranty - Continued
Repairs eligible for labour under this limited warranty must be made by General Metal Fabrication Ltd. or an authorized Bauman / Everest dealer. General Metal Fabrication Ltd. retains the exclusive discretion to determine whether it will pay labour cost for warranty repairs or replacement, and the amount of such costs that it will pay and the time in which the repairs will be made. -
Page 9: Preparation For Use
EVEREST MODEL #6120 PREPARATION FOR USE Connecting to tractor Make sure the tractor and the snow blower are on level dry ground free from foreign objects. Move tractor to snow blower slowly making sure no person or pet is between tractor and implement. -
Page 10: Preparation For Use - Continued
EVEREST MODEL #6120 PREPARATION FOR USE – Continued o Clamp end of driveline in vice. Cut off shield where marked. Using the cut off section of shield as a guide, cut shaft the same amount. NOTE: when finished cutting, the shield will be shorter than the shaft. -
Page 11: Operating Instructions
EVEREST MODEL #6120 OPERATING INSTRUCTIONS Check before each use Check tightness of chain, bolts, and other hardware. Clear the work area of anything that might be thrown, and check to ensure all bystanders are standing clear before starting. -
Page 12: Maintenance
EVEREST MODEL #6120 MAINTENANCE Always ensure the snow blower is properly installed, tractor is positioned on level ground with the park brake on, and the snow blower positioned on the ground. Shut off the engine remove and retain ignition key. Release any hydraulic pressure before performing any maintenance. -
Page 13: Maintenance - Continued
EVEREST MODEL #6120 MAINTENANCE – Continued BOLT TORQUE The following ft-lbs torque values are advisory only. Extreme caution should be used when using torque/tension relationships. Torque is only an indirect indication of tension. Under/over tightening of fasteners can result in costly equipment failure and/or personal injury. -
Page 14: Parts
EVEREST MODEL #6120 PARTS Page 14 of 24... -
Page 15: Parts - Continued
EVEREST MODEL #6120 PARTS – Continued Page 15 of 24... -
Page 16: Parts - Continued
EVEREST MODEL #6120 PARTS - Continued Page 16 of 24... -
Page 17: Parts - Continued
EVEREST MODEL #6120 PARTS – Continued Page 17 of 24... -
Page 18: Parts List
EVEREST MODEL #6120 PARTS LIST ITEM PART NO. DESCRIPTION 109598 BODY 109637 SERRATED AUGER 108542 AUGER 109618 FAN WELDT 109629 SPOUT 104975 ROLLER CHAIN 108317 HITCH 108503 HITCH LOWER EXTENTION 108508 HITCH LOWER EXTENTION 108544 SKID SHOE 108556 HITCH STAND... -
Page 19: Parts List - Continued
EVEREST MODEL #6120 PARTS LIST – Continued 10000749 BOLT, HEX, STEEL, GR5, PLTD, 3/4-10NC X 2 10000757 BOLT, HEX, STEEL, GR. 5, PLTD, 3/8-16 NC X 1" 10000758 BOLT, HEX, 3/8-16 NC X 1-1/2 10000763 BOLT, HEX, STEEL, GR. 5, PLTD, 3/8-16 NC X 3/4"... -
Page 20: Parts List - Continued
EVEREST MODEL #6120 PARTS LIST - Continued 10005616 DECAL, WARNING, MUST NOT OPERATE 10005623 DECAL, WARNING AVOID INJURY OR DEATH 10005624 DECAL, WARNING DO NOT GO NEAR LEAKS 10005626 DECAL, DANGER AVOID INJURY 10005627 DECAL, CAUTION READ OPERATION MANUAL 10007298... -
Page 21: Gearbox Assembly
EVEREST MODEL #6120 GEARBOX ASSEMBLY Page 21 of 24... -
Page 22: Gearbox Assembly - Parts List
EVEREST MODEL #6120 GEARBOX ASSEMBLY – PARTS LIST ITEM PART NO. DESCRIPTION 109653 GEARBOX TOP PLATE 109655 GEARBOX HOUSING 109666 GEARBOX FRONT PLATE 109669 GEARBOX INPUT SHAFT 109670 GEARBOX OUTPUT SHAFT 109671 CROSS SHAFT DRIVE ASSY. 109676 SPROCKET SPACER 109677... -
Page 23: Pto Parts
EVEREST MODEL #6120 PTO PARTS PTO PARTS LIST ITEM PART NO. DESCRIPTION 10002417 TRACTOR YOKE 10002295 CROSS JOURNAL 10011002 SHEAR YOKE 10011003 COMPLETE GUARD E00017 SHEAR BOLT M12 X 65 (PACK OF 5) 10011004 GUARD BEARING KIT (NOT PICTURED) Page 23 of 24... - Page 24 EVEREST MODEL #6120 MANUFACTURED BY: General Metal Fabrication Ltd 269 Manitoba Rd Winkler MB R6W 4A9 Canada Phone 1-204-325-9374 1-866-325-9374 1-204-325-5175 www.generalmetal.ca Page 24 of 24...
