Summary of Contents for Digital Guard Dawg Watch Dawg-X2

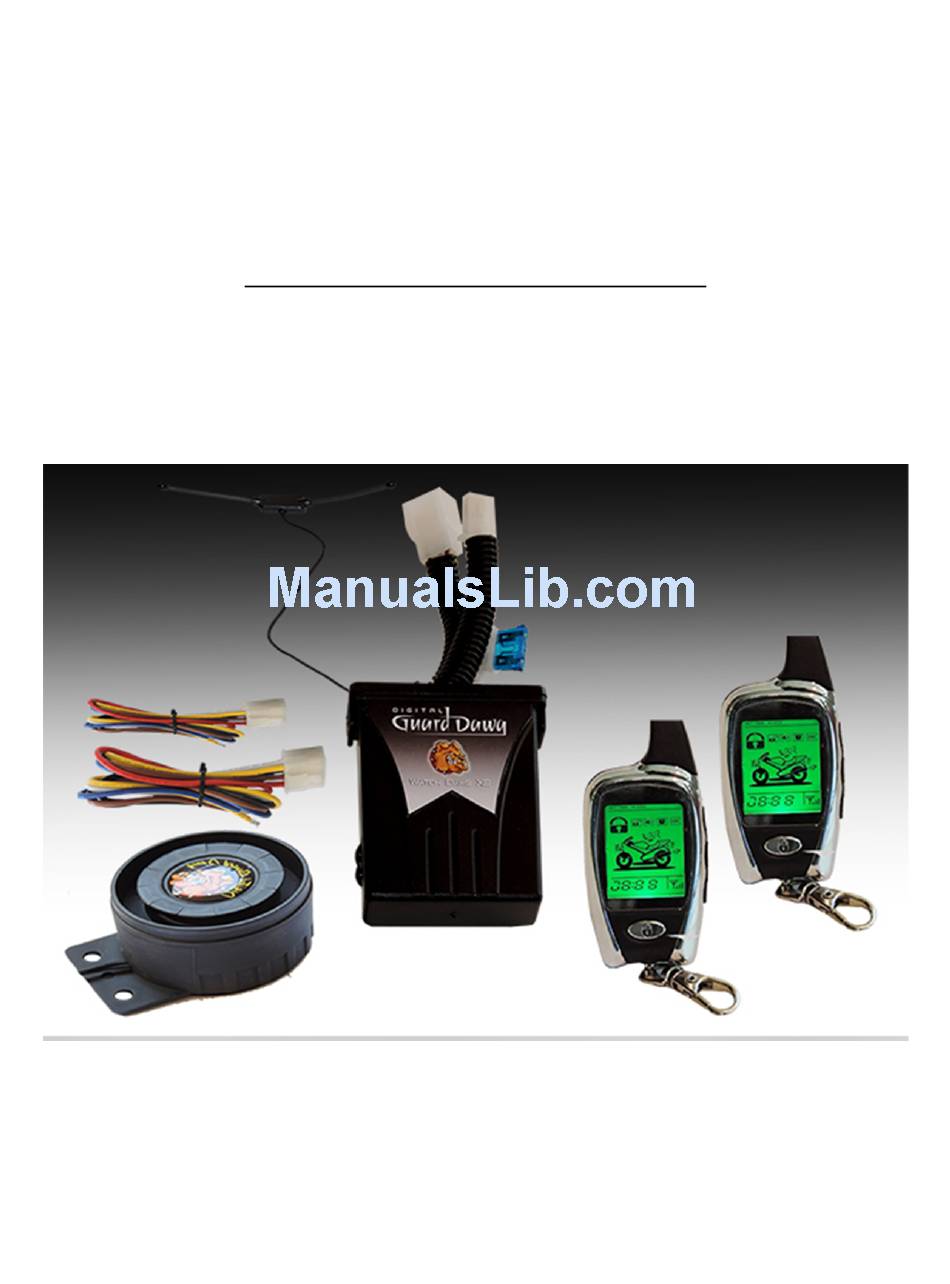

- Page 1 Digital Guard Dawg Watch Dawg‐X2 Functions and Operating Instructions. ...
- Page 2 Arming the alarm Stop the vehicle, remove the key and press the LOCK (picture of lock symbol) button on the transmitter. The horn will beep and the turn signals will flash indicating the system has been armed. The transmitter will return a beep, while the lock (lock picture) and horn (horn picture) icons on the display of the remote are illuminated to confirm the system has been armed. After 5 seconds, the motion sensor will become active and any motion will trigger the alarm (The sensitivity of the motion sensor can be adjusted on the side of the unit). When the alarm is trigger the remote will vibrate and light up indicating the alarm has been trigged. When the Alarm is triggered the bike will flash the turn signals and cause the horn to sound for 30 seconds. Arming the Alarm in Mute Mode Stop the vehicle, remove the key and press the LOCK button (picture of lock) twice within 5 seconds, The turn signals will flash, the horn will not sound and the system will arm in mute mode. The transmitter will return a beep, while the lock icon (lock icon) and the horn icon will have a small line through it (horn with an X) on the display of the transmitter are illuminated. In the mute alarm mode, the bikes horn will not sound if the alarm is triggered Disarming the Alarm When the system is armed press the Unlock (picture of unlock) button once this will disarm the alarm. The turn signals will flash twice and horn will make two beeps indicating the alarm has been disarmed. The remote will return two beeps while the Unlock icon (unlock icon) on the display of the remote is illuminated. Remote Starting your Bike ...
- Page 3 With the Engine off press the start button (lightning bolt icon) on the transmitter twice within 3 seconds, the bike will start automatically within 1 second. After successfully starting the transmitter will illuminate the exhaust icon and will beep 3 times. The engine cannot be shut off until the UNLOCK (unlock icon) button is pressed. Prompt to set Alarm After stopping the bike if the alarm is not set within 8 seconds the bike will make 3 beeps and flash the turn signals 3 times, to remind the rider to arm the bike. Remotely killing the Bike When the Bike is driving, hold down the LOCK (lock icon) button for 2s or longer, the turn signals will flash rapidly as the bike starts to enter anti‐theft mode. The horn of the bike will make a loud sound, the turn signals will flash, and the vehicles engine will die 20 seconds later. This state can only be stopped by pressing the UNLOCK (unlock icon) button. To Shut off the Remote Start While the bike is running (due to a remote start), press the unlock (unlock icon) button to remotely stop your bike. Automatic Re‐arm While the bike is armed if the UNLOCK (unlock icon) button is pressed the alarm will disarm, lf the bike is not started within 25 seconds the alarm will automatically re‐arm itself. The transmitter will beep upon arming indicating it has re‐armed. The bike will also beep indicating it has re‐armed. ...
- Page 4 Key Switch Reminder If the alarm is disarmed and not started within 25 seconds the transmitter will beep and vibrate reminding you to take the key out of the ignition switch. LED warning When the System has been armed the LED will flash twice every 2 seconds. While the system is armed, if the motion sensor is triggered (stage 1) the LED with flash 4 times every 2 seconds. When the alarm is fully triggered the LED will flash the entire duration of the alarm. Motion Sensor The motion sensor, is an adjustable 2 stage sensor. The sensitivity can be adjusted by rotating the dial on the side of the alarm unit. If the motion sensor is triggered, the first time it will trigger a few short beeps from the siren and a few flashes from the turn signals. If the motion sensor is triggered again within 15 seconds it will trigger the system to fully alarm. Out of Range Warning When the alarm has been set and the remote has not had contact with the alarm for 3 minutes the range indicator on the remote will no longer be lit up. Transmitter Battery Indicator ...
- Page 5 When the battery in your transmitter gets low, it will make a distinct tone after pressing any of the buttons to remind you to replace the batteries soon. Setting the Time on your remote Press the LOCK (lock icon) and UNLOCK (unlock icon) buttons simultaneously for 1s, the transmitter will beep, and the word "hour" will flash. Then press the LOCK (lock Icon) button to switch between "Hour" and "Minute". Press the UNLOCK (unlock icon) button to select the time. After setting is complete press the LOCK (lock icon) and UNLOCK (unlock icon) buttons simultaneously to save the time entered. Learning New Transmitters Turn the key from OFF to ON eight times and leave the key inserted. The LED will be illuminated, press any key of the first transmitter within 8 seconds, the horn will make two beeps indicating the transmitter has been learned, if learning an additional transmitter press a button on the additional transmitter within 8 seconds of the two beeps of the horn from the first transmitter. After 30 seconds the alarm will exit remote learning mode. Each alarm can only learn 2 transmitters Warranty Statement ...
- Page 6 The DGD‐WD‐X2 motor cycle alarm from Digital Guard Dawg, Inc is guaranteed to be free from defects in material and/or workmanship and to perform as advertised for a period of 1 year from the date of the purchase when properly installed, used and maintained in accordance with the installation instructions. Failure to adhere to and/or comply with the installation instructions will void all associated warranty obligations. Should any part(s) prove defective within 1 year from the date of purchase, it (they) will be replaced F.O.B our factory without charge provided the defective part(s) is returned to our factory. Digital Guard Dawg, Inc is not responsible for labor charges, loss or consequential damage of any kind in character caused by defected parts or charges incurred in the replacement or repair of defective parts by the purchaser. Careless handling, including that by freight companies, and improper installation or use may void all warranties. Question or comments regarding this product or its warranty can be sent to: Digital Guard Dawg, Inc. 705 E. Bidwell St. Suite 2325 Folsom, CA 95630 877‐246‐5395 www.DigitalGuardDawg.com ...
