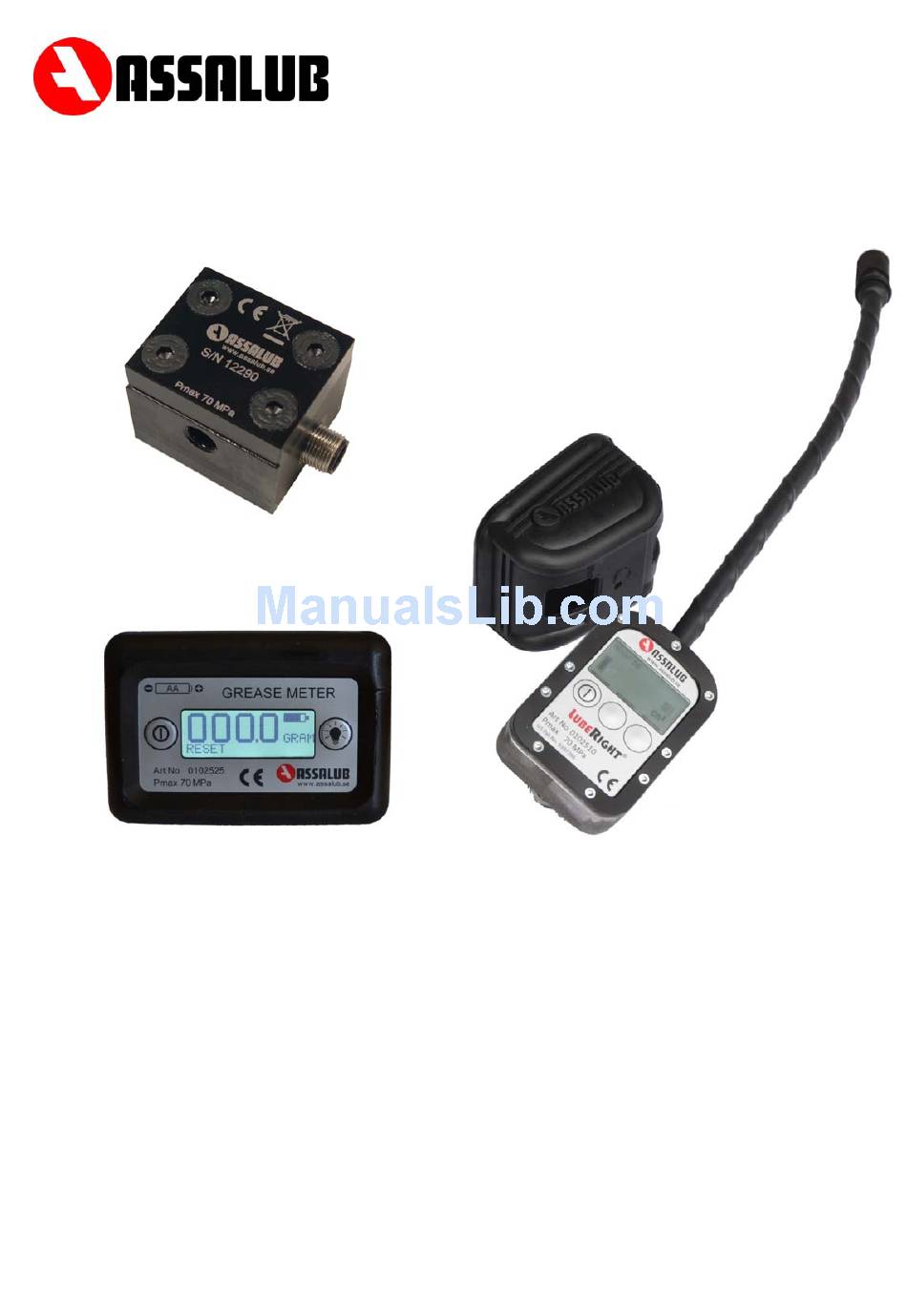

Page 1: Service Manual

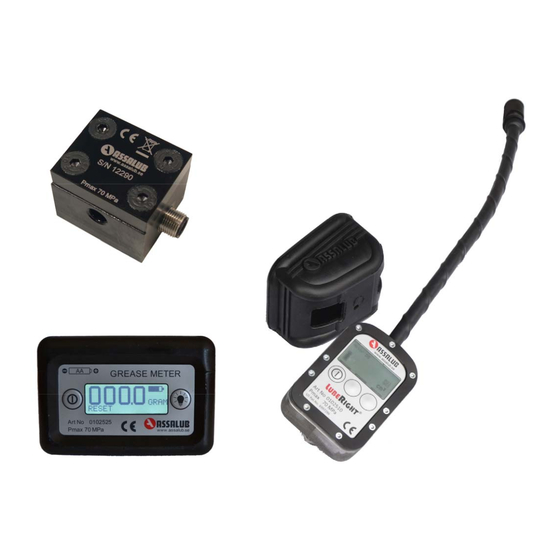

I26112-SE-14.10 Service manual Grease Meter 0102390, 0102525 Grease Meter LubeRight 0102400, 0102510 Flow Meter LubeMon 101918, 101919 ASSALUB AB, Box 240, S-597 26 ÅTVIDABERG, SWEDEN Tel. +46-(0)120-358 40, Fax +46-(0)120-152 11, E-Mail info@assalub.se www.assalub.se... - Page 2 SPARE PARTS RESERVDELAR Art. No. Designation Benämning 0122378 Cover Lock 0122380 Pinne 901444 Oval gear Ovalkugghjul 906960 Magnet Magnet 906961 Screw 6x25 Skruv 6x25 906963 O-ring 23.53x1.78 O-ring 23,53x1,78 F1533 Pin 4x10 Pin 4x10 Principle of operation The grease meter has two oval gear wheels which are made rotating by the grease flow. Inside the left wheel two magnets are mounted.
- Page 3 Disassembly Unscrew the four screws to the cover. Gently remove the cover. The cover is guided by two pins. There is an O-ring in a groove in the cover. Check the condition of the O-ring. If the meter has been exposed to higher pressures than allowed the O-ring can be damaged.
- Page 4 Isärtagning Lossa de fyra skruvarna som håller fast locket på fettmätaren. Ta försiktigt bort locket. Locket sitter monterat på två styrpinnar. En O-ring är monterad i ett spår i locket. Kontrollera att O-ringen är oskadad. Om en fettmätare utsatts för tryck högre än tillåtet kan O-ringen ha skadats. I så...
