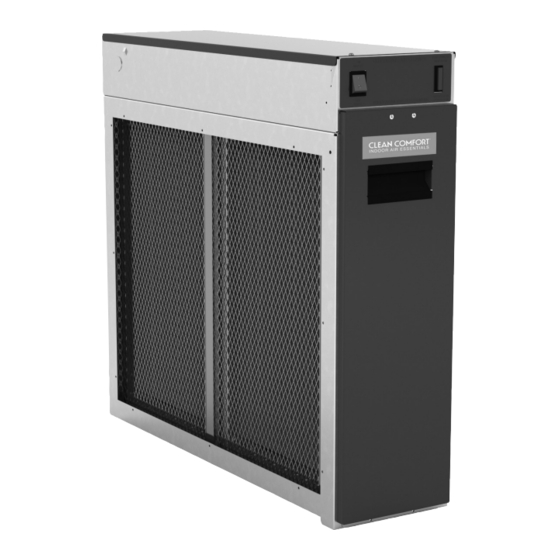

- Page 1 HIGH EFFICIENCY ELECTRONIC AIR CLEANER Installation & Operation Manual MODELS AE14-1620-51 • AE14-1625-51 • AE14-2020-51 AE14-2025-51 (120 VAC) AE14-1620-52 • AE14-1625-52 • AE14-2020-52 AE14-2025-52 (240 VAC) IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. THIS GUIDE TO BE LEFT WITH EQUIPMENT OWNER.
-
Page 2: Table Of Contents
FILTRATION INTRODUCTION INTRODUCTION ..........3 Reinstalling the Cells and Prefilters ......10 What the Air Cleaner Does ..........3 Replacing the Carbon VOC filters ........10 Features and Benefits .............3 Maintenance Parts ............10 TROUBLESHOOTING ........11 How It Works ..............3 SPECIFICATIONS ..........4 Testing For High Voltage at Power Board ......11 Measuring High Voltage at Power Board ......11 Components .............. -
Page 3: Introduction
What the Air Cleaner Does The Clean Comfort AE14 Series of Electronic Air Cleaners help remove a wide range of airborne particles as small as 0.06 micron (1/424,000 of an inch). -
Page 4: Specifications
FILTRATION SPECIFICATIONS Table 1: Specifications 120V MODELS AE14-1620-51 AE14-1625-51 AE14-2020-51 AE14-2025-51 240V MODELS AE14-1620-52 AE14-1625-52 AE14-2020-52 AE14-2025-52 House Size Area up to 2400 ft² up to 3000 ft² up to 3000 ft² up to 4000 ft² (typical) up to 223 m²... -
Page 5: Static Pressure
Figure 4: Dimensions Air Cleaner Dimensions Table 3: Dimensions — in (cm) MODEL AE14-1620-51 19.8 15.9 23.2 13.1 20.7 23.7 21.2 AE14-1620-52 (50.4) -
Page 6: Installation Location With Humidifier
FILTRATION INSTALLATION Figure 5: Air Cleaner Installation Location Allow 24 in. (60 cm) clearance for maintaining air cleaner Allow 6 in. (15 cm) clearance for power box removal. Installation Location with Humidifier prevent damage to prefilter and carbon VOC filters during removal for cleaning. -
Page 7: Wiring
FILTRATION WIRING Wiring System Check Wiring should only be performed by qualified personnel. Perform the following system check before operation. All wiring must comply with all applicable codes and 1. Replace prefilters, collecting cells and carbon VOC standards. The voltage of the power source must match filters. -
Page 8: Checkout
FILTRATION CHECKOUT When you have performed the preceding physical WARNING! checkout, proceed to do the operational checkout that follows: Electronic air cleaners use high voltage (low amperage) power. Only trained personnel should perform service. CHECKOUT – Operational Electric shock can cause injury or death. 1. -
Page 9: Maintenance
FILTRATION MAINTENANCE Maintenance Cleaning the Collector Cells 1. Remove access door, collecting cells and prefilters. It is important to perform regularly-scheduled mainte- nance of the air cleaner. For best performance of the air 2. Place cells in a laundry tub. Rinse with hot water cleaner and to keep airflow restriction low, it is recom- (maximum 120°F/49°C) and spray completely with mended that the collector cells be cleaned at least twice a... -
Page 10: Reinstalling The Cells And Prefilters
They The collecting cells and prefilters must be cleaned on a can be purchased from your Clean Comfort authorized service technician. regular basis for the air cleaner to function at its peak efficiency. -
Page 11: Troubleshooting
FILTRATION TROUBLESHOOTING Troubleshooting WARNING! The air cleaner, when operating normally with the fan running, should have both the orange power switch light When performing LIVE tests in the power box, NEVER touch any parts other than what is mentioned in the tests. and the green performance indicator light ON. -
Page 12: Testing Air Proving Switch (Aps)
3 & 4 on the APS. This removes the MODEL Plates (KVDC) Ionizer (KVDC) APS from the circuit. AE14-1620-51 4.8 - 5.3 (HV1) 7.2 - 8.0 (HV2) AE14-1625-51 Note: If the airflow through the air cleaner is less than... -
Page 13: Setting Voltage Of Power Board
FILTRATION TROUBLESHOOTING Voltage on the power board may drop below required level ⑦ Testing Cell for Bad Contacts when installation area is too damp, too cold, or if there is a 1. Open access door to air cleaner. leakage of water from a humidifier. Voltage on power board 2. - Page 14 FILTRATION TROUBLESHOOTING Table 5 Troubleshooting Guide Problem Probable Causes Remedy Unit does not System fan is not on. Turn system fan on. function correctly. Check wiring or verify that plug is inserted in Power light and Wiring improperly connected. receptacle and receptacle is powered. performance Check power switch for continuity with ohmmeter.
- Page 15 FILTRATION TROUBLESHOOTING Cells arcing Cells wet from washing. Allow cells to dry completely. excessively Wash cell. Shake particle out of cell. Replace wire, (power light and Particles lodged in cell or broken ionizing wire. if necessary. performance Ducts were not cleaned prior to installation of indicator light ON Clean ducts.
-
Page 16: Service
FILTRATION SERVICE Service Note: The power board voltage has been set before shipping. It is not usually necessary to reset the voltage A) Replacing a Performance Light to the new load. If you do need to adjust the voltage, Before replacing the performance light, turn OFF power refer to ⑤... -
Page 17: Replacing An Air Proving Switch (Aps)
FILTRATION SERVICE F) Replacing a Tungsten Ionizing Wire D) Replacing an Air Proving Switch (APS) Replacement wires are cut to the correct length and have Before replacing the performance light, turn OFF power to the air cleaner at the source. eyelets at each end for easy replacement. -
Page 18: Parts List
FILTRATION PARTS LIST SERVICE Table 6: Air Cleaner Components List For more information on ordering parts, call 1-800-267-8305 or your installing contractor. AE14-1620-51 AE14-1625-51 AE14-2020-51 AE14-2025-51 Part Description AE14-1620-52 AE14-1625-52 AE14-2020-52 AE14-2025-52 1 Power Switch R1-0205 R1-0205 R1-0205 R1-0205 2 Safety Interlock Switch... - Page 19 FILTRATION NOTES: WWW.CLEANCOMFORT.COM IO-AE14-5...
-
Page 20: Limited Warranty
VOC filters, which will have to be replaced from 1. Normal maintenance including cleaning of electronic collect- time to time depending upon the use. This Clean Comfort™ ing cells and replacement of prefilters and carbon VOC filters product must not have been moved from the site of original as outlined in the Installation and Maintenance Instructions.
