- Page 1 OPERATING MANUAL JDS6600 Series Digital Control Dual-channel DDS Signal Generator Rev1.0 MAY 2017...
-
Page 2: Table Of Contents
Contents 1.Inspecting Package Contents..............1 2.Summary....................2 2.1 Brief Introduction......................2 2.2 Model Introduction....................... 2 2.3 Dimention........................2 2.4 Technical parameters.....................3 3.Instrument Introduction................6 3.1 Front Panel Introduction....................6 3.2 Rear Panel Introduction....................6 3.3 Display Interface Introduction..................7 3.4 Button fuction Introduction..................7 4.Operation Introduction................ -
Page 3: Inspecting Package Contents
1.Inspecting Package Contents When you get a new JDS6600 series dual channel DDS signal generator, please inspect device as follows: 1.1 Inspect the shipping container for damage. If there are damages in the container or foam, keep them until the whole machine and the accessories passing the electrical and mechanical tests. -
Page 4: Summary
2. Summary 2.1 Brief Introduction JDS6600 series DDS signal generator can generate sine wave, square wave, triangle wave, pulse wave, and arbitrary wave etc. The frequence will be upto 60MHz. And it has duty-cycle correction, amplitude modulation function and frequency sweep function, etc. It can show output signal, amplitude and frequency in the same time. This series has amplitude frequency characteristics, and the appearance is very delicate and beautiful. -
Page 5: Technical Parameters
Technical parameters Frequency Characteristics JDS6600-15M JDS6600-30M JDS6600-40M JDS6600-50M JDS6600-60M Sine frequency range 0~15MHz 0~30MHz 0~40MHz 0~50MHz 0~60MHz Square frequency range 0~15MHz 0~15MHz 0~15MHz 0~15MHz 0~15MHz Triangle frequency range Pulse frequency range CMOS/TTL digital frequency range 0~6MHz 0~6MHz 0~6MHz 0~6MHz 0~6MHz Arbitrary wave frequency range ≤25nS ≤20nS... - Page 6 Ramp wave Linearity ≥98%(0.01Hz~10kHz) Output Characteristics Frequency≤10MHz 10MHz≤Frequency≤30MHz 30MHz≤Frequency Amplitude range 2mVpp~20Vpp 2mVpp~10Vpp 2mVpp~5Vpp Amplitude resolution Amplitude stability ±0.5%/5 h Amplitude flatness ±5%(<10MHz); ±10%(>10MHz) Waveform Output Output impedance 50Ω±10%（typical） Protection All the signal output termianl can be shorted within 60s DC Offset Output 0.4V＜Output Amplitude≤4V...
- Page 7 Sweep channel CH1 or CH2 Sweep type linear sweep、log sweep Sweep time 0.1s~999.9s Setting range User settings Sweep direction Forward, Backward and Roundtrip Burst function Number of pulses 1-1048575 Burst mode Manual Trig、CH2 Trig、Ext.Tring(AC) 、Ext.Tring(DC) General technical parameters Display Display type 2.4 inch TFT color LCD Quantity 100 groups...
-
Page 8: Instrument Introduction

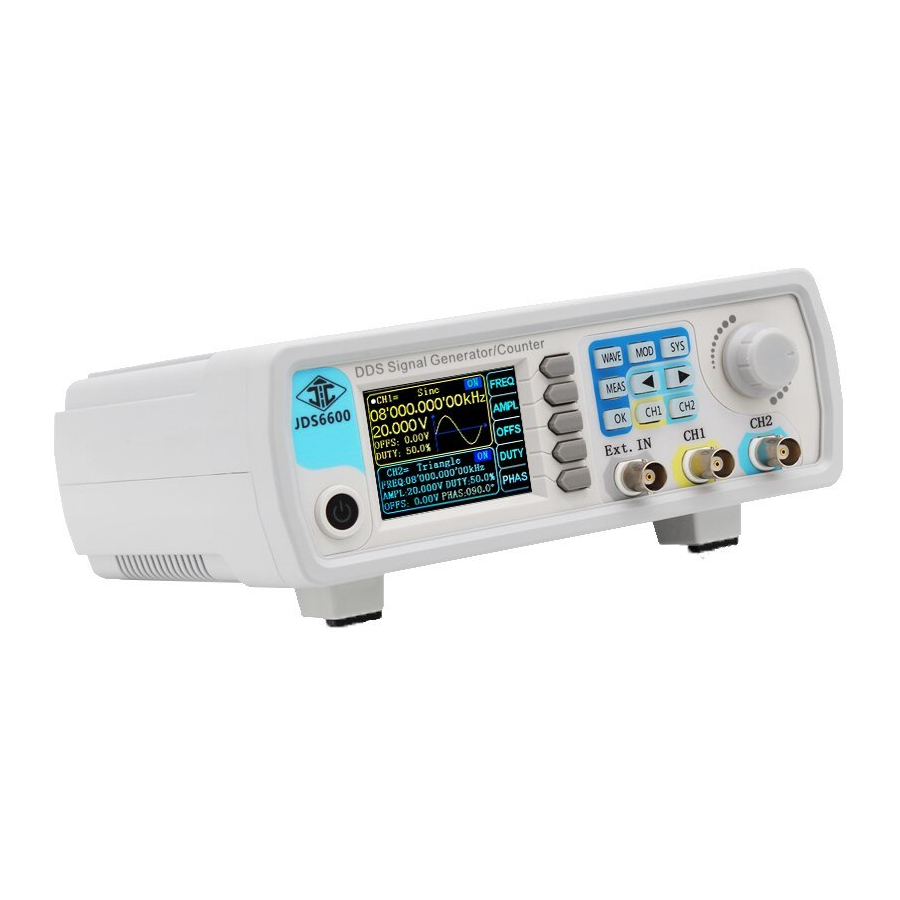

3. Instrument Introduction 3.1 Front Panel Introduction... -
Page 9: Display Interface Introduction
3.2Display Interface Introduction 11-CH1 Parameters 12- CH2 Parameters 13-Wave Display 14-Current Channel Output State 15-Function list ofSoftkey 16-Phase angle between CH1 and CH2 3.3 Button function Introduction name Introduction Function softkey Function softkey can activate the corresponding function on the screen Enter main interface, or set waveform of currentchannel Fast switch between measurement mode interface and main interface Fast switch betweenmodulation mode interface and main interface... -
Page 10: Operation Introduction
4. Operation Introduction Press the power button, the instrument starts and enters welcome interface, and then enters language selection interface. Press corresponding softkey to choose language, and then enter the main interface lastly. When you start the instrument in the future, there is no language selection interface, entering the main interfac directly. Welcome Interface Language Selection Interface 4.1 Introduction of Main Interface... -
Page 11: Introduction Ofsystem Setting Interface
Introduction ofsystem setting interface 4.4.1 Recall and store：it can recall and store current waveform parameter to the specific place, rotate knob to the specific place. When you want to recall, store and delate, press corresponding softkey. 4.4.2 Sync: When sync, CH1 is the object of operation. CH2 parameter will be changed with the changes of CH1 parameter.
