C2 & C3: LI1 and LI2
These connectors are serial connections to the ICOS light interface (LI) boards.
C4: PIO
This connector supports four groups of 8 bit PIO that can be programmed as an input or output.
The MVS software does not yet support this.
C5: JTag
This connector is used for in circuit emulation, programming primary software for testing in
production environment or for boundary scan to check the processors.
C6 & C7: MCBSp2 and MCBSp1
This is a multi-channel buffered serial port: it is a standard serial port for connecting multiple
TMS320C6202 DSP processors. The MVS software does not yet support this port.
C8 & C9: Duart B and Duart A
These ports are used for serial communication with the board and can be set in menu mode,
message mode or host mode.

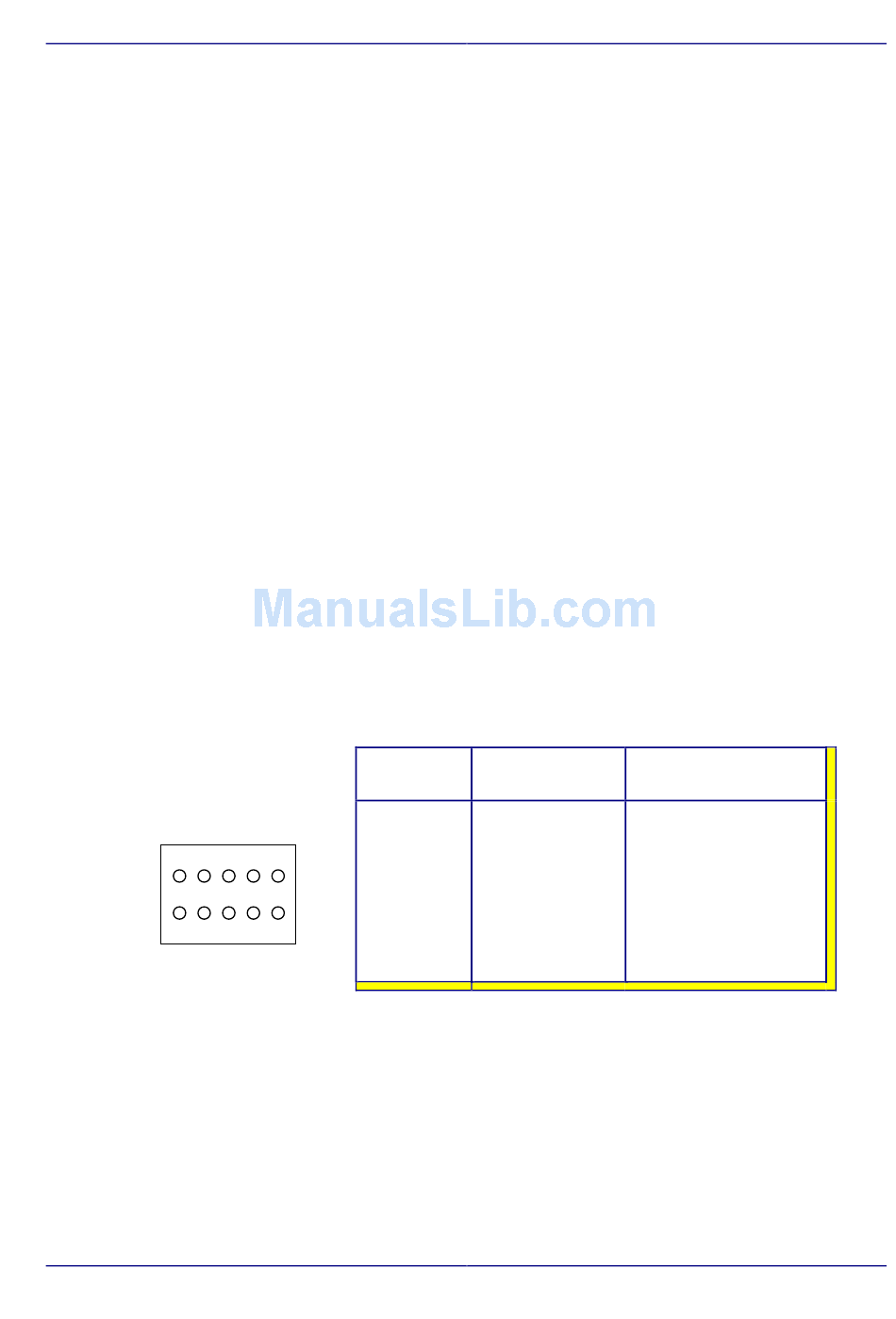

Pin assignments:
1 2
10 9
C10: Can Bus
This is not supported.
C11:
Connector used for diagnostics purposes in production (at ICOS).
MVS6000 System Level Manual/1.0/Dec-2001
Pin #
2
3
3 4 5
5
8
9
8 7 6
1,4,6,7,10
Signal name Function
RXD Receive data
TXD Transmit data
GND Ground
CTS Clear to send
RTS Request to send
NC Not connected
