Kidsaw JCB Single Digger Bed Assembly Instruction

Download this manual

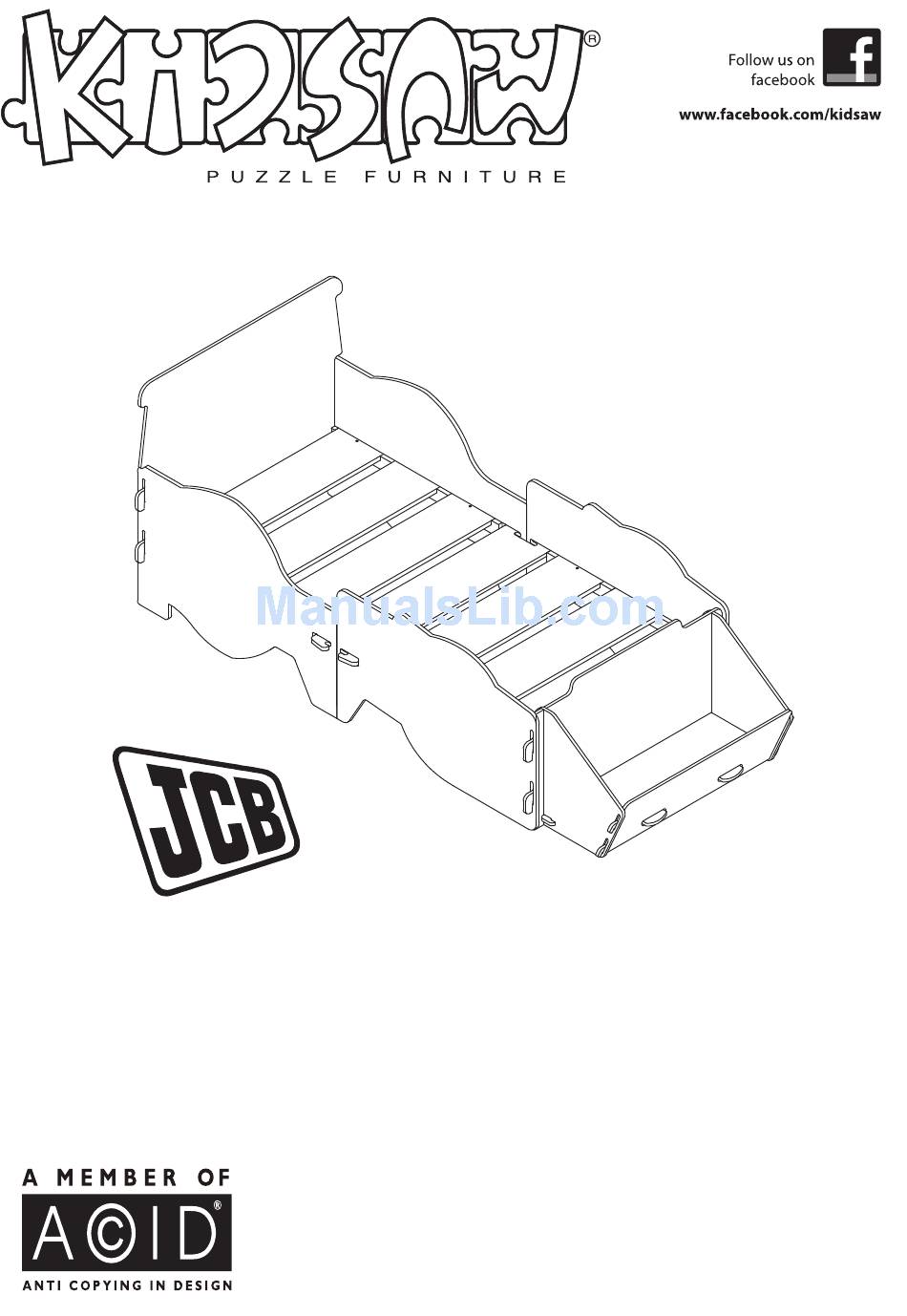

JCB DIGGER SINGLE BED

ASSEMBLY INSTRUCTION

WWW.KIDSAW.CO.UK

All copyright, design rights and intellectual

property rights existing in our designs and

products and in the images, text and design

of our website / marketing material are and

will remain the property of Kidsaw Limited.

We will treat any infringement of these

rights seriously."

JCBB - ASSEMBLY INSTRUCTION - 1

Need help?

Do you have a question about the JCB Single Digger Bed and is the answer not in the manual?

Page 1 / marketing material are and will remain the property of Kidsaw Limited. We will treat any infringement of these rights seriously." JCBB - ASSEMBLY INSTRUCTION - 1...
Page 2 A) L ist of Parts Right Side Rail x 1 Left Side Rail x 1 Center Support x 1 Screw x 8 Slats x 2 Footboard x 1 Slats with screw hole x 4 Front panel x 1 Side panels x 2 Base panel x 1 Headboard x 1 JCBB - ASSEMBLY INSTRUCTIONS - 2...
Page 3 ADULT ASSEMBLY REQUIRED B ) Steps to Assembly Step 1 – Slot both side rails into headboard and footboard Step 3 - Place center support on in between side rails JCBB - ASSEMBLY INSTRUCTIONS - 3...
Page 4 Step 5 – For front storage B ) Steps to Assembly box assembly, hook front panel into side panels, then slide into base panel. Step 4 – Lift whole box and hook onto footboard of the bed. Step 6 – Assembly complete JCBB - ASSEMBLY INSTRUCTION - 4...
