Summary of Contents for Warmup TW080

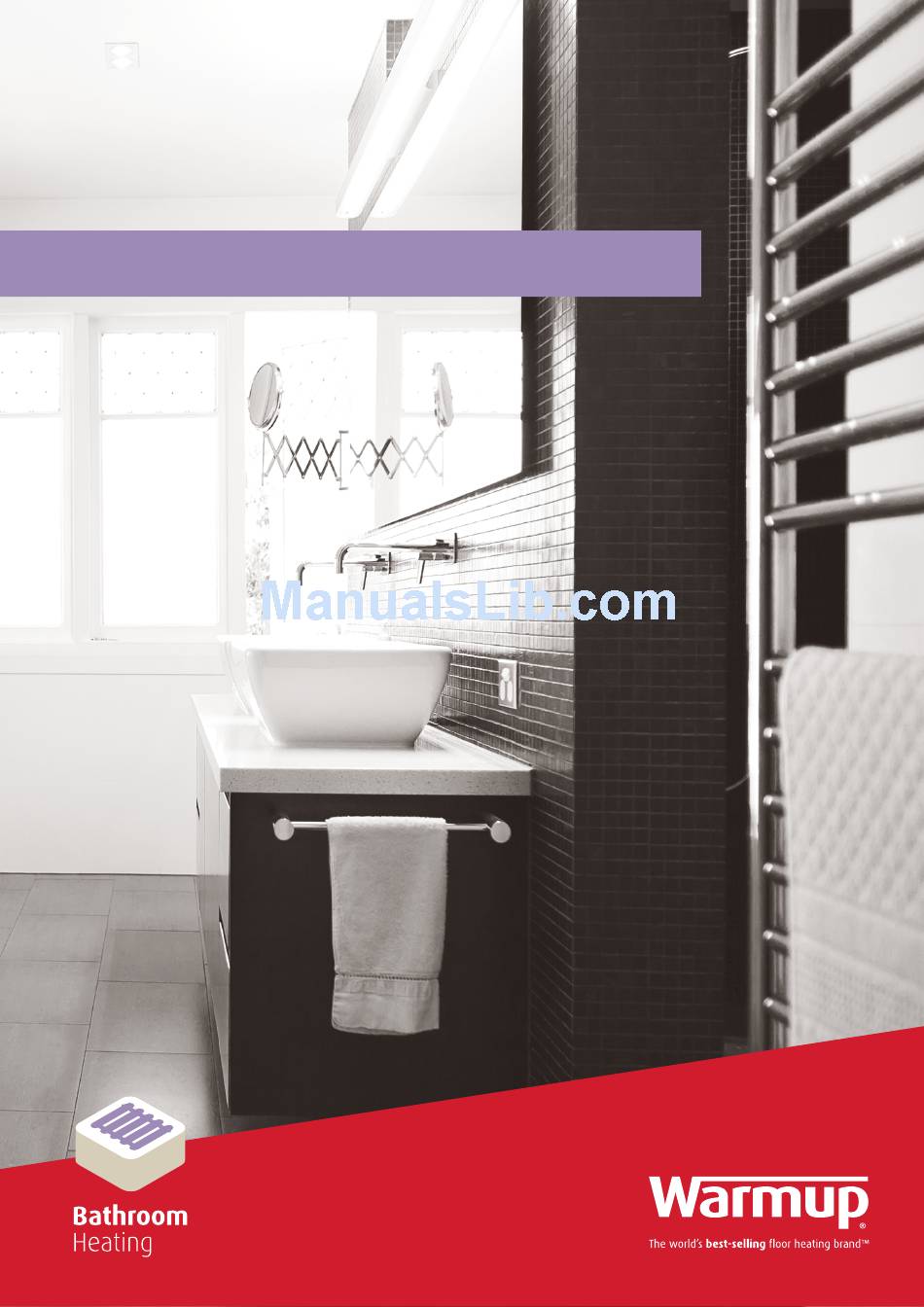

- Page 1 TOWEL WARMERS INSTALLATION INSTRUCTIONS Towel Warmer Installation Instructions...
-
Page 2: Applicable Models
When combining a towel warmer to a Warmup floor heating system you can conveniently connect the device to your 3iE or 4iE controller. -
Page 3: Your Package Includes
Set your meter to 200 ohms and put needles or clips on each conductor, to measure the resistance from one to the other. Your package includes: Contents for TW00X Mounting Bracket WARMUP INC. USA: us@warmup.com | Tel.: 1-888-927-6333 | www.warmup.com CANADA: ca@warmup.com | Tel.: 1-888-592-7687 | www.warmup.ca... -
Page 4: Code Requirements
It is recommended that all units are protected via a GFCI circuit. The GFCI can be included on your breaker at the panel, or built into the thermostat like the Warmup 3iE and 4iE thermostats. WARMUP INC. USA: us@warmup.com | Tel.: 1-888-927-6333 | www.warmup.com... - Page 5 Make sure your marks are level and square as these will Screenshot of the Youtube video “Installing a Warmup Towel Warmer - 5 Contractors Tips by Warmup”. determine where you will secure the device to the wall.
- Page 6 If you choose to locate the J-box elsewhere than at the recommended bottom right of the towel warmer, follow the instructions below. You can also wire it directly into the switch box where you control your towel warmer, or into the box where your Warmup 4iE thermostat is mounted.
-
Page 7: Mounting Instructions
Mount 4 towel bars at 160mm spacing (6-1/2”) or up to 8 bars at 80mm spacing (3-1/4”). To connect up to 8 bars at 6-1/2” spacing, mount two mounting brackets. Warmup will supply you with one bracket with each set of 4 towel bars. - Page 8 With TW001 and TW002 models, the j-box or connection point will be located away from the bottom right of your towel warmer. This can either be near the appliance or directly into a switch box or gang box hosting your Warmup 4iE controller (optional).
-
Page 9: Product Warranty
Any heated towel warmer that is found to be defective due to substandard materials and/or workmanship within 3 years of purchase will be replaced. To make a claim under this warranty, contact Warmup at (888) 927-6333. Your claim will be assessed based on the information you provide. - Page 10 120V 0.5A 240Ω L(Black)1.8m N(White)1.8m E(Green)1.8m CODE TUBE SHAPE BARS FINISH VOLTAGE AMPERAGE RESISTANCE TW081 Square Polished Stainless 120V 0.5A 240Ω L(Black)1.8m N(White)1.8m E(Green)1.8m WARMUP INC. USA: us@warmup.com | Tel.: 1-888-927-6333 | www.warmup.com CANADA: ca@warmup.com | Tel.: 1-888-592-7687 | www.warmup.ca...
- Page 11 CODE TUBE SHAPE BARS FINISH VOLTAGE AMPERAGE RESISTANCE TW080 Square Polished Stainless 120V 0.67 180Ω 1200 115.4 1076.7 953.3 1200 1200 L(Black)1.8m N(White)1.8m E(Green)1.8m WARMUP INC. USA: us@warmup.com | Tel.: 1-888-927-6333 | www.warmup.com CANADA: ca@warmup.com | Tel.: 1-888-592-7687 | www.warmup.ca...
- Page 12 120V 0.5A 240Ω L(Black)1.8m N(White)1.8m E(Green)1.8m CODE TUBE SHAPE BARS FINISH VOLTAGE AMPERAGE RESISTANCE TW091 Round Polished Stainless 120V 0.5A 240Ω L(Black)1.8m N(White)1.8m E(Green)1.8m WARMUP INC. USA: us@warmup.com | Tel.: 1-888-927-6333 | www.warmup.com CANADA: ca@warmup.com | Tel.: 1-888-592-7687 | www.warmup.ca...
- Page 13 TOWEL WARMER INSTALLATION INSTRUCTIONS CODE TUBE SHAPE BARS FINISH VOLTAGE AMPERAGE RESISTANCE TW092 Round Polished Stainless 120V 0.75A 160Ω WARMUP INC. USA: us@warmup.com | Tel.: 1-888-927-6333 | www.warmup.com CANADA: ca@warmup.com | Tel.: 1-888-592-7687 | www.warmup.ca...
- Page 14 AMPERAGE RESISTANCE TW107 Square Brushed Stainless 120V 0.67A 180Ω CODE TUBE SHAPE BARS FINISH VOLTAGE AMPERAGE RESISTANCE TW110 Square Brushed Stainless 120V 1.0A 131Ω WARMUP INC. USA: us@warmup.com | Tel.: 1-888-927-6333 | www.warmup.com CANADA: ca@warmup.com | Tel.: 1-888-592-7687 | www.warmup.ca...
- Page 15 120V 0.25 1600Ω L(Black)900mm N(White)900mm E(Green)900mm CODE TUBE SHAPE BARS FINISH VOLTAGE AMPERAGE RESISTANCE TW002 Square Brushed Nickel 120V 0.25 1600Ω L(Black)900mm N(White)900mm E(Green)900mm WARMUP INC. USA: us@warmup.com | Tel.: 1-888-927-6333 | www.warmup.com CANADA: ca@warmup.com | Tel.: 1-888-592-7687 | www.warmup.ca...
- Page 16 I ca@warmup.com...
