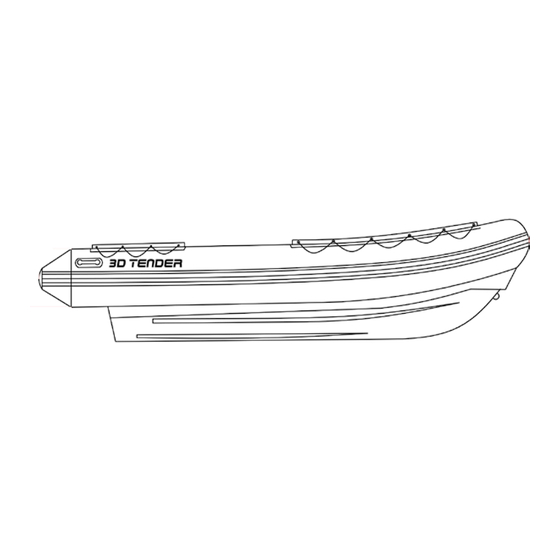

3d XPRO 490 Owner's Manual

Table of Contents

Quick Links

OWNER MANUAL

Summary :

Introduction ........................................................................................................................................................................ 2

Warranty Informations................................................................................................................................................. 2

Safety Alerts ...................................................................................................................................................................... 4

Safe boating recommandations........................................................................................................................... 5

Craft data ............................................................................................................................................................................. 7

Transporting....................................................................................................................................................................... 9

Operation ........................................................................................................................................................................... 9

Outboard motor ........................................................................................................................................................... 14

Maintenance..................................................................................................................................................................... 14

Storage .............................................................................................................................................................................. 17

Service assistance ........................................................................................................................................................ 17

XPRO

445, 490, 535, 589

www.3dtender.com

Table of Contents

Summary of Contents for 3d XPRO 490

Page 1: Table Of Contents
® OWNER MANUAL XPRO 445, 490, 535, 589 Summary : Introduction ..................................2 Warranty Informations..............................2 Safety Alerts ..................................4 Safe boating recommandations........................... 5 Craft data ..................................... 7 Transporting..................................9 Operation ................................... 9 Outboard motor ................................14 Maintenance..................................14 Storage ....................................17 Service assistance ................................
Page 2: Introduction
INTRODUCTION Congratulations on your purchase of a 3D Tender Boat. We are convinced it will bring years of boating plaisir. However, for your security and to ensure that you gain maximum satisfaction, please read this user manual carrefully. It contains all the safety and operation instructions that you need to get the most out of your new 3D Tender boat.
Page 3 If the service provided is not covered by this warranty, the purchaser shall pay for all related labor and material, and any other expenses associated with that service. The purchaser shall not, unless requested by 3D Tender, ship the product or parts of the product directly to 3D Tender.
Page 4: Safety Alerts
8. Using the boat for races or any activity of competition cancel the limited warranty. 9. Works of assembly and disassembly the equipments of the boat, as well as transportations to, and from the service station are at the expense of the owner. 10.
Page 5: Safe Boating Recommandations
SAFE BOATING RECOMMANDATIONS : 1 - Always wear a life jacket Local authorities require that you carry an approved flotation device, or life jacket, for each per- son aboard your vessel. We recommend wearing a life jacket at all times while boating because you never know when an accident may occur.
Page 6: Fire Safety
Danger When operating, passengers must avoid standing up or hanging appendages outside of the boat. Leaking fuel is a fire hazard, inspect fuel system regularly. Shut off the engine before boarding from the water. Warning Shall the operator or passenger fall out the bot, the possibility of serious injury or death from being run over by the boat can be greatly reduced by stopping the engine imediately.
Page 7: Craft Data
CRAFT DATA : Boat specifications : Model XPRO 589 XPRO 535 XPRO 490 XPRO 445 A Overall length (cm) B Overall beam (cm) C Inside length (cm) D Inside beam (cm) E Bow locker width (cm) F Stern height (cm)
Page 8 Manufacturer’s plate : a - Name of manufacturer b - Model c - Category d - Maximum number of persons e - Maximum load capacitiy f - Maximum motor power g - Recommended working pressure h - HIN : Hull Identification Number The manufacturer’s plate is located on the inside of the boat transom.
Page 9: Transporting
TRANSPORTING : For optimum handling, the trailer must be properly loaded and balanced. Keep the center of gravity low for best handling. Approximately 60 percent of the boat’s weight should be positioned on the front half of the trailer and 40 percent in the rear. The boat should also be balanced from side to side.
Page 10 Inflation : a - Valve cap b - Plunger To inflate the chamber, first unscrew the valve cap by turning a quarter of a turn counterclock- wise. Check that the plunger in the center of the valve is closed (upper position) . If open (spring compressed, down postion) push the plunger down and rotate to the closed position.
Page 11: Load Distribution
Use of drain plug Your boat is equipped with a drain plug installed on the transom. When driving the boat, open the plug to drain the water on the floor. The water will automatically be drained by venturi effect. When launching the boat or stopping on the water, we recommend you keep the plug sealed.
Page 12 - Make sure sure the bilge / deck is dry, drain the water othewise. - Make sure the tube is correctly inflated. - Make sure you have the correct weight distribution. Sea conditions may require passengers to move forward to the boat to get the boat on plane before they return to their initial positions. The outboard engine plays a big role in the performance of the boat.
Page 13 Towing Your boat can be towed using the towing eye located at the bow. The boat must be empty when towed. Remove outboard motor, fuel tank and equipment. No passenger should be aboard. The boat should be towed at low speed. Make sure to use a tow line that is rated at least 5 times the weight of the boat being towed.
Page 14: Outboard Motor
Beaching We recommended the boat not to be powered onto the beach, dragged accross rocks, sand, gravel or pavement as damage to the fabric and / or hull may result. OUTBOARD MOTOR : Install the outboard motor on the transom so that it is positionned as close to the center as possible.
Page 15 - Repairs should, however, be undertaken in a well ventilated area Repair PVC boat : 3D Tender boats that haves tubes constructed with PVC fabrics require PU based adhesive and RC hardener. Acetone solvant is recommended to prepare the surface before gluing. Use only recommended solvant and adhesive.
Page 16 Upholstery 3D TENDER is using marine grade upholstery fabric to offer best resistance to UV and ageing. Periodic washing with mild detergent and warm water is the best way to keep your upholstery look good. Special vinyl cleaner can also be used to remove difficult stains. No fabrics can last forever when constantly exposed to the elements.
Page 17: Storage
Do not cover boat before it is completely dry or mildew could grow under the cover and damage the tube material. The covers should be ventilated and the drain plug left out. SUPPORT SERVICE For assistance, please contact your 3D Tender dealer or visit our website : www.3dtender.com www.3dtender.com...

This manual is also suitable for:

Xpro 445 Xpro 535 Xpro 589
