Summary of Contents for OPCOM OPL403
-

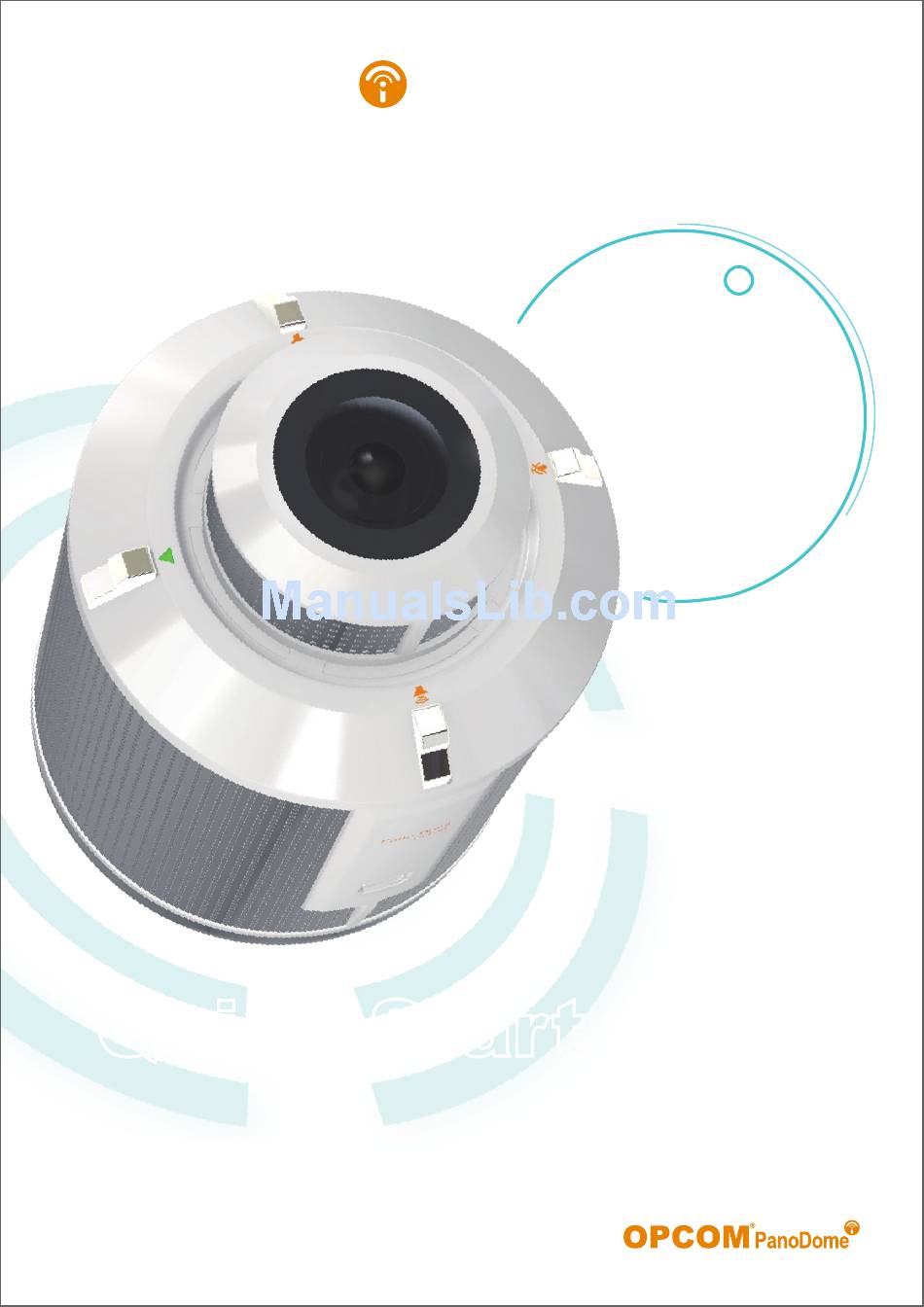

Page 1: Quick Start Guide
PanoDome Panorama Live Video Hi Sensitivity Tri-Microphone Surround Speaker Quick Start Guide Quick Start Guide... -
Page 2: Parts List
OPL403 Quick Guide Parts List Part Description 8-Mega pixel 360°surround camera for conference call 1. Camera 2. Three way 8-Mega pixel 360°surround camera for conference call microphones Power on: Green light 3. LED light Four function buttons for system turn on/off , volume+/-, 4. - Page 3 OPL403 Quick Guide Hard Key Definition Button Icon Function Operation System Power On / Off 0.5sec Volume - 0.5sec Volume + 0.5sec Microphone Mute 0.5sec...
-
Page 4: Package Contents
OPL403 Quick Guide Package Contents OPL403 System Cable PanoDome Application USB Flash Drive DC 5V Power Adaptor Base Plate Quick Start Guide User Manual... - Page 5 OPL403 Quick Guide Safety & Placement 0~10 years Children prohibition No fire / chemicals No humid...
- Page 6 Installation & Operation Installation & Operation Please Scan the QR Code to See the Assembly Video. 此為示意圖未確認 Step1 Using OPCOM USB flash driveinsert PanoDome application. Step2 Connect PanoDome to other device ( Speaker, Microphone, Micro USB and USB3.0) USB 3.0...
- Page 7 OPL403 OPL403 Quick Guide Quick Guide Installation & Operation Step3 Start PanoDome application： Double click PanoDomeicon then you will see PanoDome application window. PanoDome Full Mode Auto Zoom Power OFF：Long press power button.
-
Page 8: Application Functions
OPL403 Quick Guide Application Functions PanoDome Full Screen Full Full Mode Auto Zoom in 1 Time Zoom Zoom in 2 Time Auto Zoom in 3 Time Panorama view 360° Side view 200° Zoom in 4 Time 3 mode can select:... - Page 9 OPL403 Quick Guide Recommended Usage Areas De-warp View360°: Put the device body on the middle of the conference table. PanoDome Full Mode Auto Zoom Panorama view 360° Dewarp Side View 200°: Hook the Base Plate on the wall in the front of conference table.
- Page 10 OPL403 Quick Guide Production Spec Model No. OPL403 Camera 8Mega Pixels , 2400p15 ,1200p30 Resolution Focus Range: 50cm~Infinity center 650+ TV Line Speaker and • 3W speaker 360° surrounding voice • 3 pcs Microphones High sensitivity (-32db) to cover Microphone 360°...
