Summary of Contents for Air Techniques 6D

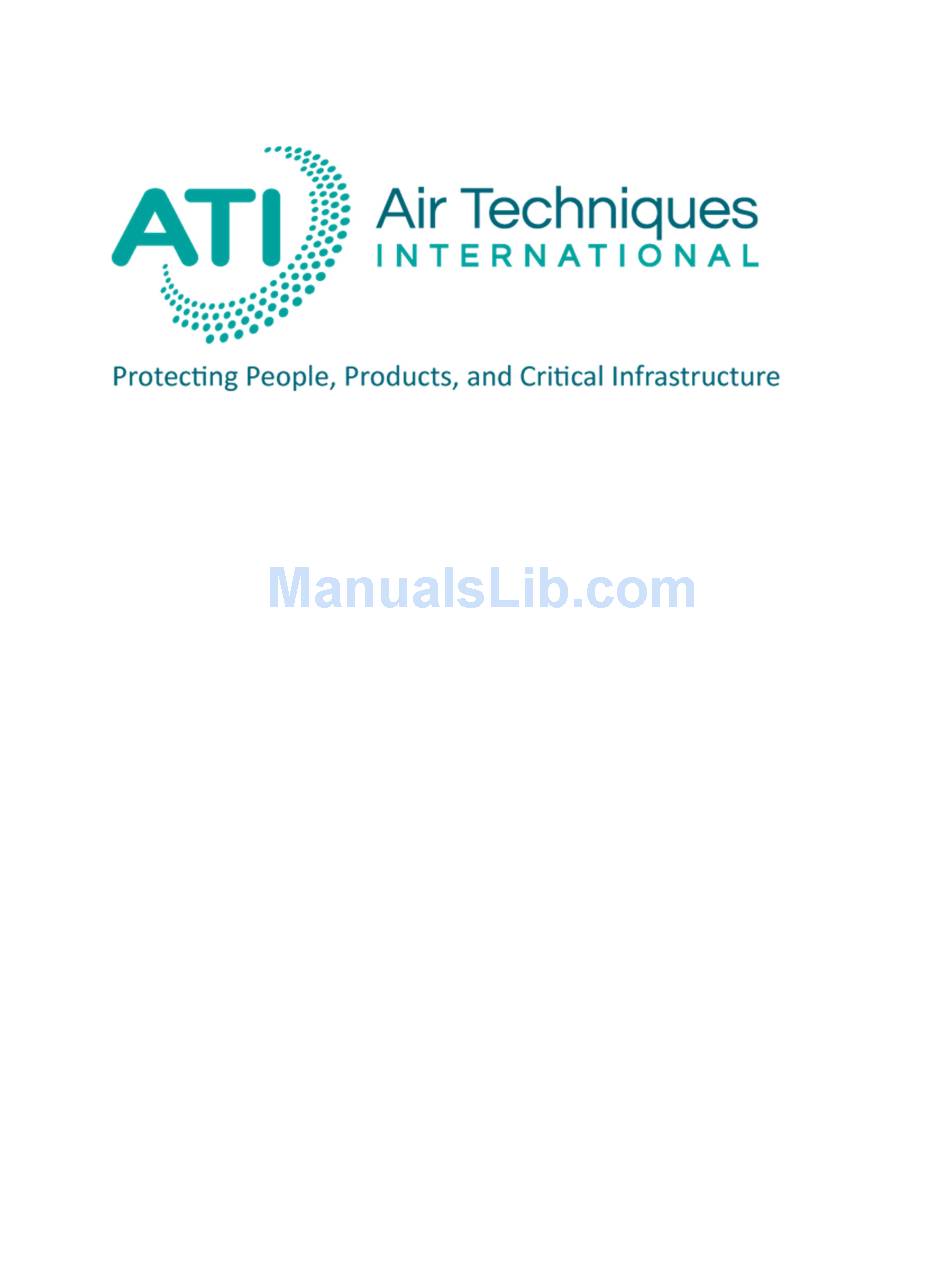

- Page 1 Laskin Nozzle Generator Operation and Maintenance Manual...
- Page 2 (Page intentionally left blank) 1800223 E...
-
Page 3: Table Of Contents
Contents Chapters CHAPTER 1 Introduction and Precautions Scope of manual Definitions Intended Use User Responsibility Precautions Definiciones Precauciones Définitions Précautions Definitions 定义 Precautions 预防 Definitioner Försiktighetsåtgärder CHAPTER 2 Laskin Nozzle Aerosol Generator Overview How the Generator Operates CHAPTER 3 Unpacking the Generator Unpacking the Generator Initial Setup Description of the Generator Controls and Indicators... - Page 4 Figure 3 Side Panel Features Figure 4 Removing the Pressure Gauge Figure 5 Pressure Gauge Shown Removed Figure 6 Pressure Gauge Tubing Removal Tables Table 1 Packaged Items for the 6D Generator Table 2 Calibrated Pressure Gauge Replacement Kit 9300250 1800223 E...
-
Page 5: Chapters
Scope of manual These instructions cover the specifications, features, operation, maintenance, and troubleshooting for the 6D Laskin Nozzle Aerosol Generator. These instructions also contain important information required for operation of the generator. Before using this equipment, all personnel associated with the... -
Page 6: Intended Use
6. verify the type and quality of liquid aerosol reagent to be used with this product. Precautions Warning – Shipping Hazard Do not ship the 6D with liquid aerosol reagent inside the reservoir. Drain the 6D of all liquid aerosol reagents before shipping. 1800223 E... -
Page 7: Definiciones
Nota Indica que se esta suministrando información de utilidad. Precauciones Peligro – Riesgos al Despacho No despache la 6D con líquido de aerosol adentro del reservorio. Drene la 6D de todos los líquidos de aerosol antes de despacharla. 1800223 E... -
Page 8: Définitions
Indique que les informations utiles sont fournies. Précautions Avertissement – Risque liés à l’expédition Ne pas expédier le générateur 6D avec du réactif liquide d'aérosol à l'intérieur du réservoir. Vidangez le générateur 6D de tout le réactif liquide d'aérosol avant l'expédition. 1800223 E... -
Page 9: Definitions 定义
Definitions 定义 在这里定义了在这本说明书中警告,小心,注意 警告 表示如果不按照指导操作.会引起个人人身伤害甚至死亡 的可能 性很强. 小心 表示如果不按照指导操作.可能会损害仪器 注意 表示提供了有用的信息. Precautions 预防 警告—运输危险 当6D悬浮粒子产尘仪的贮液罐有液体试剂时,不要运输. 在运输之 前,排掉所有的液体试剂. 1800223 E... -
Page 10: Definitioner
Varsamhet Innebär att skador på utrustning kan inträffa om instruktionerna inte följs. Notera Innebär att användbar information ges. Försiktighetsåtgärder Varning – Transportrisk Transportera ej 6D med testaerosol kvar i behållaren. Töm 6D på all test aerosol innan transport. 1800223 E... -
Page 11: Laskin Nozzle Aerosol Generator Overview
(0.5 or 1.5 nozzles). A user-controlled precision needle valve adjusts the nozzle pressure and aerosol output. Aerosol exits the rear of the 6D Generator through a 3 inch Sanitary Flange. This flange is secured using a female ¾ NPT thread and may be substituted with another hose adapter or fitting. -
Page 12: Unpacking The Generator
ATI Customer Service at (410) 363-9696 or email at Info@atitest.com. Caution Do not lift the 6D unit using the sanitary flange or cord wrap bracket. Damage to the unit may occur. Note ATI recommends that you save all packing materials for future use, such as shipping the unit back for annual service. -
Page 13: Initial Setup
Initial Setup improved ergonomics aerosol output characteristics, please install the elbow fitting and sanitary flange hand-tight as shown. Use of the supplied elbow is strongly recommended (including when using an alternate outlet or hose adapter), and omission of the elbow may result in undesirable aerosol wetness. -
Page 14: Description Of The Generator Controls And Indicators
Description of the Generator Controls and Indicators Front Panel Connectors and Indicators 1. ON/OFF 4. Pressure Power Gauge Switch 2. Jet Control 5. Jet Knob Pressure Knob 3. Main Power Input 6. Cord Wrap Storage Bracket Figure 1 Front Panel Features Power ON / OFF switch –... -
Page 15: Rear Panel Features
Pressure Valve Knob – Adjusts compressed air pressure supplied to the Laskin Nozzles. Cord Wrap Storage Bracket – May be used to stow the unused power cord during transportation or storage. Rear Panel Features 7. Generator Tank Fill Port 8. Aerosol Output Port 9. -
Page 16: Side Panel Features
Side Panel Features 10. Liquid Level Indicator Figure 3 Side Panel Features Liquid Level Indicator – Provides the liquid aerosol reagent level in the reservoir. The two small notches next to the indicator window indicate the MINIMUM and MAXIMUM oil fill levels. 1800223 E... -
Page 17: Operating Instructions
Verify that aerosol tank output is not blocked Caution Do not lift the 6D unit using the sanitary flange or cord wrap bracket. Damage to the unit may occur. Caution Do not obstruct ventilation openings on the front, sides, or rear panels. -
Page 18: Filling The Liquid Aerosol Reagent Reservoir
The number of active jets can also be adjusted before or during use. Note For the protection of the user and the equipment, the 6D is equipped with a overpressure relief valve. At excessively high pressure settings, the valve may vent excess flow to prevent pressure buildup, resulting in a loud, pulsing noise. - Page 19 The 6D unit must remain upright if the vent seal is trimmed, or the glycerin liquid filling the gauge will leak out...
-
Page 20: Shutdown And Transportation Procedures
5. Remove the drain plug again and tilt the unit each direction side-to-side and also once front and back to free any trapped alcohol. 6. Replace drain plug and tighten. The 6D is ready for use with a different liquid aerosol reagent. 1800223 E... -
Page 21: Preventative Maintenance (Perform After Every Use)
Preventative Maintenance (perform after every use) In order to keep the unit operating satisfactorily, perform the following procedure after every use: Clean and wipe off the outside of the unit of any residual liquid aerosol reagent with a non- flammable cleaning agent. Check the unit for liquid aerosol reagent leakages. -
Page 22: Maintaining And Servicing The Generator
CHAPTER 5 Maintaining and Servicing the Generator Replacing the Pressure Gauge A replacement, calibrated pressure gauge may be ordered from ATI as a kit (see Table 2). The part number is 9300250. Ordering a new kit will allow the unit to be out of service for only a few minutes while updating the gauge calibration. -
Page 23: Figure 5 Pressure Gauge Shown Removed
Rubber Vent Seal Figure 5 Pressure Gauge Shown Removed Figure 6 Pressure Gauge Tubing Removal Remove the plastic tubing from the push-to- connect fitting on the rear of the pressure gauge by pressing down on the release collar (circled in image below) while simultaneously pulling the tubing out of the fitting To install pressure gauge, push tubing firmly into the elbow fitting, performing a gentle tug... -
Page 24: Table 2 Calibrated Pressure Gauge Replacement Kit 9300250
Venting should not be necessary for most users. The 6D unit must remain upright if the vent seal is trimmed, or the glycerin liquid filling the gauge will leak Quantity... -
Page 25: Appendix A Specifications
APPENDIX A Specifications Physical Characteristics Dimension (L x W x H) 14.8 in 10.1 in x 10.9 in 37.4 cm x 25.7 cm x 27.6 cm Weight 34 lb (15.4 kg) empty of oil, including sanitary flange 36 lb (16.4 kg) full of liquid aerosol reagent Liquid Aerosol Reagent 32 fluid ounces (1 quart) (945mL) -
Page 26: Operating Conditions
Operating Conditions Ambient Temperature 0 to 40º C (with no condensation or icing) Ambient Pressure Standard Atmosphere Ambient Humidity 5% to 85%RH up to 31º C, decreasing linearly to 50%RH at 40º Storage requirements -25 to 55º C (with no condensation or icing) Less than 95% Relative Humidity non- condensing... - Page 27 turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an...
-
Page 28: Appendix B Spare Parts List
APPENDIX B Spare Parts List Description Part Number Replacement Line Cord, 115V 6700001 Replacement Line Cord, 230V 6700133 Replacement Drain Plug, hex head 3300492 Replacement Cord Wrap Bracket 1000721 Operation and Maintenance Manual 1800223 Calibrated Pressure Gauge Kit 9300250 1800223 E... -
Page 29: Appendix C Aerosol Output Calculation
APPENDIX C Aerosol Output Calculation Laskin Nozzle Jet Aerosol Output Calculation This model allows selection of either 2 or 6 Laskin nozzle jets using the “Jet Control” valve. The aerosol concentration produced is dependent upon the nozzle pressure, the chosen aerosol reagent and the volume of air used to dilute the raw aerosol produced. The equation below is intended for calculating the aerosol concentration when required and assumes a nozzle pressure of either 20 psi for DOP (DEHP) or 23 psi for PAO-4. -
Page 30: Appendix D Troubleshooting
APPENDIX D Troubleshooting Note If any remedy listed is not effective, contact ATI for repair service. Symptom Probable Cause Remedy Fill the reservoir with No Aerosol Liquid aerosol reagent reservoir is the appropriate liquid Output empty aerosol reagent Turn Main Power Main Power Switch in OFF Switch to the ON position... - Page 31 Symptom Probable Cause Remedy Make sure fill cap is hand tight or does not Fill cap is loose or is leaking leak. Replace if necessary. Internal air tube is blocked, kinked Return the unit for or leaking service Return the unit for Internal air filter is clogged service Verify the unit is...
-
Page 32: Appendix E Contacting Ati
ATI at (410) 363-9696 or email info@atitest.com For Customer Service If the 6D Generator is not operating properly, or if you are returning the instrument for service, contact ATI Customer Service (410) 363-9696. Customer Service will need this information when you call:... -
Page 33: Appendix F Warranty
APPENDIX F Warranty Part Number 1800223 / Revision A/ April 2012 Address Air Techniques International / 11403 Cronridge Drive / Owings Mills, MD 21117 / USA Phone No. (410) 363-9696 Fax No. (410) 363-9695 E-mail Address info@atitest.com Limitation of Air Techniques International, hereinafter referred to as... - Page 34 At ATI’s option, any defective equipment that fails within the warranty period shall be returned to ATI’s factory for inspection, properly packed with shipping charges prepaid. No equipment shall be returned to ATI without prior issuance of a return authorization by ATI.
-
Page 35: Appendix G Manual Revision History
APPENDIX G Manual Revision History The following is a revision history of the ATI 6D Laskin Nozzle Aerosol Generator Operation and Maintenance Manual, P/N 1800223 Revision Date Note April 2012 Initial Release Miscellaneous Nov 2012 Revisions Added aerosol April 2014... - Page 36 Notes 1800223 E...
- Page 37 1800223 E...
