Summary of Contents for Origin 301401

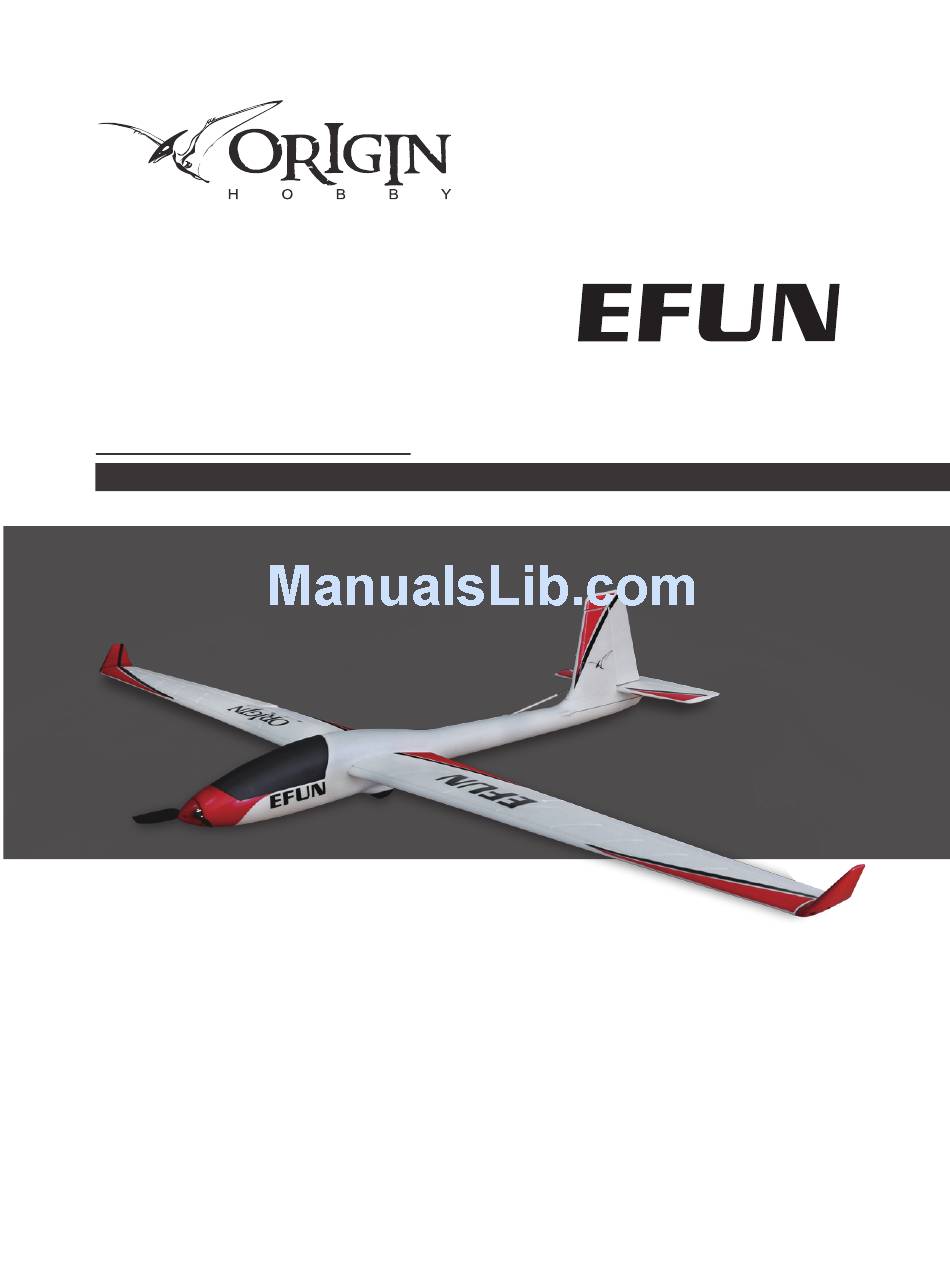

- Page 1 Item Number EFUN ARF 301401 EFUN kit 301402 SPECIFICATIONS Wingspan: 2120mm(W/O winglets) ESC: 30A Length: 1017mm Servo: 4x 9g Flying weight: 1150g Propeller: 10x6 Motor: 2820 1000KV Radio: 4CH or above(Not included) Battery: 3S 2200mAh Lipo(Not included)
- Page 2 ORIGIN HOBBY HIGH PERFORMANCE MODELS Thanks for choosing the EFUN. The airfoil and winglets design make sure that you can fly it super stably and comfortably. So it is suitable for beginner. EFUN is a scale glider (the actual airplane is SZD54) , which you can also fly with many aerobatics.
- Page 3 CONTENTS 1. Fuselage 5. Velcro 9. Screw M3 x 8 for winglets 2. Wing 6. Y-harness 10. Wing tube 3. Horizontal stabilizer 7. Screw M4 x 35 for wing 11. Winglets 4. Vertical stabilizer 8. Screw M4 x 25 for horizontal stabilizer 12.Propeller assembly...
-
Page 4: Assemble The Model
ASSEMBLE THE MODEL Step 1. Mount the horizontal stabilizer Place the horizontal stabilizer in place and use the screw M4 x 25 to secure it from the top. Make sure it is secured tightly. Step 2. Mount the vertical stabilizer Align the plastic stabs on the vertical stabilizer to the slots on the tail of fuselage, and then Insert the vertical fin to tail from the top. - Page 5 Clevis 3rd Hole Control Horn Elevator/Rudder Step 4. Mount the wing Insert the wing tube to the fuselage, and insert one wing halve, guide the servo wire thru the side hole on fuselage to the cabin. Insert the other wing halve with the same way. Make sure the wing halves are mounted in place. Tighten the fixing screws on the bottom of wing to secure the wing halves.
- Page 6 Type 1(downwards): Type 2(upwards): Step 6. Connect the receiver Connect the 2 servo wires of wing to the included Y-harness. Then connect the wires to receiver channels . Please see "ADJUSTMENT BEFORE FLIGHT". Before plugging in the lipo battery to the ESC, turn the transmitter on first with the throttle stick in the lowest position, THEN plug in battery, be careful not to move the throttle stick upward until you are ready to fly.
- Page 7 Check for proper operation of the throttle, if it is reversed, change the direction of the throttle channel in the transmitter. Proper operation is at low throttle stick position the motor is stopped, high throttle stick position the motor is operating at full speed. Adjust all control surfaces (aileron, rudder, elevator) to be centered and move in the correct direction when moving the transmitter sticks.
-
Page 8: Section 1:Connect The Receiver
Mount the spinner by firmly tightening the two screws with phillips screwdriver. Assembled product as shown below ADJUSTMENT BEFORE FLIGHT Section 1:Connect the receiver 2 aileron servos are connected to CH1 with a Y-harness , Elevator servo to CH2,ESC to CH3, Rudder servo to CH4. -
Page 9: Section 2:Manual Of Brushless Motor Speed Controller
Rudder Servo Elevator Servo Aileron Servo Section 2:Manual of Brushless Motor Speed Controller Specifications: Burst BEC Output Capability Battery Cell Size Cont. Current Model Weight Current Mode Output (>10s) Lipo 2S Lipo 3S Lipo 4S Lipo 6S Lipo NiMH L*W*H Skywalker-6A 5-6 cells 5.5g... -
Page 10: Connect Battery
1.44*6=8.64V, when “Medium” cut-off threshold is set, the cut-off voltage will be: 8.64*50%=4.32V。 5.Startup Mode：Normal /Soft /Super-Soft (300ms / 1.5s / 3s) Normal mode is suitable for fixed-wing aircraft. Soft or Super-soft modes are suitable for helicopters. The initial acceleration of the Soft and Super-Soft modes are slower, it takes 1.5 second for Soft startup or 3 seconds for Super-Soft startup from initial throttle advance to full throttle. -
Page 11: Protection Function
Normal startup procedure: Move throttle stick to bottom position Connect battery pack to ESC, special tone and then switch on transmitter. like “ ” means power supply is OK Several “beep-” tones should When self-test is finished, a Move throttle stick be emitted to present the long “beep-----”... - Page 12 Program the ESC with your transmitter (4 Steps): Note: Please make sure the throttle curve is set to 0 when the throttle stick is at bottom 2. Select programmable items: position and 100% for the top position. After entering program mode, you will hear 8 tones 1.
-
Page 13: Section 3:Recommended Cg
Section 3:Recommended CG For the first flight,the recommended Center of Gravity location is 60mm behind the leading edge of the wing against the fuselage.Use the battery pack , moving it 60mm forward or backward,to achieve the correct balance . Section 4:Control throws The following control throws are for your reference,you can adjust them based on your habit. -
Page 14: Safety Instructions
Safety Instructions ● This model is not a toy. Allowed for children over 14 years. Children under 14 years old must use it accompanied by an adult. ● Assemble the model accordingly to this instruction manual. Do not alter or modify the model. Only use parts that are officially recommended by OriginHobby . - Page 15 § 1 Warranty (1)We guarantee that there will be no production or material errors on OriginHobby items during the guarantee period (§ 4) (2) The guarantee is valid for customers who bought OriginHobby items over an authorized dealer. This guarantee cannot be transferred to another person. §...
- Page 16 Made in China www.originhobby.com info@originhobby.com 6th Floor, 3rd Building, TianAn Industrial Zone, Xiamen 361006, China...
