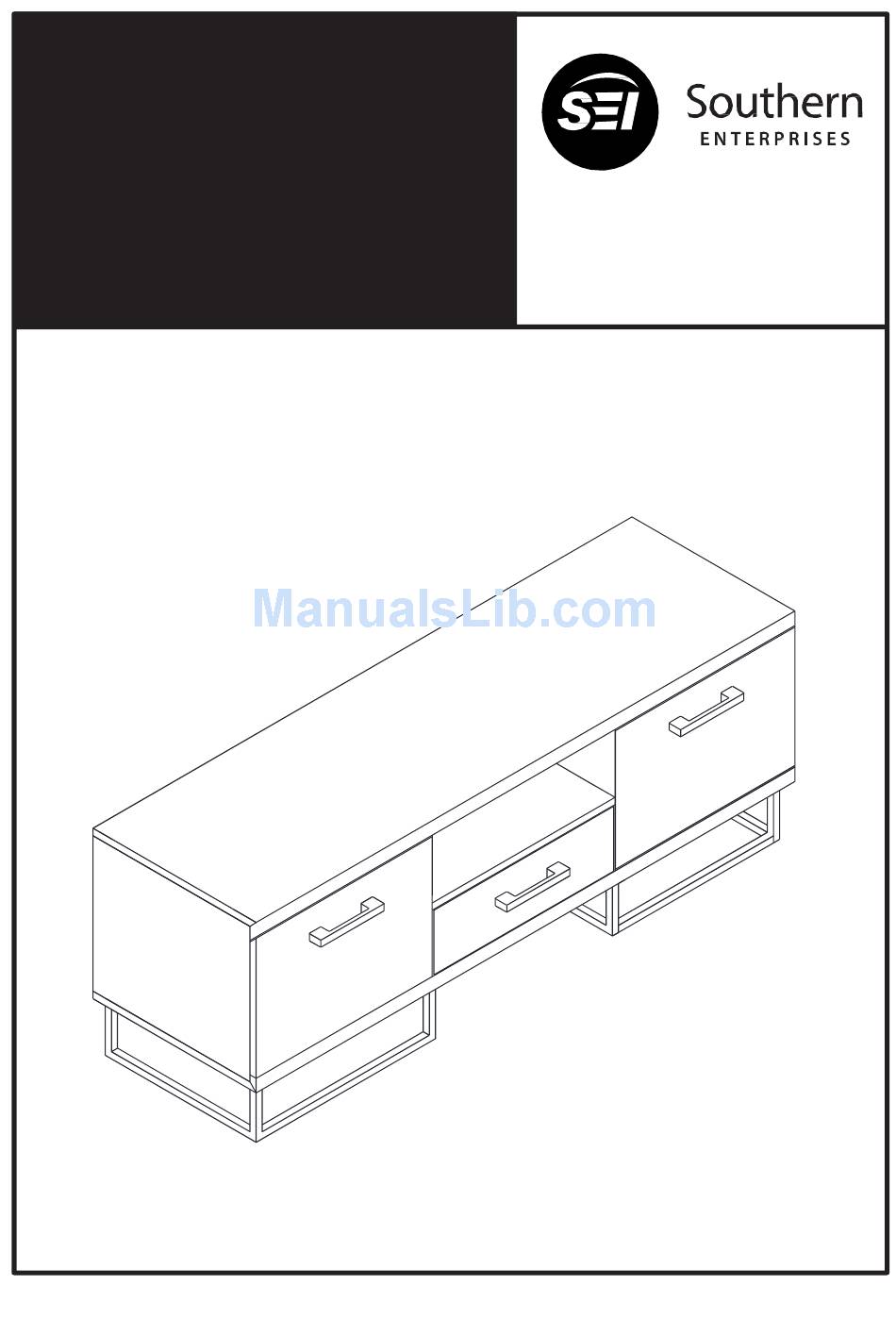

- Page 1 MS904500TX Liam Media Console For assistance with assembly contact: Assembly Instructions Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seidal.com...
- Page 2 MS904500TX Liam Media Console Assembly Instructions Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below.
- Page 3 MS904500TX Liam Media Console For assistance with assembly contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seidal.com PARTS LIST: DESCRIPTION DESCRIPTION TOP PANEL CENTER BACK PANEL BOTTOM PANEL DRAWER FRONT PANEL LEFT PANEL DRAWER LEFT PANEL RIGHT PANEL DRAWER RIGHT PANEL...
- Page 4 MS904500TX Liam Media Console Assembly Instructions Step 1: Attach the Steel Legs (6) to Bottom Panel (B) using Bolts(2). Tighten Bolts (2) wit h Allen Wrench (1) as shown in Figure 1. Figure 1 Customer Service 1-800-633-5096 service@seidal.com Southern Enterprises, Inc.
- Page 5 MS904500TX Liam Media Console Assembly Instructions Step 1: Attach Right Center Divider (E) and Left Center Divider (Q) to Fixed Shelf (P) using Wood Dowels (5) as shown in Figure 2. Figure 2...
- Page 6 MS904500TX Liam Media Console Assembly Instructions Step 3 Step 1: Attach Panels (E), (Q) and (P) from the assembled unit in Figure 2 to Bottom Panel (B) using Wood Dowels (5) as shown in Figure 3. Step 2: Switch the locks to the on...
- Page 7 MS904500TX Step 4 Liam Media Console Assembly Instructions Step 1: Attach Left Panel (C) and R i g h t P a n e l ( D ) t o t h e assemble unit from Figure 3 using Wood Dowels (5) as shown in Figure 4.
- Page 8 MS904500TX Step 5 Liam Media Console Assembly Instructions Step 1: Assemble the top panel (A) to the assembled unit using wood dowels (5) as shown in figure 5. Step 2: Switch the locks to the on position as shown in Figure...
- Page 9 MS904500TX Liam Media Console Assembly Instructions Step 1: I n s e r t C a m L o c k s ( 3 ) i n t o Drawer Back Panel (O). Screw Cam Bolts (11) into Left and Right Drawer Panel (M/L).
- Page 10 MS904500TX Liam Media Console Assembly Instructions Step 1: Attach Back Panels (H)(J) and (I) to the assembled unit using Screws (7) as shown in figure 7. Figure 7...
- Page 11 MS904500TX Liam Media Console Assembly Instructions Step 1: Attach Hinges (10) to the Left Door Panel (F) and Right Door Panel (G) using Screws (9). Step 2: Attach Door Handles (8) to the Door Panels with screws (4) . Step 3:...
- Page 12 MS904500TX Liam Media Console Assembly Instructions Step 1: Insert the drawer into the unit by aligning the glides on the drawer to the glides on the unit and push in. Figure 9...
- Page 13 This unit contains a permanent warning sticker located on back panel. Do not allow children under 16 years to move the cart. Model: MS904500TX Liam Media Console Southern Enterprises, Inc 600 Freeport Parkway,...
- Page 14 Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
