Summary of Contents for OpenFire DELUXEset

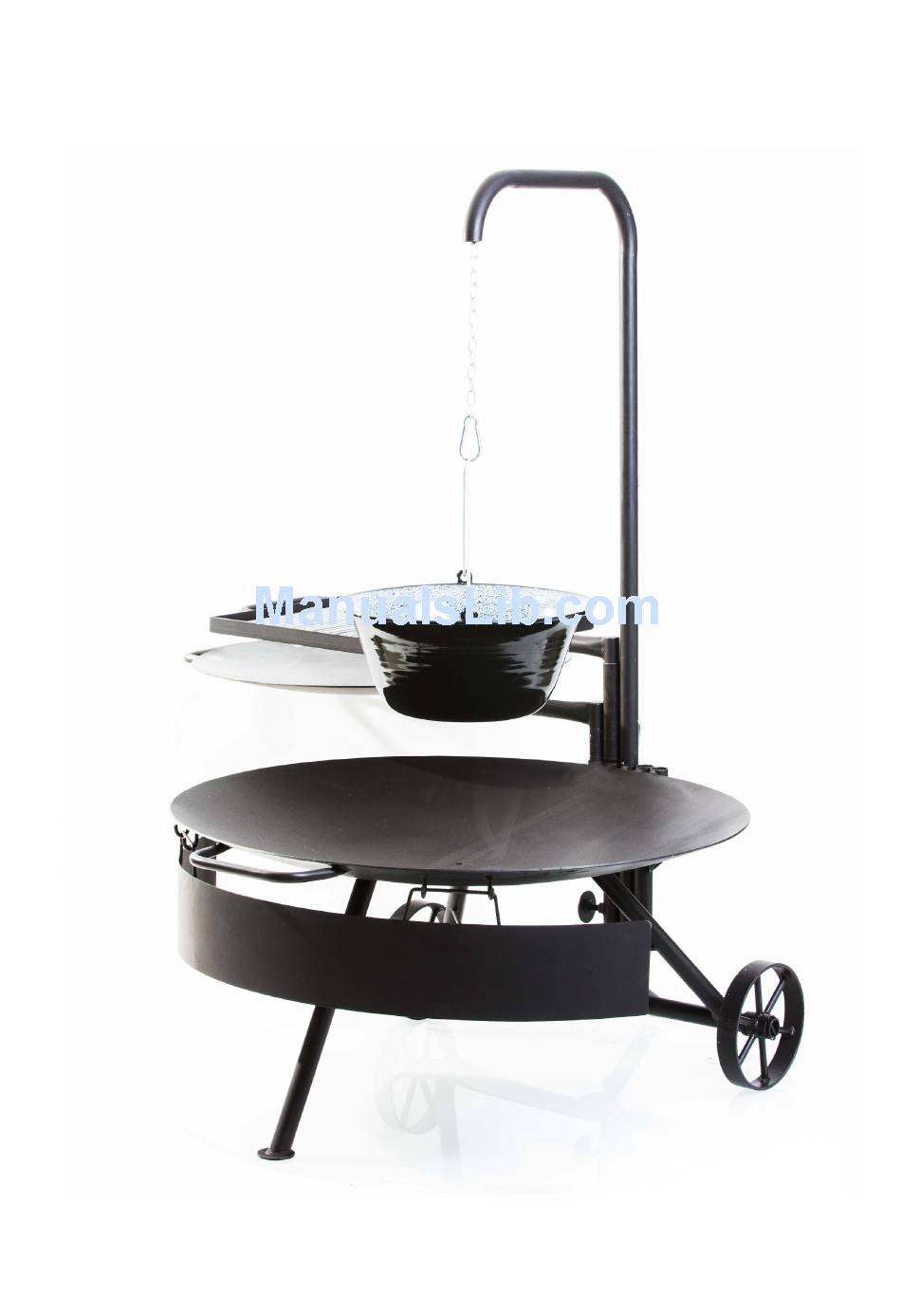

- Page 1 OPENFIRE BASIC and DELUXE set USER MANUAL www.openfirebbq.com...
- Page 2 PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Main (Mother) Pit Long Extension Short Extension Rear Wheel Support Safety Leg Front Leg Wheels Kettle Holder Tool Rack Heat Deflector * included only in deluxe set www.openfirebbq.com...
- Page 3 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Coal Shovel Frying Pan Grill Grate Dutch Oven Wind Guard Kettle - Ice bucket www.openfirebbq.com * included only in deluxe set...
- Page 4 HARDWARE CONTENTS Short Screw Wing Nut 20mm qty. : 6 Long Screw ( +2 spare ) qty. : 2 50mm Carabiner ( +1 spare ) Split Pin Chain qty. : 4 qty. : 2 ( +1 spare ) qty. : 2 ( +1 spare ) SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install...
- Page 5 ASSEMBLY INSTRUCTIONS 1. Attach rear wheel support (B) to main fire pit (A) with long screw (AA) and wing nut (CC). Hardware Used: 2. Attach front heat deflector (F) in small holes in rear wheel support (B) and front leg (C). Then attach front leg ( C ) to main fire pit ( A ) with ( A ) with Long Screw ( AA ) and Wing Nut ( CC ).
- Page 6 ASSEMBLY INSTRUCTIONS 4. Congratulations your OPENFIRE is almost ready. Now you can turn it around to its final position. 5. Place tool rack (E) on rear wheel support (B) in-between wheels. Then attach it to main fire pit ( A ) with small screws ( BB ) and wing nut ( CC ) and to rear wheel support ( B ) with big screw ( AA ) and wing nut ( CC ).
- Page 7 ASSEMBLY INSTRUCTIONS 7. Insert chain inside kettle holder (J) turned upside down. Attach carabiner to both ends of chain to prevent disconnections. Hardware Used: www.openfirebbq.com...
- Page 8 CARE AND MAINTENANCE Inspecting Inspect this fire pit on a regular basis to ensure product safety and longer product life. DO NOT attempt to inspect this outdoor fire pit until the fire is COMPLETELY out and cooled down. - Check handles to make sure they are secure. - Check components for any signs of damage or rust.
