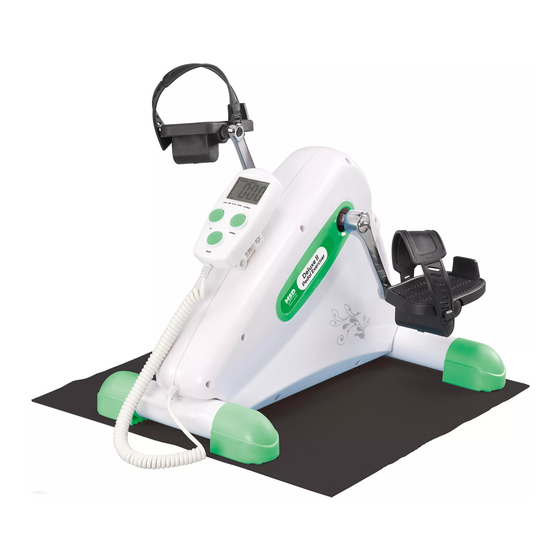

MSD Oxycycle Deluxe 2 User Manual
  1. Manuals
  2. Brands
  3. MSD Manuals
  4. Fitness Equipment
  5. Oxycycle Deluxe 2
  6. User manual

MSD Oxycycle Deluxe 2 User Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Table of Contents

Safety Precautions

Read all instructions carefully before operating this product. Retain this owner's manual
and keep all original transaction receipts for future reference.
•
Consult your physician before beginning this or any other exercise program.
•
If you experience any irregular physical conditions such as dizziness, severe muscle
or joint pain or pain in the chest, stop exercising and consult with your physician
immediately.
•
Keep children and pets away from the machine while in use.
•
Do not operate this or any exercise equipment if it is damaged.
•
Set up Pedal Exerciser as directed in Assembly Instructions and place unit on a level,
non-slip surface.
•
Keep hands and feet away from any moving parts. Do not insert any objects into
any openings.
•
Perform 3 to 5 minutes of warm-up and stretching before beginning your exercise.
•
Never exercise to exhaustion.
•
Do not stand on the Pedal Exerciser, only exercise in seated position.
•
Keep a minimum safety clearance during operation. The Pedal Exerciser is designed
as a home use exercise device. User must have full control of their muscles to operate
this unit. It may not be suitable for people who are quadriplegic or paraplegic. Please
consult your doctor or physician.
•
Exercise equipment is to be regularly inspected for maintenance for loose or broken
parts.
•
This product is for consumer use only.
•
Wear comfortable and suitable clothing when using Pedal Exerciser.
•
Each exercise should be performed in a controlled manner. Always start exercising
slowly.
•
Have the unit serviced by a qualified service technician. Do not attempt to service
the unit yourself.
Warning: The Pedal Exerciser is designed for seated position use on a
flat and stable surface.
4
Safety Precautions........................................2
Electrical Safety.............................................3
Overview Drawing......................................4
Parts List ..........................................................4
Assembly Instructions.................................5
Operating the Controller...........................6
Workout ............................................7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oxycycle Deluxe 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for MSD Oxycycle Deluxe 2

  • Page 1 Table of Contents Safety Precautions........2 Electrical Safety..........3 Overview Drawing........4 Parts List ............4 Assembly Instructions.........5 Operating the Controller......6 Workout ..........7 Safety Precautions Read all instructions carefully before operating this product. Retain this owner’s manual and keep all original transaction receipts for future reference. •...

  • Page 2: Electrical Safety

    Electrical Safety When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this unit. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons: • An appliance should never be left unattended when plugged in. Unplug from outlet when not in use and before putting on or taking off parts.
  • Page 3 Overview Drawing & Parts List (24) Bolt M8 x M12 (31) Spring Washer Wrench Allen Wrench Part # Description Q’ty Part # Description Q’ty Controller Bolt M5x40mm Rear Stabilizer 380 Bolt M8x20mm Front Stabilizer 220 Nut M5 Main Frame Bolt M5x10mm Magnet Bracket Bolt M6x12mm Right Cover...

  • Page 4: Assembly Instructions

    Assembly Instructions Hold the unit in an upright position. The Controller side facing up and the AC Power Cable side facing down. Insert the Front Stabilizer (3) into the Main Frame (4). Attach the Front Stabilizer (3) to the Main Frame (4) with three Bolts (24) and three Spring Washers (31).

  • Page 5: Operating The Controller

    Operating the Controller Button Function: MODE: Press MODE button to select function display. UP: To increase the rotational speed of the pedal. The RPM levels vary from level 0 to 5. DOWN: To decrease the rotational speed of the pedal. The RPM levels vary from level 5 to 0.

  • Page 6: Workout

    Workout Workout Pricipal 1. Personal goals can include shaping, strengthening, improving present fitness level, rehabilitation of previous injuries, cardiovascular exercising, etc... By using the Pedal Exerciser correctly and on a regular basis, you can achieve your goals. 2. Available time is a major element in determining what we do in our daily lives. If you can only exercise for 15 minutes, develop a 15 minute program with the Pedal Exerciser.

  • Page 7: Non-Slip Mat

    Workout Range of motion and flexibility This device can be used for both upper and lower body. As a lower body device, it works with passive motion to increase tone of the quadriceps muscles (muscles in the thigh) and circulate blood flow to the entire lower leg and foot. For upper body use, it is used as a resistance device, allowing the user to exercise the muscles of the arm (biceps, triceps, deltoids and the smaller muscles of the forearms).
  • Page 8 NOTE: Use the hand grip pedals (33/34) for arm exercises. Produced for and distributed by: MSD Europe bvba Nijverheidsstraat 18 1840 Londerzeel Belgium - Europe www.msd-europe.com © 2009, MSD Europe bvba. All rights reserved.
