- Page 1 F10-GDW Triple Systems...
-
Page 2: Table Of Contents
Table of contents How it works ................... 3 Package contents................4 Install your hardware ..............5 Troubleshooting ................14 Specifications ................15 Product Warranty................. 16 Safety Warnings ................16... -
Page 3: How It Works

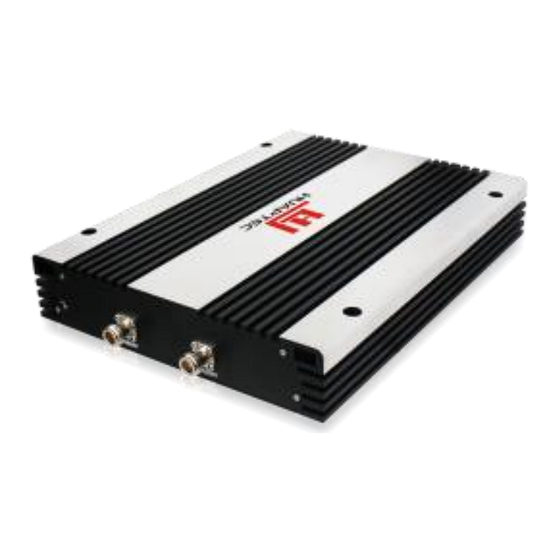

How it works Huaptec F10-GDW is designed to help mobile users to amplify weak 2G and 3G signals. Huaptec amplifiers are bi-directional. The donor antenna receives the signals from a cell tower, amplifies them and transmits to the signal booster. Then the indoor antenna receives the signals and retransmits them to your mobile device. -
Page 4: Package Contents
Indoor panel Outdoor panel Triple Systems 12V/7A antenna antenna Signal booster RF cable Waterproof tape Optional antenna kits Whip antenna Omni ceiling YAGI antenna antenna We will provide all accessories needed for the signal booster. For more information please visit www.huaptec.eu... -
Page 5: Install Your Hardware
Install your hardware Before you install 1 Make sure you have sufficient cable length between donor/server antenna location and booster connector. 2 Make sure the place where you install the booster is well ventilated, near to electrical outlet, and away from excessive heat, moisture and direct sunlight. - Page 6 Find the area with the strongest signal The booster’s main function is to improve weak RF signals in a certain area. The signal strength from the outdoor antenna directly affects the efficiency of the indoor coverage. Install the Outdoor Antenna Select a proper place to install the donor antenna.
- Page 7 supplied screws. Step3: Screw antenna back onto horizontal plate to the wall with supplied screws. Notes: Wrap waterproof tape around the connectors between a donor antenna and feeder lines to avoid water or other kinds of damage Install the Indoor Antenna In most cases, Indoor panel antenna is the best choice.
- Page 8 Step3: Put the panel antenna on the bracket. When you choose indoor Omni ceiling antenna or whip antenna, the best place to install it is in the center of your house as the graph shows. It is better to use a directional panel antenna or Yagi when the area is long and narrow (corridors, long row of houses in two sides, tunnels, elevators or rural open space)
- Page 9 Install the signal booster Step1: Select a location close to a power outlet on a wall. Step2: Mount the booster with screws included into the kit as shown in the picture. Step3: Connect the outdoor antenna cables to the booster connector marked as “outdoor”.
- Page 10 Booster installation Connection from cable to Booster Booster Commissioning After the booster is on, it will automatically adjust best performance with the intelligent automatic gain control function. No manual operation is needed. if the alarm LED flashes green or orange, that means the booster is working properly.
- Page 11 If the alarm is still flashing red, the MGC function can provide further assistance as shown below. Booster’s port description The following image shows the key components of booster. There are 3 kinds of components. The first one is connectors to the outdoor and indoor antennas.
-
Page 12: Dip Switches
DIP switches he DIP switches are used to manually adjust their band gain attenuations. Switches 1-5 control G/D/W band’s DL attenu ation, 6-10 control G/D/W band’s UL attenuatio The booster will work on its MAX gain mode, but in some cases, we don’t need such a big value. - Page 13 Solution: Please adjust antennas or slowly add the attenuation by MGC till you find the “edge point” (I.E. the Alarm LED shall stay at green color slightly turning to orange). Stop immediately when the LED color changes, it’s enough to provide best coverage.
-
Page 14: Troubleshooting
Troubleshooting Problem Resolution The signal booster is no Check the booster switch is turned on. power. Check the AC outlet is working. Try to fasten the connections between the different The booster’s power is on parts of the system. but the phone is not Change the direction of donor antenna or its installation connected into... -
Page 15: Specifications
Specifications Uplink Downlink RF Parameter GSM900&UMTS 890~915MHz 935~960 MHz DCS<E 1710~1785MHz 1805~1880MHz Frequency Range UMTS2100 1920~1980MHz 2110~2170MHz F10-GDW 60dB 65dB Max .Gain F15- GDW 65dB 65dB F20- GDW 65dB 70dB F10- GDW 10dBm 10dBm Max .Output Power F15- GDW 10dBm... -
Page 16: Product Warranty
Returned Material Authorization (RMA) number supplied by Huaptec. Huaptec would provide 2 options, repair or replace of the product. This warranty does not apply to any Signal Boosters or kits determined by Huaptec as subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties. -
Page 17: Safety Warnings
Safety Warnings Users must follow the principles below: Booster should follow system requirements of communication equipment, assure good grounding and lightning protection. The power supply voltage of booster should meet the standards of security requirement; any operation shall be carried out only after cutting off power in advance.
