Summary of Contents for Zest Lily Relax Seat

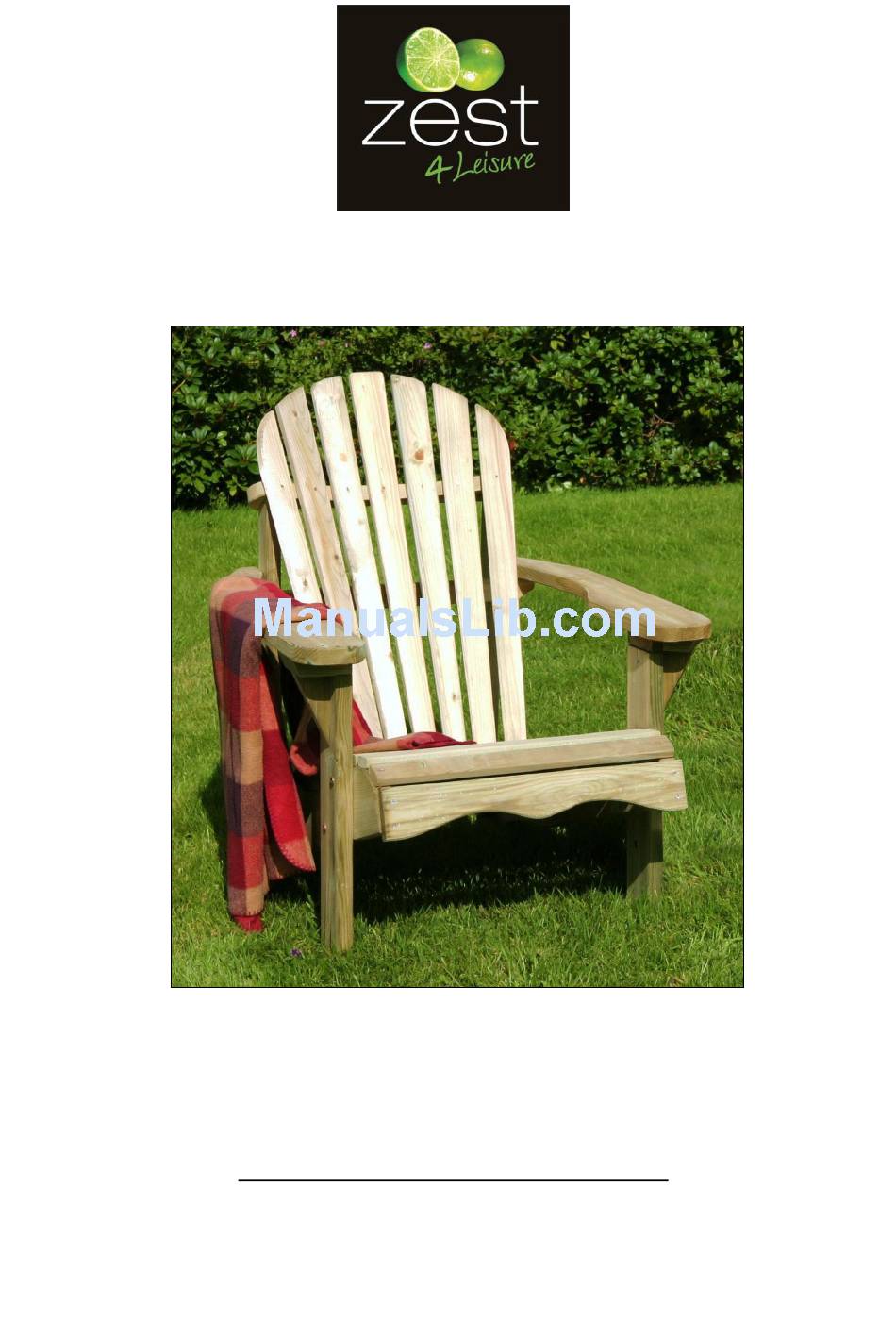

- Page 1 Assembly Instructions (W x D x H) 0.72m x 0.92m x 0.92m Product Name: Lily Relax Seat PLEASE KEEP THIS INSTRUCTION Zest4Leisure 01352 752555 option 1 – sales@zest4leisure.co.uk...
- Page 2 Lily Relax Seat Assembly Instructions Requires 2 person assembly. All screw holes to be pre-drilled. Tools required: Corded / Cordless Drill, Pozi-drive Bit / Screwdriver, 3mm Drill Bit, 4mm Hex Key. Lily Relax Seat Pack List Item Description Quantity Back Support Assembly...
- Page 3 2no Hex Bolts and ‘T’ Nuts. See Fig. 3b. Do not fully tighten. Attach Armrest/Leg Assembly D1 to Back Support Assembly A using 1no Screw. See Fig.3c. Repeat procedure for Armrest/Leg Assembly D2. Fully tighten all bolts at this stage. Lily Relax Seat is now complete.
- Page 4 www.zest4leisure.co.uk...
- Page 5 www.zest4leisure.co.uk...
