MT9P006I12STCUH-GEVB
MT9P006 Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to clock, I/Os and other
miscellaneous signals.
Features
•
Clock Input
Default − 27 MHz crystal oscillator
♦
Optional Demo 2X controlled Mclk
♦
•
Two Wire Serial Interface
Selectable base address
♦
•
Parallel Interface
•
Serial LVDS Interface
•
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0

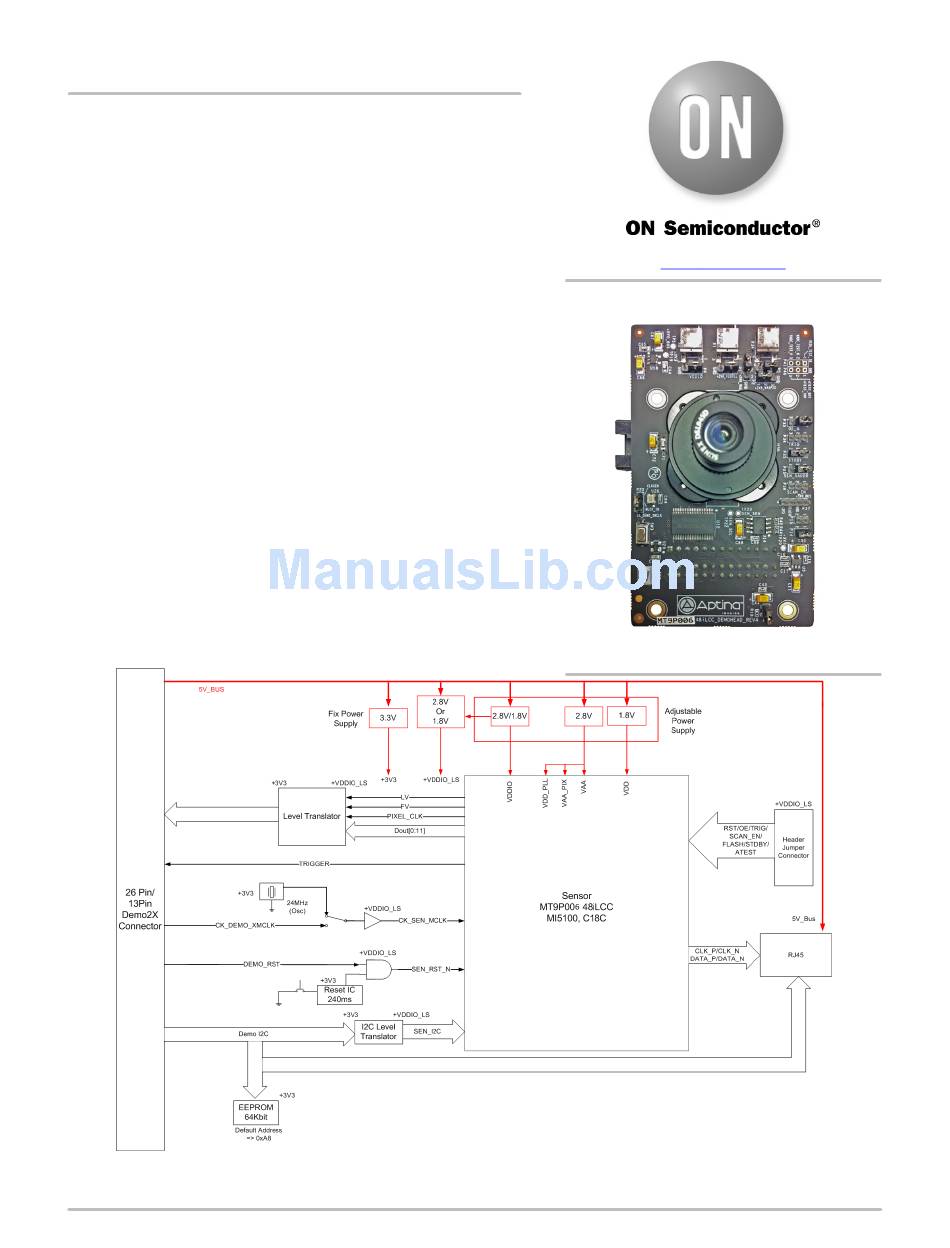

Figure 2. Block Diagram of MT9P006I12STCUH−GEVB
EVAL BOARD USER'S MANUAL
Figure 1. MT9P006 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2445/D
Advertisement
Table of Contents
Related Manuals for Semiconductor Components Industries MT9P006
Summary of Contents for Semiconductor Components Industries MT9P006
- Page 1 Selectable base address ♦ • Parallel Interface • Serial LVDS Interface • ROHS Compliant Figure 1. MT9P006 Evaluation Board Block Diagram Figure 2. Block Diagram of MT9P006I12STCUH−GEVB Publication Order Number: © Semiconductor Components Industries, LLC, 2016 July, 2016 − Rev. 0 EVBUM2445/D...
- Page 2 MT9P006I12STCUH−GEVB Top View VDDPLL P3 VAA P1 VDD P5 VDDIO P4 VAAPIX P2 OE_N P33 TRIGGER P34 STANDBY P35 SEN_SADDR P25 SCAN_EN P39 CLKGEN P20 FLASH P37 EEPROM P14, P15 RESET Switch SW3 ON_LED P11 Figure 3. Top View of Evaluation Board − Default Jumpers Bottom View Serial LVDS Connector J3 Baseboard Connector P36...
- Page 3 MT9P006I12STCUH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
- Page 4 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
