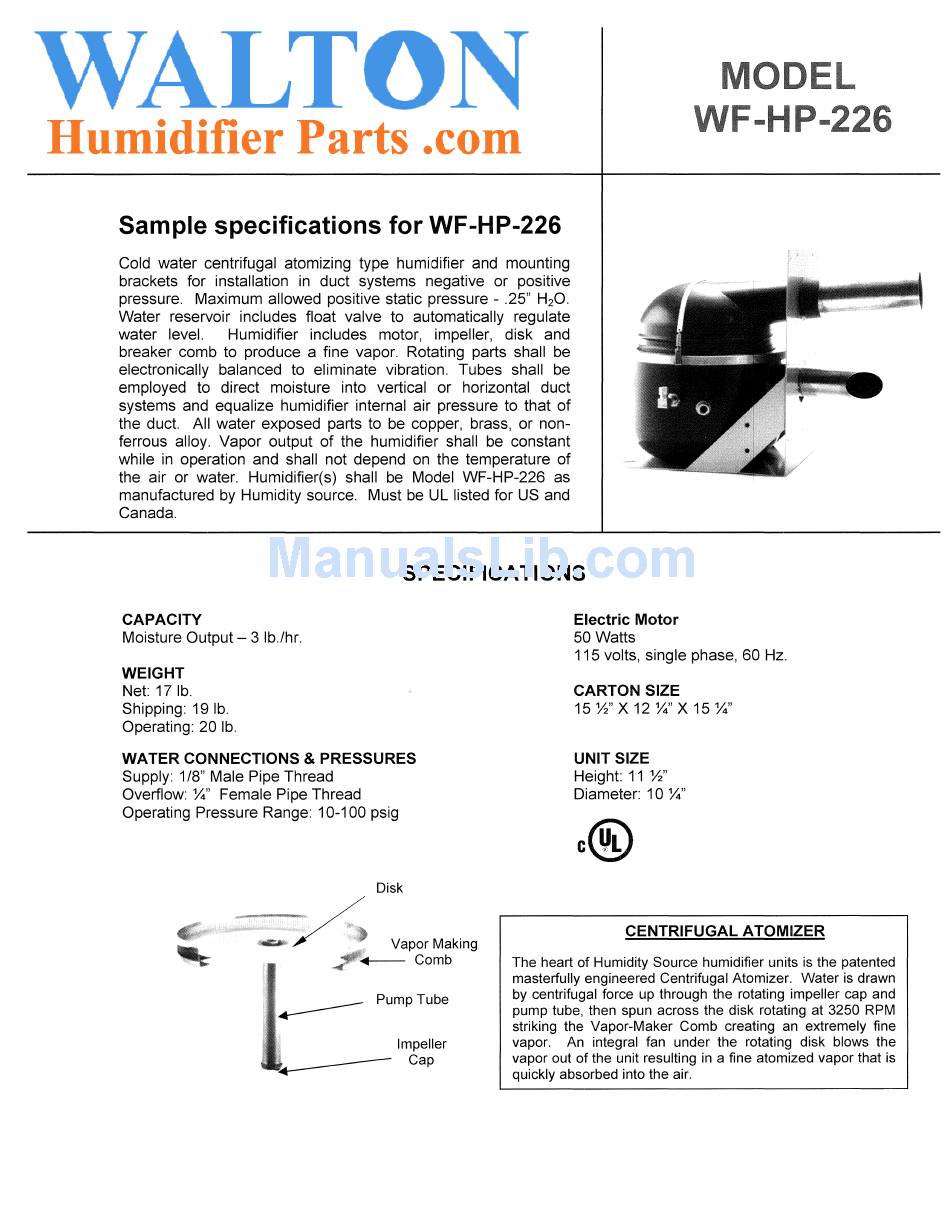

Sample specifications for WF-HP-226
Cold water centrifugal atomizing type humidifier and mounting
brackets for installation in duct systems negative or positive
pressure. Maximum allowed positive static pressure - .25" H
2
0.
Water reservoir includes float valve to automatically regulate
water level.
Humidifier includes motor, impeller, disk and
breaker comb to produce a fine vapor. Rotating parts shall be
electronically balanced to eliminate vibration. Tubes shall be
employed to direct moisture into vertical or horizontal duct
systems and equalize humidifier internal air pressure to that of
the duct. All water exposed parts to be copper, brass, or non-
ferrous alloy. Vapor output of the humidifier shall be constant
while in operation and shall not depend on the temperature of
the air or water. Humidifier(s) shall be Model WF-HP-226 as
manufactured by Humidity source. Must be UL listed for US and
Canada.
-
SPECIFICATIONS
CAPACITY
Moisture Output - 3 Ib'/hr.
WEIGHT
Net: 17 lb.
Shipping: 19 lb.
Operating: 20 lb.
WATER CONNECTIONS
&
PRESSURES
Supply: 1/8" Male Pipe Thread
Overflow: %" Female Pipe Thread
Operating Pressure Range: 1 0-1 00 psig
Disk
Vapor Making
7 + - - - Comb
Pump Tube
Impeller
Cap
Electric Motor
50 Watts
115 volts, single phase, 60 Hz.
CARTON SIZE
15 Yz" X 12 %" X 15 %"
UNIT SIZE
Height: 11 Yz"
Diameter: 1 0 %"
CENTruFUGALATOM~ER
The heart of Humidity Source humidifier units is the patented
masterfully engineered Centrifugal Atomizer. Water is drawn
by centrifugal force up through the rotating impeller cap and
pump tube, then spun across the disk rotating at 3250 RPM
striking the Vapor-Maker Comb creating an extremely fine
vapor.
An integral fan under the rotating disk blows the
vapor out of the unit resulting in a fine atomized vapor that is
quickly absorbed into the air.
