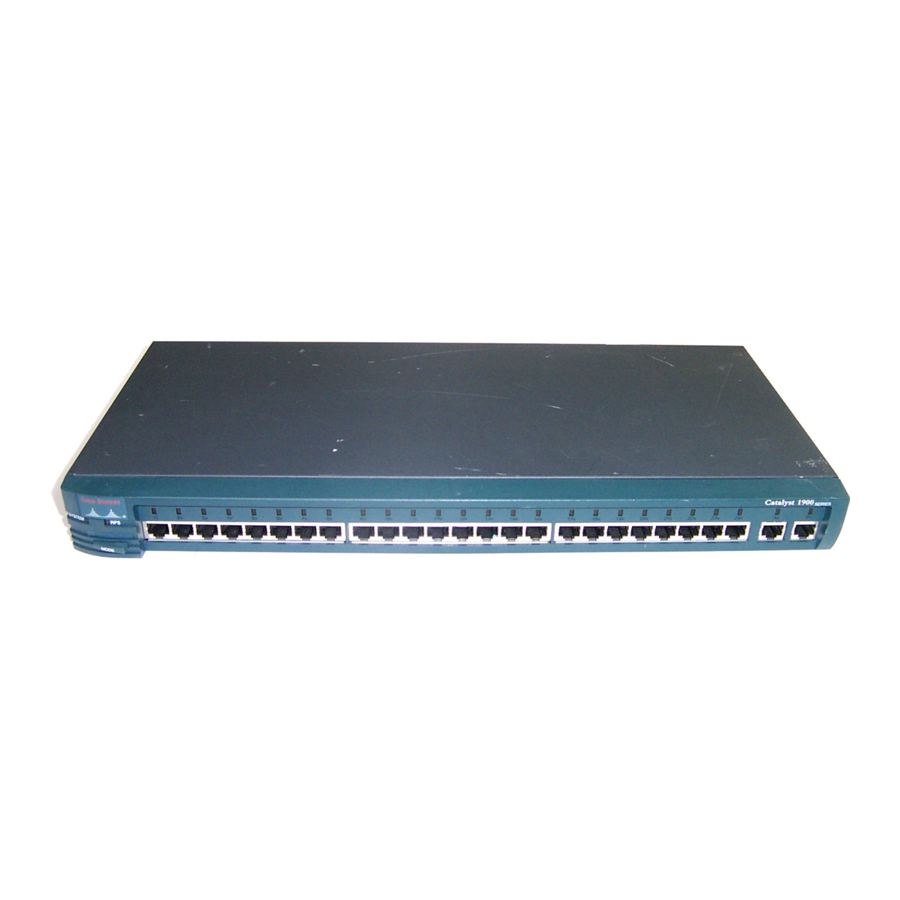

Catalyst 1900 Series Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
C
1900 S
ATA LY S T
10BaseT Hub
10BaseT Router
C
ONNECT AND
A
IP I
SSIGN
NFORMATION AND A
D
C
ISPLAY THE

Quick Start Guide

E R I E S
100BaseT
Switch
Crossover
cabling
Straight-through
cabling
1
T
O
W
AKE
UT
HAT
2
P
OWER
3
5 4
1900 S
ATALYST
WITCH MANAGER
E
T H E R N E T
Catalyst 1900
menu-based or
command-line
interface
Serial cable
SE
RIE
S
Catalyst 1900
command-line
interface,
web-based,
menu-based,
or SNMP-based
10BaseT
management
Workstations
station
Y
OU NEED
U
S
P THE
WITCH
P
ASSWORD TO THE
H
S
W I T C H E S
100BaseT
Server
S
WITCH
P
OME
AGE

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1900 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Catalyst 1900 Series

  • Page 1: Quick Start Guide

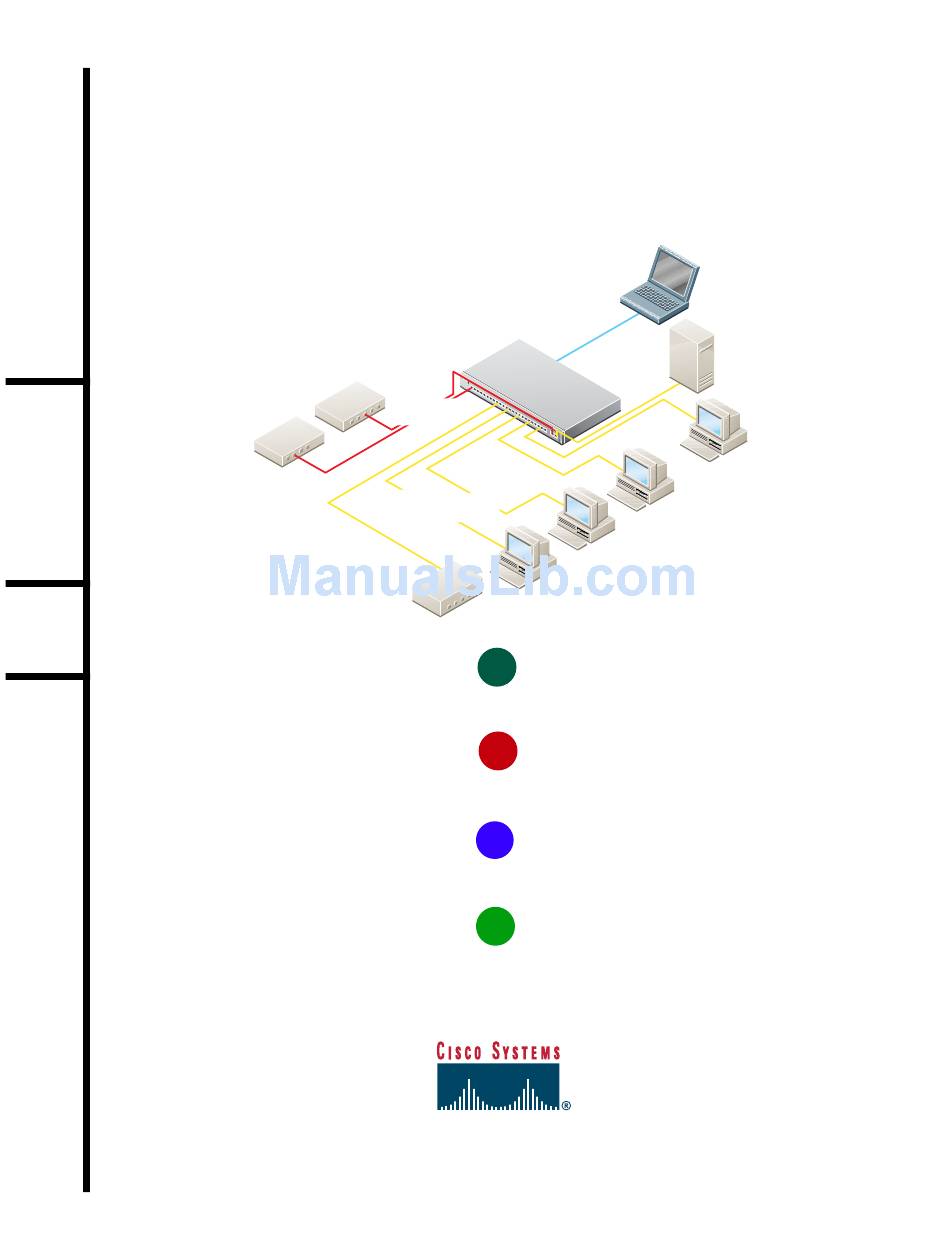

    Quick Start Guide 1900 S ATA LY S T E R I E S T H E R N E T W I T C H E S Catalyst 1900 menu-based or command-line interface Serial cable 100BaseT 100BaseT Server Switch...

  • Page 3: Take Out What You Need

    Take Out What You Need Catalyst 1900 series Ethernet switch Catalyst 1900 Series Installation and Configuration Guide and Release Notes RJ-45-to-RJ-45 rollover console cable AC power cable RJ-45-to-DB-9 serial adapter Rack-mount kit Rubber feet If any item is missing or damaged, contact your Cisco representative or reseller for support.
  • Page 4 Connect and Power Up the Switch SERIES 10BaseT port (RJ-45) Category 5 straight-through cable 10BaseT port (RJ-45) Note: Use a straight-through cable to Connect to Other Switches connect two ports when one of the port and Hubs numbers is designated with an X. Use a Connect Category 3, 4, or 5 crossover crossover cable to connect two ports when cables between 10BaseT ports on the...

  • Page 5: Connect The Console Cable

    Connect the supplied rollover cable to 600W AC redundant power system (RPS), the console port on the switch. refer to the Catalyst 1900 Series Installation Connect the other end of the console and Configuration Guide and the latest RPS cable to a terminal, PC, or laptop documentation for more information.
  • Page 6 Enter Selection: I password and IP address of the command The IP Configuration Menu appears. switch. Refer to the Catalyst 1900 Series Installation and Configuration Guide for Enter the [I] IP address option from the more information.
  • Page 7 Catalyst 1900 Switch mask and [G] Default gateway options Manager from anywhere on your intranet. from the IP Configuration Menu. If the switch is running the Cisco Catalyst 1900/2820 Enterprise Edition Software, you Assign a Password can also use the command-line interface From the IP Configuration Menu, enter...
  • Page 8 Display the Catalyst 1900 Switch Manager Home Page After you assign an IP address and password to the switch, you can display the Catalyst 1900 Switch Manager. The Switch Manager supports the following platforms and network browsers: Minimum Operating System...
  • Page 9 In the Internet Options window, select In the Security Settings window, click the General tab. In the Temporary Internet Files section, In the Internet Options window, click Settings. select the Security tab, and verify that the Zone drop-down list is set to In the Settings window, click the Every Trusted Sites Zone.
  • Page 10 Display the Switch Manager Home Page When the browser is configured, display the Catalyst 1900 Switch Manager home page as follows: Enter the IP address of the switch in the Location field if you are using Netscape Communicator (the Address field if you are using Microsoft Internet Explorer), and press Return.
  • Page 12 Stack are trademarks; Changing the Way We Work, Live, Play, and Learn, Empowering the Internet Generation, The Internet Economy, and The New Internet Economy are service marks; and ASIST, BPX, Catalyst, Cisco, Cisco IOS, the Cisco IOS logo, Cisco Systems, the Cisco Systems logo, the Cisco Systems Cisco Press logo, Enterprise/Solver, EtherChannel, EtherSwitch, FastHub, FastLink, FastPAD, FastSwitch, GeoTel, IOS, IP/TV, IPX, LightStream, LightSwitch, MICA, NetRanger, Post-Routing, Pre-Routing, Registrar, StrataView Plus, Stratm, TeleRouter, and VCO are registered trademarks of Cisco Systems, Inc.
