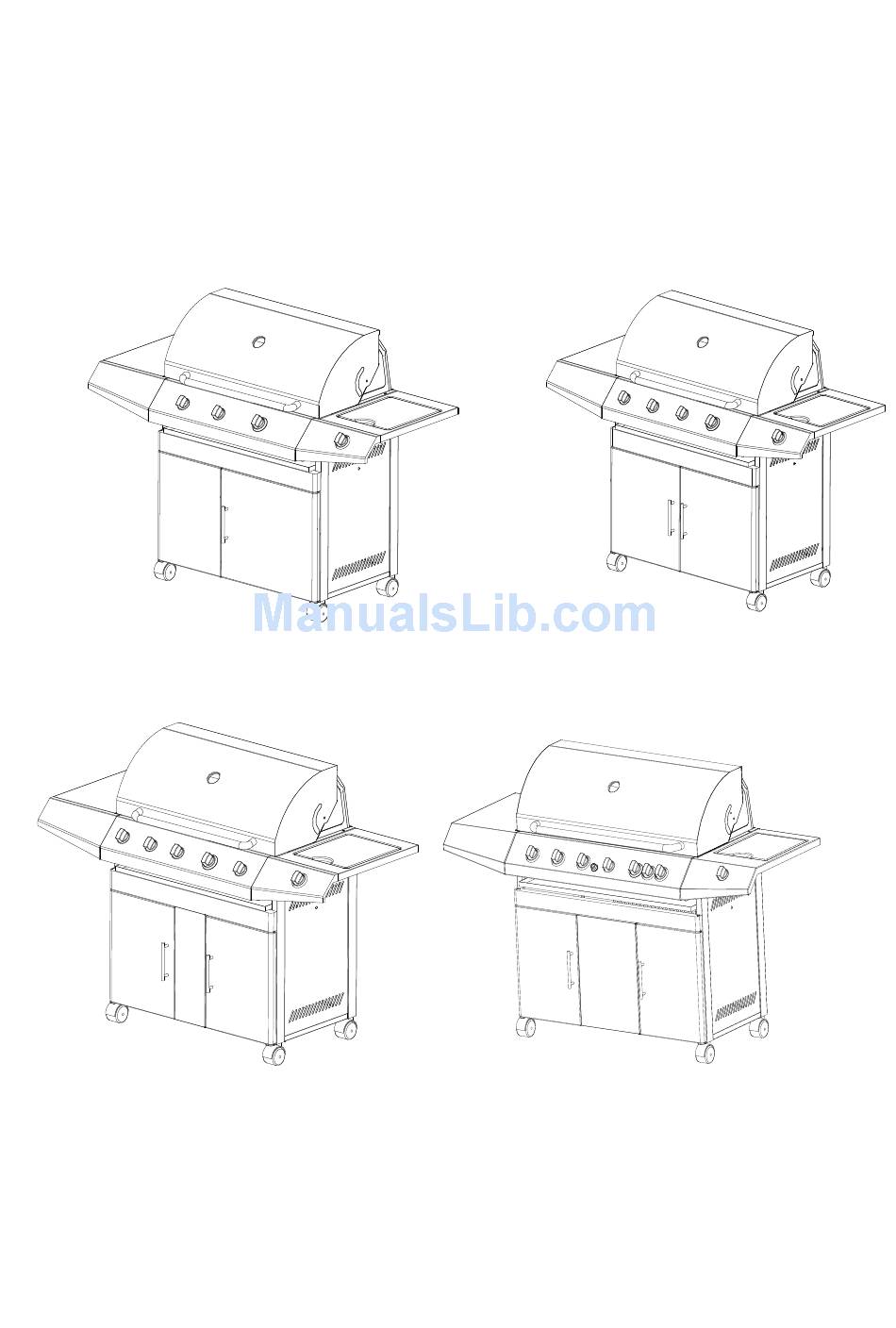

- Page 1 USE AND ASSEMBLY INSTRUCTIONS Model: HSQ-A213S; HSQ-B213S; HSQ-A214S; HSQ-B214S; HSQ-A215S; HSQ-B215S; HSQ-A216S; HSQ-B216S HSQ-A213S HSQ-A214S HSQ-A215S HSQ-A216S FOR OUTDOOR USE ONLY PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY RETAIN THIS MANUAL FOR FUTURE REFERENCE...
- Page 2 Technical Information HSQ-A213S; HSQ-B213S Model no TOTAL HEAT 11.9kW (865g/h) 11.9kW(865g/h) for Gas Categories INPUT:(Hs) (Qn) For Gas Category I3B/P 3+ (28-30/37), 3B/P (30) (50) GAS CATEGORY: 3+ (28-30/37) 3B/P (30) 3B/P (50) TYPES OF GAS: LPG Gas Mixtures Butane/ Propane...
- Page 3 Ø0.89 mm back burners Ø1.02 mm back burners HSQ-A216S; HSQ-B216S Model no TOTAL HEAT 24.6kW (1790g/h) 24.6kW(1790g/h) for Gas Categories INPUT:(Hs) (Qn) For Gas Category I3B/P 3+ (28-30/37), 3B/P (30) (50) GAS CATEGORY: 3+ (28-30/37) 3B/P (30) 3B/P (50) TYPES OF GAS: LPG Gas Mixtures Butane/ Propane LPG Gas Mixtures...
- Page 4 If you have any queries regarding these instructions, contact your local dealer. WARNING Hazardous fire or explosion may result if instructions are ignored It is the consumer’s responsibility to see that the barbecue is properly assembled, installed, and taken care of. Failure to follow instructions in this manual could result in bodily injury and/or property damage.
- Page 5 M6x12 10PCS Expanded view: (Based on model HSQ-A214S, assembly for other models is the same.)
- Page 8 M6X12X7 PCS M6X12X2 PCS M6X40X4 PCS M6X7 PCS M6X60X8 M6X12X4 PCS M6X4 PCS M6X40X2 PCS M6X2 PCS M6X12X4 M6X2 PCS M6X40X2...
-
Page 9: Installation
IMPORTANT: Read the following instructions carefully and be sure your barbecue is properly installed, assembled and cared for. Failure to follow these instructions may result in serious bodily injury and/or property damage. If you have any questions concerning assembly or operation, consult your dealer or LPG Gas Company. ... -
Page 10: Operation
The length of the hose hall should not exceed 1.5m. FIXING THE REGULATOR TO THE GAS BOTTLE Confirm all barbecue control knobs are in the off position. Connect the regulator to the gas bottle according to your regulator and bottle dealer’s instructions. Leak testing (to be performed in a well-ventilated area). - Page 11 4. If the burner fails to light after 5 seconds, turn to “OFF” position and wait five minutes. Then begin again from step 2.If the burner still fails to light after several attempts, go to step 6, and call your local dealer for service. 5.
-
Page 12: Troubleshooting
Do not immerse the gas controls or manifold in water. Check burner operation after carefully refitting into body. Immerse the gas controls or manifold in water. Check burner operation after carefully refitting into body. Fixings Annual checking and tightening of metal fixing is recommended. Storage Store your barbecue in a cool dry place.
