Extensolar Module
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Extensolar and is the answer not in the manual?

Questions and answers

Summary of Contents for Arts Energy Extensolar

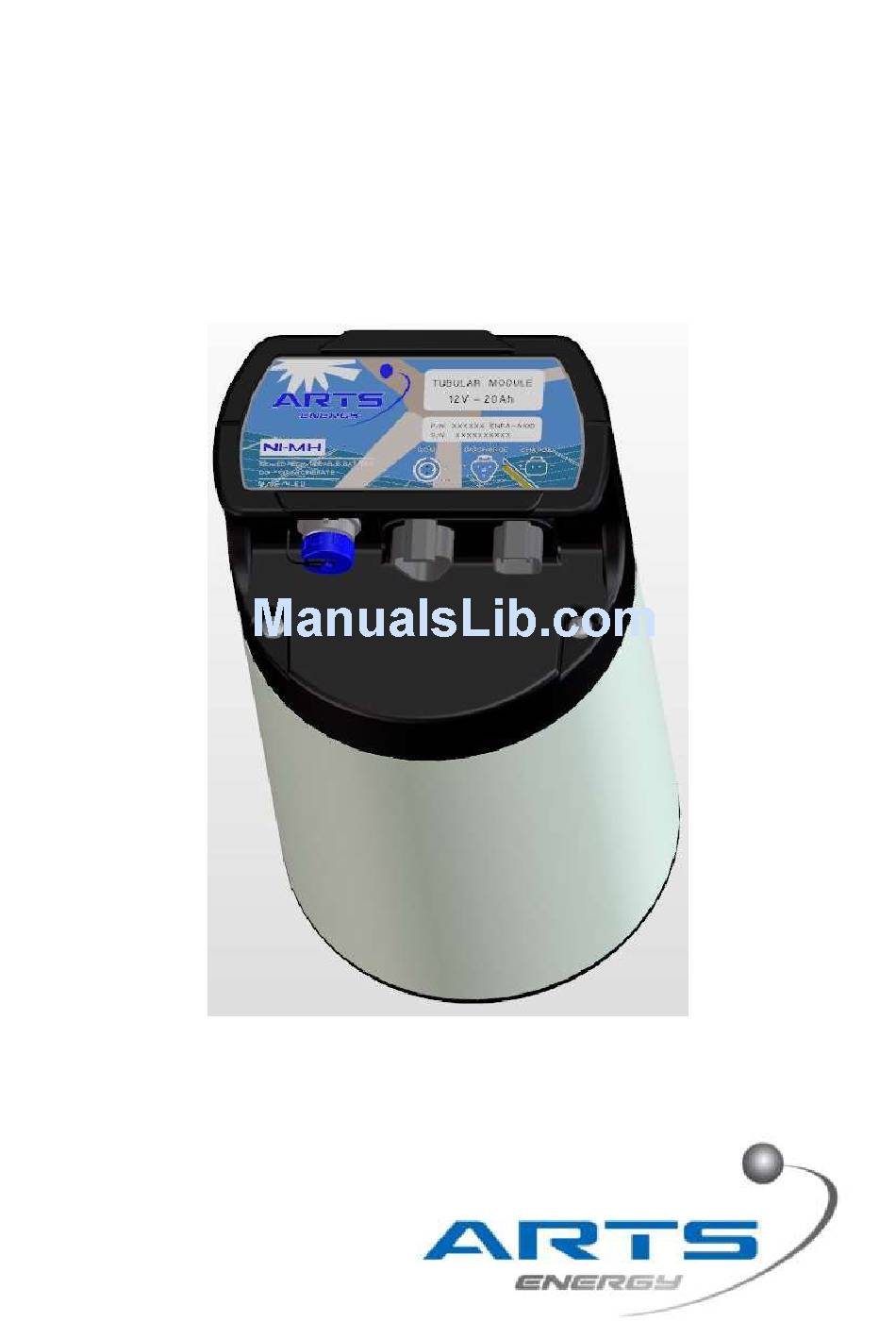

  • Page 1 Extensolar Module User Manual...
  • Page 2 4. Unplug the CCPS from the mains and unplug the EXTENSOLAR Battery. 5. Connect the main poles of the EXTENSOLAR Battery to your application (draining less than the maximum 15A current available for the EXTENSOLAR Battery). The battery should...
  • Page 3 Specific connector:...
  • Page 4 CAUTION:  NEVER • Immerse the battery or pour water on the battery. • Use improper CCPS to charge the battery. • Reverse charging of the battery. • Open battery outside of authorized network, disassemble the battery blocks or cells (be aware that alkaline electrolyte is contained inside, and electrolyte exposure can be harmful).
  • Page 5 Fuses: If the fuses are blown because the maximum discharge current reached more than 15 Ampere for a prolonged time, the customer has to contact ARTS ENERGY after Sales service before opening the product because it can remove the guaranty.

  • Page 6: Troubleshooting

    The battery is empty Charge the battery with the CCPS (charger). The discharge fuse is blown. Please contact ARTS energy before open the battery to change the fuse. The battery is in sleep mode. To wake up the battery: The battery stayed in discharge mode with...
  • Page 7 THE BATTERY DOES NOT GO TO TRICKLE CHARGE (STATUS LED GREEN) Possible causes Actions The battery is brand-new. After several cycles of charge & The duration of the balancing charge is discharge with extended charges, the set to 5 hours during the assembly duration of the balancing will be set to process and increases automatically its value (5hours).

  • Page 8: Personal Notes

    PERSONAL NOTES...
  • Page 9 Published By ARTS Energy Information in this document is subject to change without notice and becomes contractual only after written confirmation by ARTS Energy __________________________ ARTS Energy 10 Rue Ampère- Zone industrielle 16440 Nersac Téléphone général : +33 (0)5 45 90 35 50 Fax général : +33 (0)5 45 90 37 65...
