Software
Press Apply and then OK. The barcode reader should now be recognized by the soft-
ware.
4.1.4

Programming the Barcode Reader

The barcode reader must be programmed once after the first installation to ensure that it
reads all the barcodes correctly. This step will calibrate the scanner's position. The sys-
tem will search different positions to find the optimal position for barcode reading. This
position is then saved in the file SCANNER.SRC. The calibration takes about 5-10 min-
utes.
Click on the menu item Tests in the BEST-NMR Administration Toolbox (see
4.1:). The following window will then open:

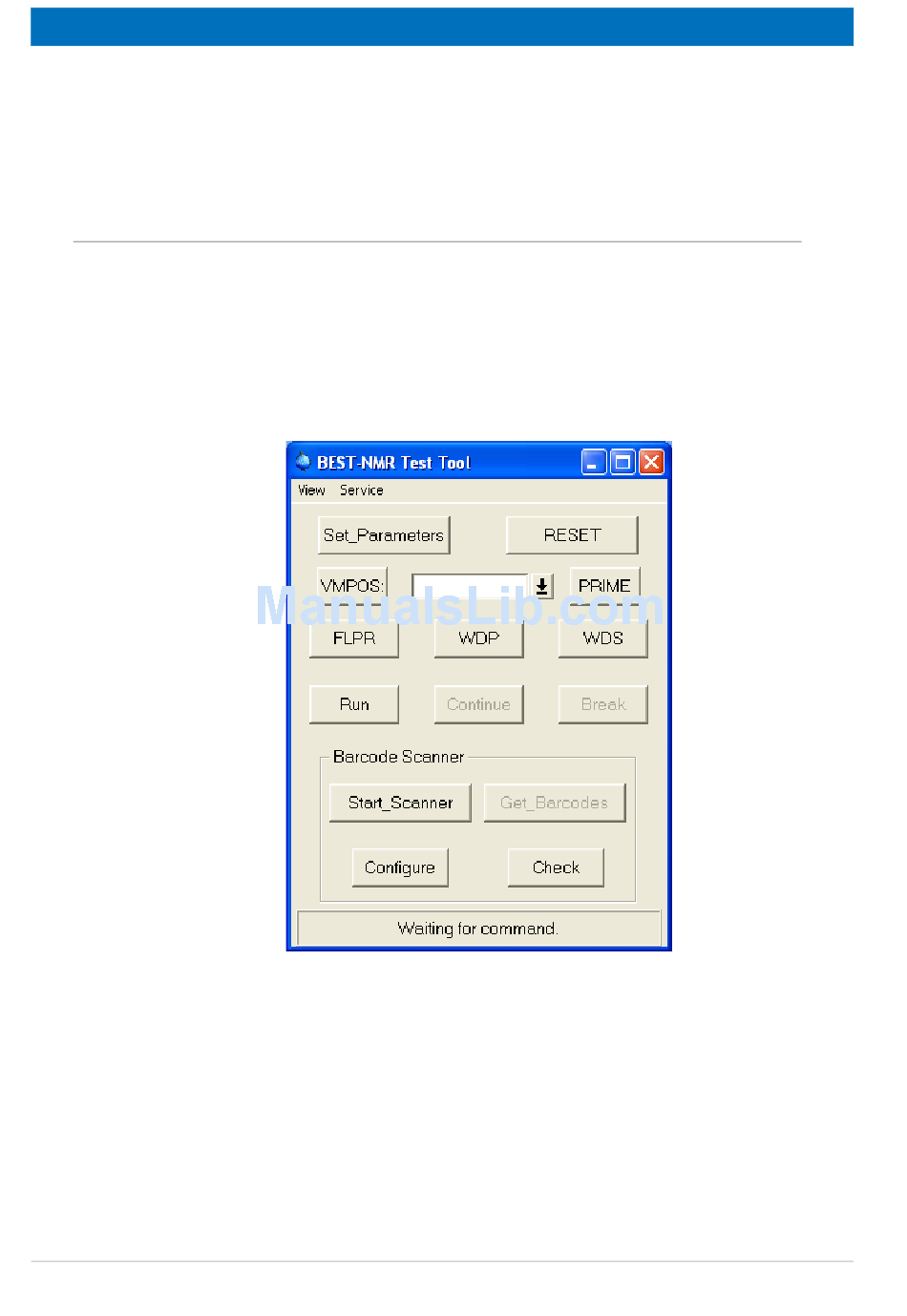

Figure 4.4: BEST-NMR Test Tool

16
Figure
Z31545_00_006
