Summary of Contents for Reid & Associates CC AMF120-4

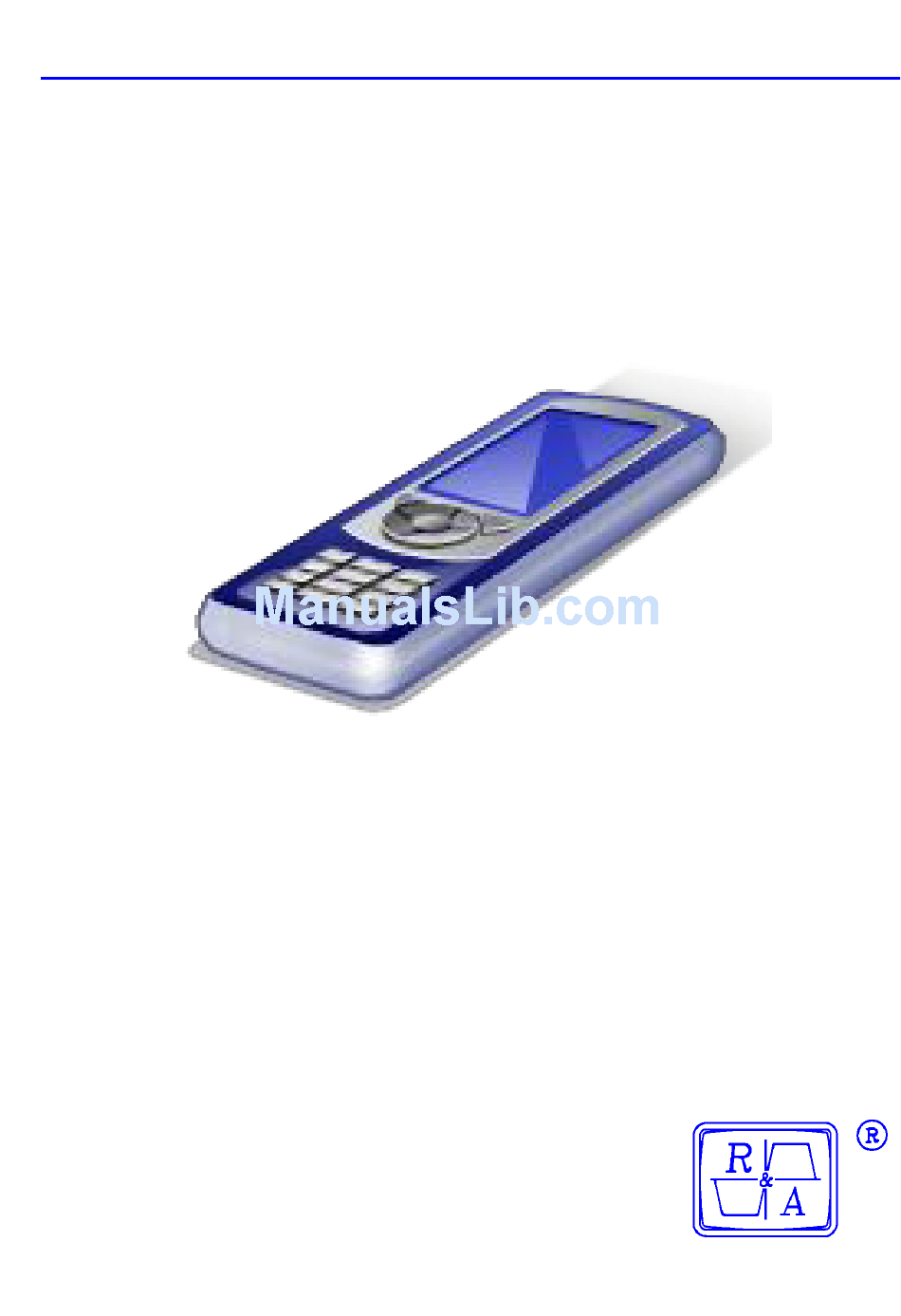

- Page 1 AMF120-4 GSM MODEM Know the status of your Genset any time, anywhere via SMS. The SIM card PIN MUST be set to either ‘No PIN’ OR to ‘20354’.
- Page 2 If a number is enabled as All then Alerts, Alarms and Warnings will be sent to that number. If the AMF120-4 Mode is MANUAL a single SMS is sent advising that the Mode is MANUAL. Alerts, Alarms and Warnings will NOT be sent until the Mode is changed to AUTO or TEST. This avoids unnecessary SMS’s while commissioning or fault finding.
- Page 3 Shutdown alarms are displayed in the following priority (1 is highest priority): Line one: 4.1 Phase Rotation fault. 4.2 Over-speed. 4.3 Under-speed. 4.4 High Alternator volts. 4.5 Low Alternator volts. 4.6 No Fuel. AMF120-4 GSM MODEM © 2008 Reid & Associates cc P a g e R e v . 4...
- Page 4 Location of the genset. Casino DBN set #3 SMS from AMF120-4 Mode is OFF!! Controller Mode: OFF, AUTO, MANUAL or TEST and Mains status. AMF120-4 GSM MODEM © 2008 Reid & Associates cc P a g e R e v . 4...
- Page 5 Cool Down= 56s G=232V 233V 230V Genset voltages (3 phases). 49.9 056.4 13.9 0.0 Frequency, hour meter, battery voltage and battery charge amps. AMF120-4 GSM MODEM © 2008 Reid & Associates cc P a g e R e v . 4...
- Page 6 As well as sending SMS’s, the AMF120-4 can receive SMS’s. The AMF120-4 can receive SMS’s which are Request information or Command (change settings). For ease of use the SMS text is NOT case sensitive so ‘info’, ‘Info and ‘INFO’ are all accepted.
- Page 7 Third number is disabled for any SMS. #3=+27743371981=Off The AMF120-4 uses the International numbering format of +27 in place of the 0, so a 082 number is shown as +2782XXXXXXX. This allows the receiving and sending of SMS’s from a cellphone in one country to an AMF120-4 in another country.
- Page 8 Sets the second or third number in the GSM SMS Numbers list to the number of the cellphone sending the SMS. The GSM SMS Numbers can be viewed by sending a Smsl SMS the AMF120-4 as described on the previous page.
- Page 9 The GSM SMS Numbers can be viewed by sending a Smsl SMS to the AMF120-4 as described on the previous page. The GSM SMS Enable can be viewed on the AMF120-4 LCD. The GSM SMS Enable can be changed using the AMF120-4 LCD and function buttons.
- Page 10 Changes the SMS Enable setting to Partial Se3=Off Changes the SMS Enable setting to Off Mod=test Runs the Genset in Test mode for 4 minutes AMF120-4 GSM MODEM © 2008 Reid & Associates cc 10 | P a g e R e v . 4...
-
Page 11: Warranty
Web site: http://www.reid.co.za Copyright 2008 Reid & Associates cc. Under the copyright laws, neither the documentation, nor the AMF120-4, nor the printed circuit boards, nor the software may be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine readable form, in whole or part without the prior, written consent of Reid &...
