- Page 1 ² User’s instructions 1/23 eNod3-D : User’s instructions 165 752-A...
-
Page 2: Table Of Contents
11.2.11 Effective end of cycle......................19 11.3 Digital inputs utilization ........................19 11.3.1 Start cycle..........................19 11.3.2 Suspend current cycle ......................19 11.3.3 Stop cycle ..........................20 12 DOSING BY UNLOADING FUNCTIONING MODE : ..........20 12.1 Reloading management......................... 22 2/23 eNod3-D : User’s instructions 165 752-A... - Page 3 12.2.9 Tolerances..........................23 12.2.10 End of cycle waiting time......................23 12.2.11 Effective end of the cycle .....................23 12.3 Digital inputs utilization ........................23 12.3.1 Start cycle..........................23 12.3.2 Suspend current cycle ......................23 12.3.3 Stop cycle ..........................23 3/23 eNod3-D : User’s instructions 165 752-A...
-

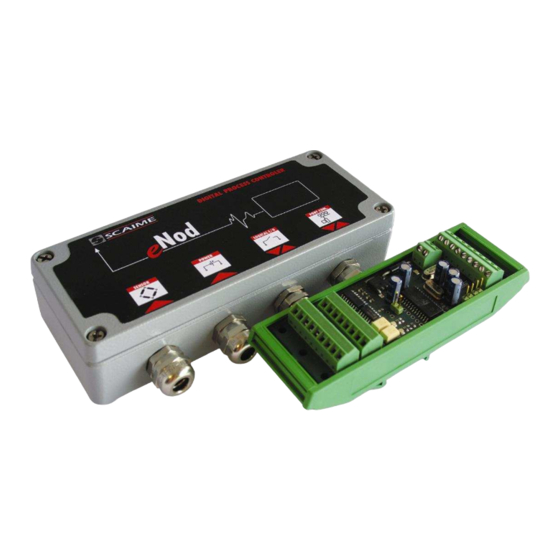

Page 4: General Presentation
RS485/422, RS232 and CANbus outputs supporting ModBus-RTU, SCMBus and CANopen protocols. Each module is also provided with 2 digital inputs and 4 digital outputs, authorizing synchronization of functions with automation and alarm management. SCAIME provides the eNodView software to facilitate installation of... -
Page 5: General Characteristics
(up to 4) management dosing (by filling or by unloading) processes control 5/23 eNod3-D : User’s instructions 165 752-A... -
Page 6: Interfaces
The ‘POWER’ light on the board shows wheter or not the power supply is correctly connected. 2.2 Connection to load cell(s) : eNod3-D supplies power to the load cells (5 V Up to four 350Ω load cells can be connected in parallel. -
Page 7: Connection Of Inputs And Outputs
(PB) : 2.3.2 Digital outputs Opto-insulated outputs characteristics max currect @ 40° C 0.4 A max voltage in open state 55 V resistance in the ON state insulation voltage 2500 V 7/23 eNod3-D : User’s instructions 165 752-A... -
Page 8: Communication Interfaces
OFF : Half duplex CAN / RS jumper ON : RS OFF : CAN CANL CANH eNod3-D is capable of communicating with an automatic control for each connection : - RS485 / 422 CAN/RS jumper ON - RS232 CAN/RS jumper OFF... -
Page 9: Communication
The CAN interface is connected using the CANH, CANL and REF (not mandatory) connections on the 9-pin connector. COMMUNICATION : eNod3-D can communicate using several protocols : - ModBus RTU - SCMBus standard format or fast format. - CANopen Switching from the SCMBus protocol to the ModBus-RTU protocol (and reciprocally) can be done by software programmation. -
Page 10: Calibration
The linearization formula is as follows Corrected measurement = Meas – A (Meas) – B(Meas) – C where Meas = current measurement The three A, B and C coefficients can be determined using eNodView software. 10/23 eNod3-D : User’s instructions 165 752-A... -
Page 11: Inputs Functioning
Depending on the choosen logic (positive or negative), the tare is triggered by a rising or a falling edge. 6.3 Functions specific to each functioning mode : See corresponding sections for a complete description. 11/23 eNod3-D : User’s instructions 165 752-A... -
Page 12: Outputs Functioning
(negative logic). Outputs 1 and 3 are assigned to input 1 and outputs 2 and 4 are assigned to input 2. 7.3 Functions specific to each functioning mode : See corresponding sections for a complete description. 12/23 eNod3-D : User’s instructions 165 752-A... -
Page 13: Feeding Mode In Dosing Processes
(if used) or the A/D converter. It allows to attenuate the frequencies within a band defined by a high and a 13/23 eNod3-D : User’s instructions 165 752-A... -
Page 14: Transmitter Functioning Mode
: gross measurement net measurement measurement in A/D converter points A single measurement is transmitted per rising or falling edge (depending on the configured logic) on the input signal. Fig. 4 14/23 eNod3-D : User’s instructions 165 752-A... -
Page 15: Measurement Window (Fig. 5)
While the input is kept at the right level, a series of measurements are transmitted at the period defined by the ‘samplng period’ setting. Fig. 5 10.2.3 Clear Cancels current tare (same functioning as ‘cancel tare’ command). 15/23 eNod3-D : User’s instructions 165 752-A... -
Page 16: Dosing By Filling Functioning Mode
The filling functioning mode is a way to monitor a dosing cycle of a product by measuring the weight of a receptacle placed on a load cell. In this functioning mode, the dosing process is entirely managed by eNod3-D and especially thanks to its four digital outputs allowing to monitor the different phases of the cycle and to indicate errors. -
Page 17: Starting Conditions
‘start delay’ has elapsed. It also causes an output assigned to the ‘cycle in progress’ function to be set. 17/23 eNod3-D : User’s instructions 165 752-A... -
Page 18: Cycle Description
11.2 Cycle description 11.2.1 Flow rate control (optional) eNod3-D includes a flow rate control system. It makes possible to check that the flow rate during the cycle is sufficient. The device controls that te flow rate remains equal or superior to a minimal value. If it is not the case, an output assigned to ‘dosing failure’... -
Page 19: Target Weight And Inflight Weight
This input function has got two different effects : ∗ if the ‘relaunch cycle if suspended’ option is inactive : this edge-active input causes the feeding cycle to be stopped inhibiting the different outputs involved. 19/23 eNod3-D : User’s instructions 165 752-A... -
Page 20: Stop Cycle
In this functioning mode, the dosing process is entirely managed by eNod3-D and especially thanks to its four digital outputs allowing to monitor the different phases of the cycle and to indicate errors. - Page 21 Fig. 9 : dosing by unloading cycle with reloading phase at the start of the cycle ∗ : reloading holding time ∗ : start delay ∗ : motion time out ∗ : coarse feed effect neutralization time ∗ : fine feed effect neutralization time 21/23 eNod3-D : User’s instructions 165 752-A...
-
Page 22: Reloading Management
∗ : final stabilization time ∗ : end of cycle waiting time 12.1 Reloading management eNod3-D provides two mechanisms (optional) for reloading management.They allow eNod3-D to enter a reloading phase in case of a lack of product in the tank. -
Page 23: Target Weight And Inflight Weight
12.3.3 Stop cycle This edge-active input causes the feeding cycle to be stopped inhibiting the different outputs involved. 23/23 eNod3-D : User’s instructions 165 752-A...
