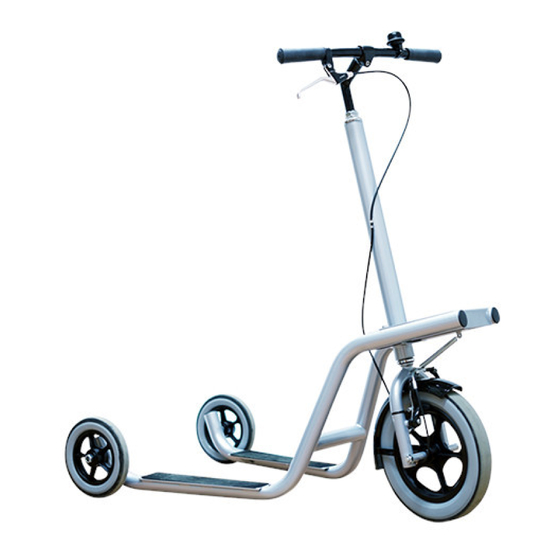

Summary of Contents for Monark Scooter 662

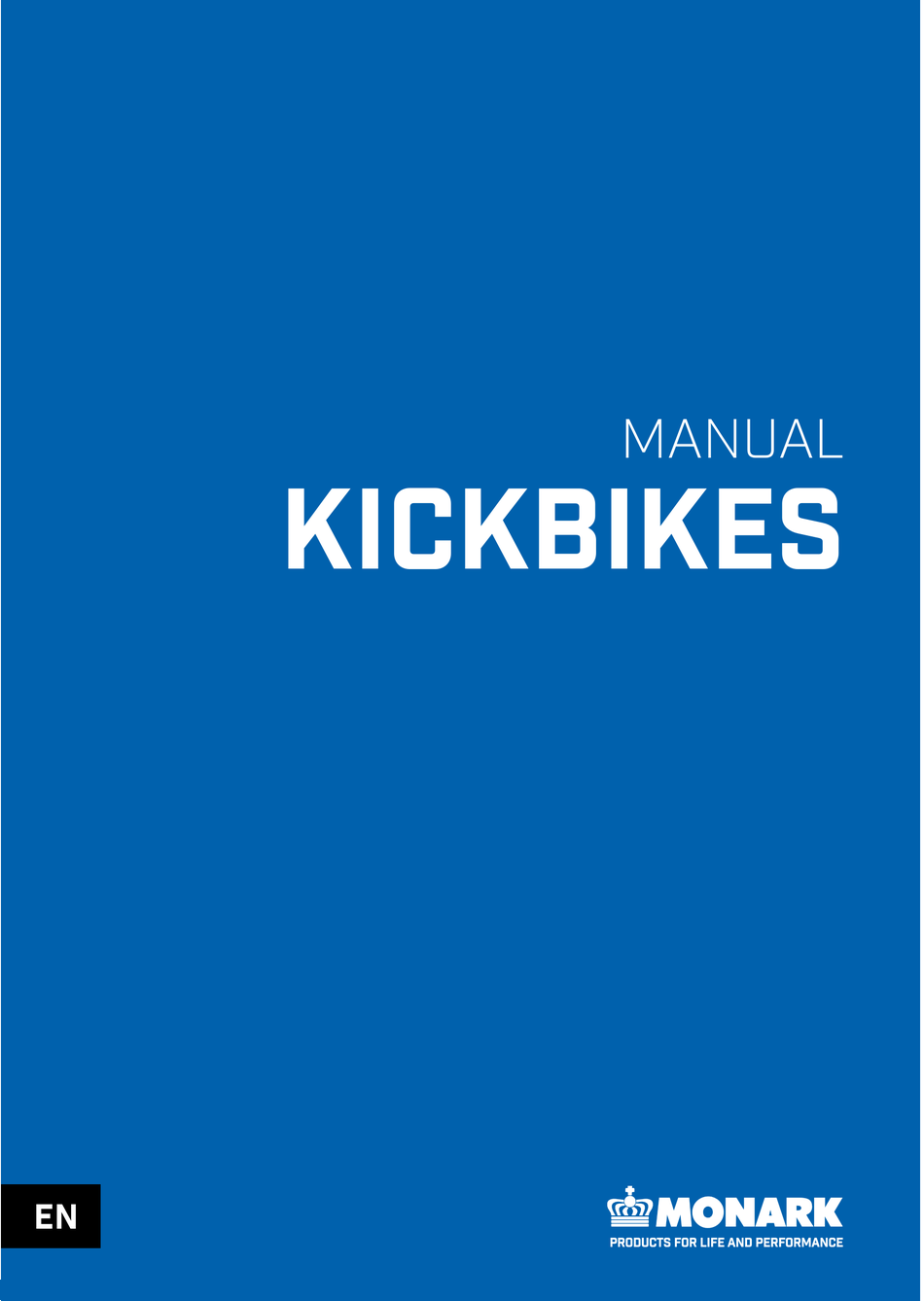

- Page 1 MANUAL kickbikes...
-
Page 3: Table Of Contents
Spare parts model 634 ���������������������������������� 12 Spare parts model 662 ���������������������������������� 13 Spare parts model 672 ���������������������������������� 14 Notes �������������������������������������������������������������� 15 Important Read the manual carefully before using the cycle and save it for future use. 2017 MONARK EXERCISE AB, Vansbro, Sweden... - Page 4 Monark bike is a good hard worker, a workhorse that can withstand hard and tough and ensures long life. Monark's bike is a unique product that is available in a variety of designs. Everything from the good old errand-boy's model, scooters, flatbed bikes, handicap bikes, tandem bikes to the famous post man's bike.
-
Page 5: Congratulations On Your New Kickbike
If you are unsure, ask your dealer and / or let they maintain your kickbike. Under all circumstances we recommend that you let your dealer maintain and repair all vital parts of the kickbike. Monark Kickbikes... -
Page 6: Assembly / Adjustment
Note! It is important that the MAX / STOP mark on the stem is not exceeded. In addition to the security risk, the frame can be damaged. Max / stop mark stem The handlebar stem must be recessed so that the height position mark is not visible. Monark Kickbikes... -
Page 7: Assembly Instruction Kickbike 634
Assembly instruction kickbike 634 NOTE! Tightening torque 24 Nm for all screws. Monark Kickbikes... -
Page 8: Assembly Instruction Kickbike 662
Assembly instruction kickbike 662 4 x M8x16 4 x M8 1 x M8 1 x M8 1 x M8x45 Monark Kickbikes... -
Page 9: Assembly Instruction Kickbike 672
Assembly instruction kickbike 672 2 x M8x50 4 x M8 2 x M8 24 Nm Monark Kickbikes... -
Page 10: Safety Precautions
If the braking effect is unusually weak. bearing must not have any play. The handlebars must move freely. Any questions? Contact a professional if you have any questions about the above points or if in doubt about the function of any of the parts. Monark Kickbikes... -
Page 11: Maintenance
If unsure, contact a professional! something has broken. These bearings should be repaired and adjusted by a professional. Ask the professional to check and lubricate this if you are leaving in your kickbike for a service check. Fig: Adjustment V-brake. Monark Kickbikes... -
Page 12: Spare Parts Model 634
Front wheel 200/50-100 for 8 mm axle Accessories 35140-3 Axle set, front wheel 6960-10 Additional load platform 35140-2 Bracket for front wheel, right 6934-40 Writing desk 6934-37 Parallel rod, complete 3112-3-64 Luggage carrier 6934-36 Steering connecting rod, complete 3112-6 Bracket for carrier Monark Kickbikes... -
Page 13: Spare Parts Model 662
Brake cable 03/03/6966 Front fork 03/04/6966 Frame 6966-38 Mudguard support 6966-35 Anti slip, black 6966-27 Plastic cap, black 5867 Washer M12 6167 Spring 6966-26 Rear wheel 200 mm Accessories 5284 Dome locking nut M12 6966-52 Plastic box with screws Monark Kickbikes... -
Page 14: Spare Parts Model 672
Rear wheel Supo-L 150 OK 12 2404-5 Brake cable 6970-6 Screw M12x60 6970-3-55 Front fork, silver 6970-9-55 Rear frame, silver 6970-3-58 Front fork, red 6970-9-58 Rear frame, red Accessories 71588 Screw MK6S M8x50 FZB 7600-1112 Dome locking nut M8 3270 Black basket Monark Kickbikes... -
Page 15: Notes
Notes _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ _______________________________________________ Monark Kickbikes... - Page 16 Version 1703 Art. No.: 7950-354 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
