SPECIFICATION SUBMITTAL

JOB NAME:

JOB NUMBER:

PROCESSORS

MODEL NUMBERS:

D E S C R I P T I O N

HomeWorks RF Processors comprise the major communication hub

of a HomeWorks RF system. Each RF Processor will support up to 32

RF Keypads and up to 64 RF Dimmers. RF system devices communi-

cate with the RF Processor via Radio Frequency.

Up to 4 RF Signal Repeaters may be used with each processor to

extend the range of the RF Processor.

A maximum of 16 RF processors may be connected together in a

system to support a total of 1024 RF dimmers/switches and 512

RF keypads.

M O D E L N U M B E R S

RF Processors

H-RFP-1P

RF Processor with 1 RS232 Port

H-RFP-2P

RF Processor with 2 RS232 Ports

RF Processor

048-020 1a 11.05.02

Page

Need help?

Do you have a question about the H-RFP-1P RF and is the answer not in the manual?

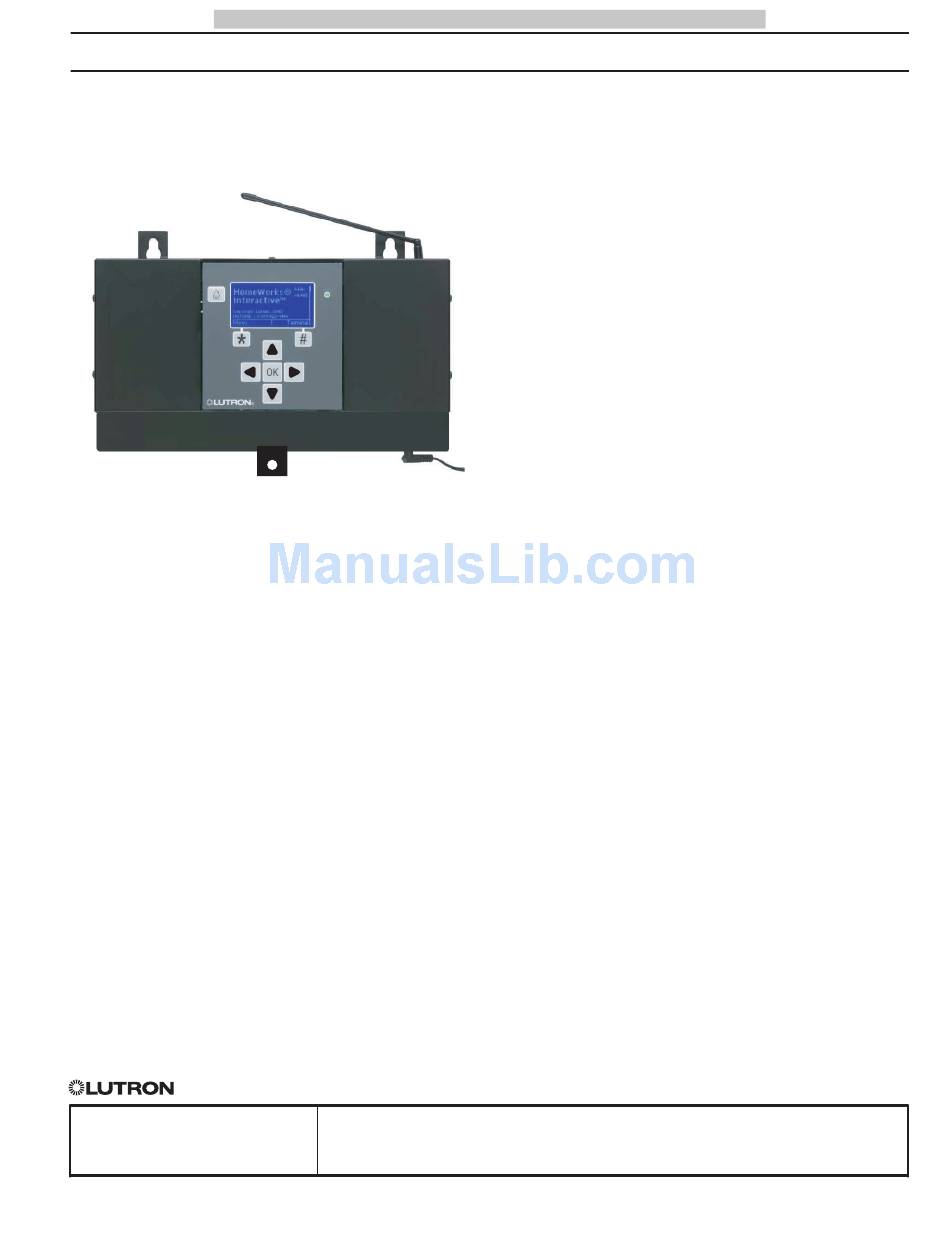

Page 1 ® HomeWorks RF Processors comprise the major communication hub of a HomeWorks RF system. Each RF Processor will support up to 32 RF Keypads and up to 64 RF Dimmers. RF system devices communi- cate with the RF Processor via Radio Frequency.
Page 2: Fcc Information
• Each RF Processor supports up to 32 50/60Hz • RS-232 port for integrating other equip- HomeWorks RF Keypads or Tabletop RF Output power: 24VDC, 500mA ment such as AV or HVAC. Keypads.
Page 3 HomeWorks Interactive PROCESSORS RF Processor 048-020 3a 11.05.02 D I M E N S I O N S Front View Side View (port cover removed) 6.7" (170mm) 1.77" (45mm) 8" (203mm) 0.70" (18mm) 6.16" (157mm) 5.77" (147mm) 11.54" 1.25" (293mm)
Page 4 HomeWorks Interactive PROCESSORS RF Processor 048-020 4a 11.05.02 I N T E R - P R O C E S S O R W I R I N G Wired Processor RF Processor RF Processor 1 2 3 4 1 2 3 4...
Page 5 • RF Dimmers cannot be controlled and RF Keypads will not function until they are RF Dimmer addressed and programmed. See the HomeWorks Interactive Programming Utility online help. RF Keypad • RF Processors and RF Signal Repeaters provide RF coverage for an area of...
