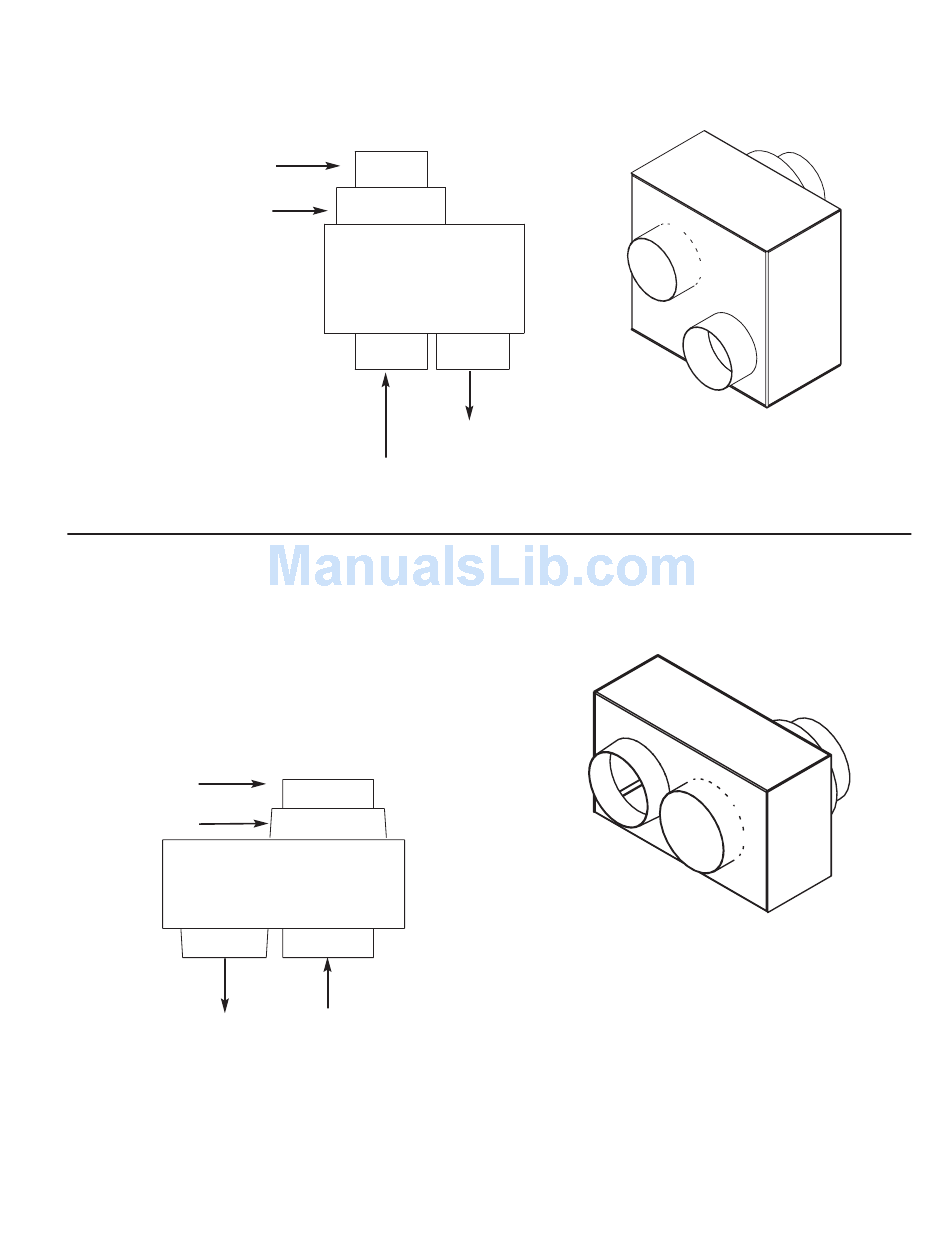

Venting Instructions:
Concentric Venting Adapter
CVA-4
Flue Outlet
Concentric Side
Air Inlet
Concentric Side
Venting Instructions:
Concentric Venting Adapter
CVA-6
Flue Outlet
Concentric Side
Air Inlet
Concentric Side
Air Inlet
Non-Concentric Side
CVA
Flue Outlet
Non-Concentric Side
CVA
Flue Outlet
Non- Concentric Side
Air Inlet
Non-Concentric Side
13
Concentric Venting
Adapter - 4 inch diameter
(CVA-4)
Concentric Venting
Adapter - 6 inch diameter
(CVA-6)
