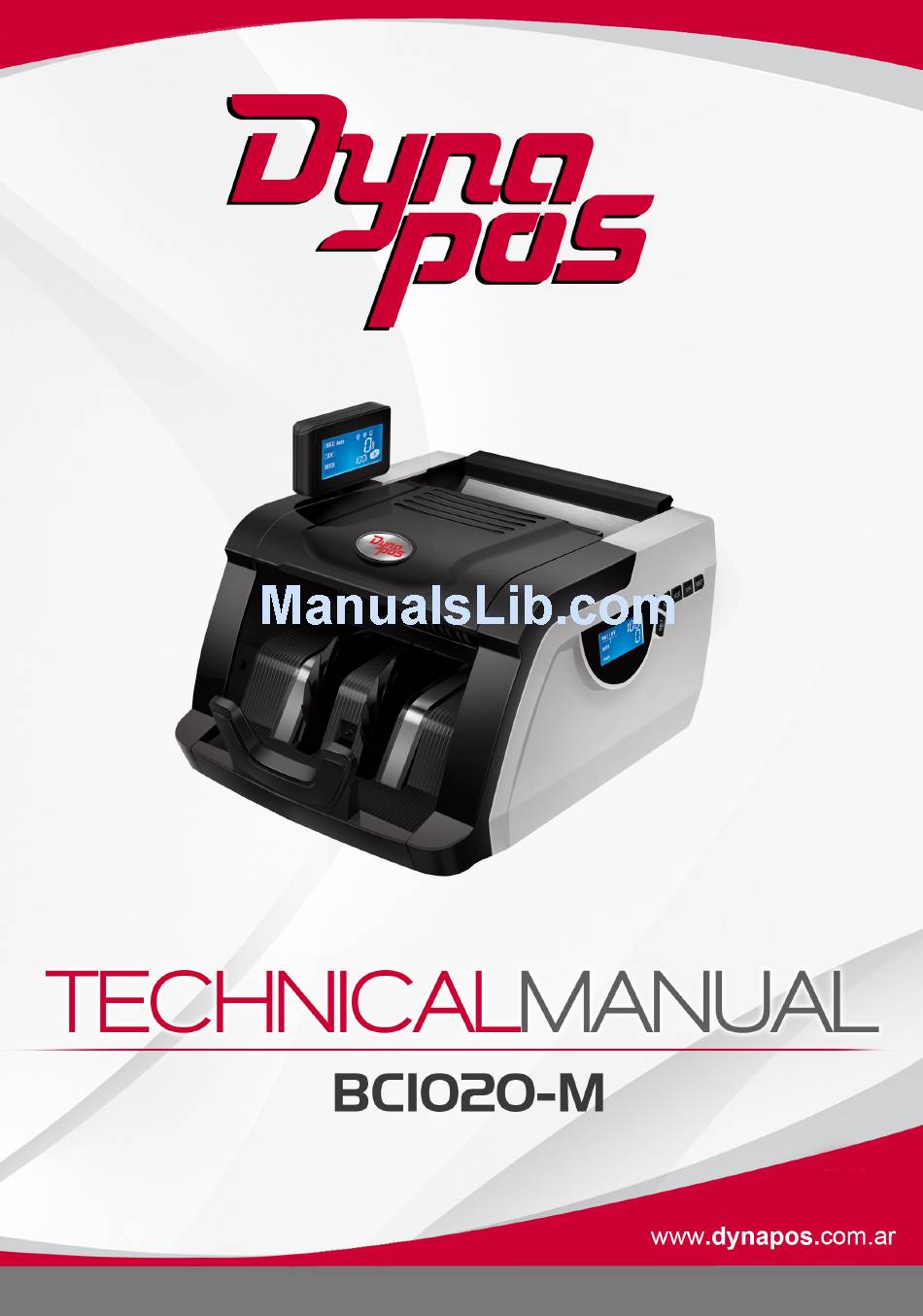

Summary of Contents for Dynapos DCI020-M
-
Page 2: Main Motor
1. Main parts and function introduction 1.1 hopper : Using as bracket for bills loading, bills run Hopper smooth when the gap of hopper and feeding roller is proper. The machine operates while the feeding sensor incept anything. 1. 2 magnetic board Structure of bill counter’s sensor passing, The main magnetic head is used to detect whether the detected bill has magnetism printing ink or if the bill’... - Page 3 It is the heart core of the whole machine’s operating. The system sends out instruction of start or begin to make the machine operate while the hopper sensor working. 1.6 small motor It used as transmitting device, The system Small motor sends out instruction of start or begin to make the machine running while the hopper sensor working.
- Page 4 2.2 UV sensitivity adjustment --There are 10 level of UV sensitivity for selection, Hold press ”SET/-10” button for 3-5 seconds, the counting display window shows “OP-A”, batch display window shows one digit of the number”OFF,01,02….10”, press the button “MOOD” to select ‘UV’ sensitivity as you want, After select the right value, press”...
- Page 5 2.5 False money counted ON/OFF Hold press False money can counted as one PC or not, Hold press ”SET/-10” button for 3-5 seconds, then press the “FUC.” One by one till the counting display window shows “OP-U”, press “Mode” to choose YES/NO as you want. 3．...
- Page 6 3.2 Adjust up and down gap of the hopper: Adjust a proper up and down gap between hopper and feeding roller according to turning the bill adjustment wheel if feels too loose pull. Turn it right to decrease the thickness ，Turn it left to increase the thickness .
-
Page 7: Sensor Position
3.3 plug board and electronic program 4. Sensor position:... - Page 8 5. Error and Solution: 5.1 Self checking (Error appear when switch on machine) 1. C-1（Start sensor） Matter analysis: clearance sensor has dust blocked or been destroyed; Solution:...
- Page 9 a) clean the sensor or replace it above-mentioned has no problem, please maintain or replace circuitry board. 2. C-2（clearance sensor） Matter analysis: clearance sensor has dust blocked or been destroyed; Solution: b) clean the sensor or replace it above-mentioned has no problem, please maintain or replace circuitry board. 3.C-3 (left counting sensor ) or C-4 (right counting sensor) Matter analysis: a).
- Page 10 above-mentioned has no problem, please maintain or replace circuitry board. 5. C-9( Magnetic sensor) Matter analysis: a) interfere from magnetic head b)Magnetic electronic circuit has problem . Solution: c) replace the magnetic head . d) check the connection between MG head and main board, if well ,then replace main board 5.2 Counting error 1.
- Page 11 a) check magnetic head , connect wire well or not, replace it if been checked problem b) adjust proper MG sensitivity much lower by setting program OP-b c) adjust 0.2mm gap between magnetic head and pressing ruble wheel. ( one note feel loosing, 2 notes feel little tighten) d) above-mentioned has no problem, please maintain or replace circuitry board.
- Page 12 start sensor destroyed ; relative circuitry problem. Solution: a) check whether choosing manual start. b) check whether start sensor has too dust or plug fallen. c) check the start sensor , replace it if been checked with problem. d) above-mentioned has no problem, please maintain or replace circuitry board. 2.
- Page 13 check whether power input is consist with model’s, or power supply line has fallen replace fuse check whether AC adaptor has fallen check whether input and output transformer plug has fallen above-mentioned has no problem, please maintain or replace circuitry board. 5.
- Page 14 Matter analysis: too much dust on surface of silicon battery; battery destroyed or UV lamp has problem; low sensitivity; relative circuitry problem. Solution: a) clear glass b) replace silicon battery or UV lamp c) adjust higher UV sensitivity . d) adjust proper UV voltage . e) please replace or maintain main board if model still doesn’t work.
- Page 15 d) install the connecting line, then put hopper back, after connect power. 2. replace feeding sensor a) operate according to step as 1. b) replace unload the feeding sensor by new one, then install it. c) operate according to in 1. 3.replace feeding roller a) unload left and right cover first, pick out main motor strap.
- Page 16 c) press out the lock spring local on the left feeding bearing by small “-” shape screwdriver, then unload the plastics roller.\ d) Press out the block which is on the bearing by small“+” screw driver, if necessary, it can be tapped out.
- Page 17 4. replace the UV assembly a) Take off the left cover, then take off the up cover, b) Take off the jack of UV assembly, take out the plastic cover, pull the connector. c) Turn up the UV assembly right side by “_”shape screw driver, take off the screw on the UV assembly.
- Page 18 b) Take out the impeller by 5.5mm spanner. c)Turn over the impeller, take off the screw as, change the clearance sensor. 7 Replace small motor a) Take off the left ,right cover, disconnect the small motor. b) Loose the screw on the bottom of the power board ;take off the small motor chain., Take off the screws as picture by”+”...
- Page 19 8 Replace Main motor a) Open the left and right cover, take off the chain of main motor, loosen the screw, take off the turning wheel, take off the screw ,Disconnect the main motor with capacitor. Take off the main motor from back of the machine, take off the screw. Replace the main motor , then fix all up.
- Page 20 10. Replace magnetic head a) Take off left cover, open the power board bottom. b) Take off the screw on the main board by 5.5mm spanner, disconnect the magnetic head. c) Take off the screws on the magnetic head, take off the magnetic head presser. d) Take out the magnetic head and pull out the connect wire from the hole.
