EntraPass KT-400 Installation Manual

Ethernet four-door controller
Hide thumbs Also See for KT-400:
Table of Contents

Advertisement

Quick Links

Download this manual

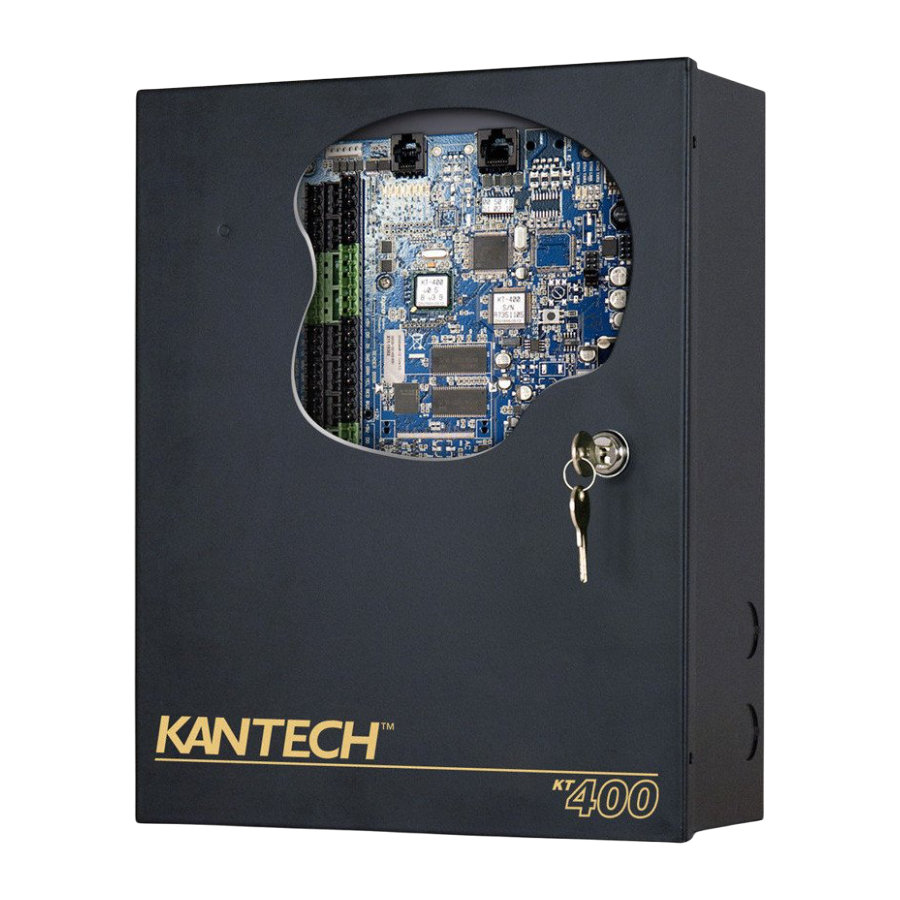

KT-400
Ethernet Four-Door Controller
Installation Manual
wwww.EntraPASS.com
8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KT-400 and is the answer not in the manual?

Questions and answers

Summary of Contents for EntraPass KT-400

  • Page 1 KT-400 Ethernet Four-Door Controller Installation Manual wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...
  • Page 2 / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com 8641 S. Warhawk Rd. Conifer, CO 80433 Patrick.McAllister@EntraPASS.com (303) 670-1099 (303) 679-8949 fax wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...

  • Page 3: Table Of Contents

    Troubleshooting ............................28 Default Initialization ......................... 29 How to reset the KT-400 Ethernet Four-Door Controller for Factory Default DHCP mode ..29 KT-400 Ethernet Four-Door Controller Maintenance Recommendations ..........30 Configuring the KT-400 Ethernet Four-Door Controller with the Web Configuration Page ....31 Optional Documentation ......................
  • Page 4 / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...

  • Page 5: Pre-Installation Information

    The equipment is installed in a metallic cabinet that meets the applicable requirements for a FIRE ENCLOSURE. Note: When installed on the North American Market, powered via the UL, cUL Listed 75VA Transformer, the KT-400 Ethernet Four-Door Controller shall be connected to the mains by a LICENSED ELECTRICIAN in accordance with the applicable rules of the National Electrical Code or Canadian Electrical Code regarding this type of connection.

  • Page 6: Technical Support

    / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Technical Support For technical assistance with the KT-400 Ethernet Four-Door Controller and other EntraPASS products, contact technical support, Monday to Friday, at (303) 670-1099. wwww.EntraPASS.com...

  • Page 7: Overview

    • 1 USB 2.0 Host Note: You can connect a loop of KT-200 controllers on the RS-485 of the KT-400 if not mixed with other controllers (KT-100, KT-300 and KT-400). Note: The 10/100Base-T (ETH2), RS-485 (COM2) and USB 2.0 Host communication ports are to be used ONLY on upcoming versions of the KT-400 controller.

  • Page 8: Inputs

    / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Inputs There are 16 onboard inputs on the KT-400 Ethernet Four-Door Controller. Up to 240 more can be added through the If using the KT-MOD-INP16 addition of expansion modules, such as the KT-MOD-INP16, for a total of 256 inputs.

  • Page 9: Downloadable Firmware

    KT-MOD-INP16: The KT-MOD-INP16 is a 16-zone input expansion module. The module supports daisy-chaining which can add up to 15 KT-MOD-INP16 for a total of 240 external inputs per KT-400 Ethernet Four-Door Controller. The KT-400 Ethernet Four-Door Controller has 16 onboard inputs which gives a total of 256 inputs per controller.
  • Page 10 Figure 1: KT-400 Ethernet Four-Door Controller PCB View wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...
  • Page 11 KT-400 Ethernet Four-Door Controller Installation Manual Figure 2: KT-400 Ethernet Four-Door Controller Inputs and Outputs View wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...
  • Page 12 Figure 3: KT-400 Cabinet Models for North America and European Union wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...

  • Page 13: System Architecture

    / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com KT-400 Ethernet Four-Door Controller Installation Manual System Architecture The KT-400 Ethernet Four-Door Controller can be used through various site applications with EntraPass Special, Corporate and Global Editions. Applications with EntraPass Special and Corporate Editions with Multi-site Gateway.
  • Page 14 / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Figure 5: USB-485 with EntraPass Special and Corporate Editions with Multi-site Gateway Figure 6: VC-485 with EntraPass Global Edition and Global or Multi-site Gateway wwww.EntraPASS.com...
  • Page 15 KT-400 Ethernet Four-Door Controller Installation Manual Figure 7: Over the Internet with a KT-NCC and EntraPass Global Edition Figure 8: Over RS-232 straight from the EntraPass RS-232 COM port wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...

  • Page 16: Heartbeat Led Patterns

    Figure 1. This information is particularly useful when connecting the controller to the rest of the EntraPass system. The following table lists all conditions along with a brief description. Refer to Table 3, if you must reset or change the communication mode of the KT-400 Ethernet Four-Door Controller.

  • Page 17: Technical Specifications

    UL 294, UL 1076, C-Tick Note: The KT-400 is capable of restarting automatically after total power loss and will keep the programming for more than 120 hours of power interruption. The design is using flash memory for saving access rules.

  • Page 18: Electrical Specifications

    KT-400 Expansion Module 16-Output with SPI Cable 41 cm (16 in) KT-MOD-CAB KT-400 Expansion Module Cabinet, Black, with SPI Cable 91 cm (36 in), Lock and Two Keys KT-MOD-CABEU KT-400 Expansion Module Cabinet, Black, with Electrical Parts, SPI Cable 91 cm (36 in), Lock and...
  • Page 19 KT-MP500 Mounting Plate Dimensions Drawing Miscellaneous Items CBLK-10 Cable kit, RS-232 cable 30 m (100 ft) with RJ-12 connectors for PC to master KT-400, 740-1023 (DB9F to RJ-12) adaptor and 740-1041 (DB9M to DB25F) adaptor USB-485 USB-485 interface, USB cable 0.9 m (3 ft) and USB drivers on CD-ROM...

  • Page 20: Models Information

    / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Models Information KT-400: Cabinet with one KT-400 for North America, up to two expansion modules can be installed in the cabinet, • • KT-400-PCB: KT-400 with parts, •...

  • Page 21: Installing The Kt-400 Ethernet Four-Door Controller

    Stay away from electrical or communication devices The KT-400 cabinet has been designed to be mounted on a wall without any additional enclosures. The cabinet is large enough to accommodate the battery backup supply and the necessary wiring connections for most applications. EMT (Electrical Metallic Tubing) conduit knockouts are provided in 1.9 cm (0.75 in) on all sides of the cabinet.

  • Page 22: Hooking Up Inputs

    Connecting the red wire lead (or power lead) of a 5 VDC reader to the 12 VDC terminal may damage the reader. See your reader installation procedure for proper power connection. Up to 4 readers can be connected to a KT-400. They can be installed on one door to control both entry and exit or on four separate doors operating independently to control one- way access.

  • Page 23: Relay Controlled Outputs

    The normally closed tamper switch must be connected to the dedicated tamper input, next to the EGND. Note: The tamper switch is required for a UL listed installation. wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...

  • Page 24: Connecting The Kt-400 Ethernet Four-Door Controller

    KT-400. The EGND (earth ground) terminal cannot be used for signal ground, only use the GND and AUX 12 VDC - (negative) terminals for signal ground. Note 4: There is no end-of-line resistor to install on the RS-485 COM1 terminals on the last KT-400 controller of a loop. Note 5: If you must make up your own RS-232 cable with a RJ-12 connector, refer to the following diagram for the RJ-12 pin-out.

  • Page 25: Connecting Over Corporate Network (Lan)

    The KT-400 must be powered by a wire-in or plug-in transformer. After you have completed all the necessary steps, you can power up the KT-400. Connect AC power and connect the battery. Once powered, check the Heartbeat LED status indicator to determine the communication status and other vital parameters.
  • Page 26 1. 15 modules (KT-MOD-OUT16) x 750 mA = 11250 mA 2. 11250 mA - 500 mA (or 0 mA if the 12 VDC AUX of the KT-400 is used) = 10750 mA 3. 10750 mA divided by 1850 mA = 5.8 which means in fact 6 external power supplies 12 VDC, 2 Amps are required.

  • Page 27: Spi Expansion Port

    Note 1: The maximum current draw must be calculate each time there is a new module added to the SPI chain. Rule 2: The SPI cable, between the KT-400 and the 1st module or between each modules, cannot exceed 1 m (3 ft). Shielded wire should only be used in areas with excessive RF noise of electromagnetic interference.
  • Page 28 Figure 10: PCB View of Expansion Modules wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...
  • Page 29 KT-400 Ethernet Four-Door Controller Installation Manual Figure 11: Example of KT-400 Ethernet Four-Door Controller Interconnection with Expansion Modules wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...
  • Page 30 Figure 12: Expansion Modules Cabinets for North America and European Union wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...

  • Page 31: Troubleshooting

    / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com KT-400 Ethernet Four-Door Controller Installation Manual Troubleshooting Table 3: Reset Types and Descriptions Jumpers Heartbeats Patterns Resets Soft Reset: When JP2 and JP3 are ON, the controller will reset...

  • Page 32: Default Initialization

    You want to configure the KT-400 with the KT-Finder, see page 32. b) The KT-400 was communicating via the RS-232 port and you have installed a VC-485 or USB-485 to communicate via the RS-485 port. c) The KT-400 was communicating via a VC-485 or a USB-485 interface and you want to communicate directly with the serial (RS-232) port.

  • Page 33: Kt-400 Ethernet Four-Door Controller Maintenance Recommendations

    VDC. Do not crush, puncture, open, disassemble or otherwise mechanically interfere with the battery. Do not try to recharge the battery. If you need to dispose of the PCB and/or the lithium battery, wrap the KT-400 in non-conductive tape. Check with your local authorities for battery disposal regulations.

  • Page 34: Configuring The Kt-400 Ethernet Four-Door Controller With The Web Configuration Page

    5. Select a Protocol (TCP or UDP) 6. Enter a Port (UDP only) 7. Click on Save configuration to KT-400. 8. When you will go to the site with the configured KT-400, you will have to enter the same details into the EntraPass workstation. wwww.EntraPASS.com...
  • Page 35 KT-400 Ethernet Four-Door Controller Installation Manual Configuring the KT-400 Ethernet Four-Door Controller with the KT-Finder The KT-Finder is an application used to configure the KT-400 over the local area network (LAN) or the wide area network It doesn’t require any installation.

  • Page 36: Configuring The Kt-400 Ethernet Four-Door Controller With The Kt-Finder

    9. Select a Protocol (UDP or TCP). 10.Change the Port number, if required (not applicable in TCP). Note: The port number should only be changed when you have more than one KT-400 at the same remote site. 11. Click OK.
  • Page 37 Port (18810 by Default) or _________ (UDP only) IP Address Type: DHCP Static IP Address: ______.______.______.______ Subnet Mask: ______.______.______.______ Default Gateway (Router): ______.______.______.______ EntraPass Special Edition / Multi-site Gateway IP Address: ______.______.______.______ wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...
  • Page 38 Public IP Address:______.______.______.______ Domain name: ____________________________ Port Forwarding Checklist Note: If you are using more than one KT-400 at the same remote site, you must use a unique port number for each KT-400. KT-400 Ports: 18803 (UDP) and 18810 (UDP) or _________ Note: No port forwarded to the KT-400 if used in TCP.

  • Page 39: Installation Checklist

    / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com KT-400 Ethernet Four-Door Controller Installation Manual Installation Checklist To the Installer: If you are familiar with the installation, you can use the checklist with the symbol.

  • Page 40: Inputs And Outputs Assignments Sheet

    / 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com Inputs and Outputs Assignments Sheet Doors DOOR 1 CONTACT DOOR 2 CONTACT DOOR 3 CONTACT DOOR 4 CONTACT Inputs DOOR Z1 NO or NC EOL, DRY or DEOL...
  • Page 41 KT-400 Ethernet Four-Door Controller Installation Manual Figure 14: KT-400 Cabinet Inner Door Sticker Diagram (North America) wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...
  • Page 42 Figure 15: KT-400-EU Inner Door Sticker Diagram (European Union) wwww.EntraPASS.com 8641 S. Warhawk Rd., Conifer, CO 80433 - Tel: 303-670-1099 - Email: Patrick.McAllister@EntraPASS.com...

  • Page 43: Compliance Specifications

    UL 1076 Listed. • The EntraPass and Redundant Server shall be running at all time, and manned 24 hours a day, 365 days a year – The EntraPass and Redundant Server will each have their own operator workstation.

  • Page 44: Fcc & Ic

    1000. Ethernet connections on the KT-400 are not to be used for off-premise communication in UL1076 installations. For remote alarm monitoring use KT-400 in conjunction with KT-NCC.

  • Page 45: En50133 Compliance

    The memorized information (PIN) used in conjunction with the token or biometric (recognition class 2 and 3) shall have a minimum number of differs of 10 000. The KT-400 Ethernet Four-Door Controller is using 5 or 6 digit codes as PIN numbers.
  • Page 46 • The output on the KT-400 Ethernet Four-Door Controller that is intended to be used with a door lock shall be used in conjunction with a separately energized relay in order to provide 30VA galvanic isolation. The output shall be programmed using the EntraPass software to activate when an authorized access has been granted to the respective access point.
