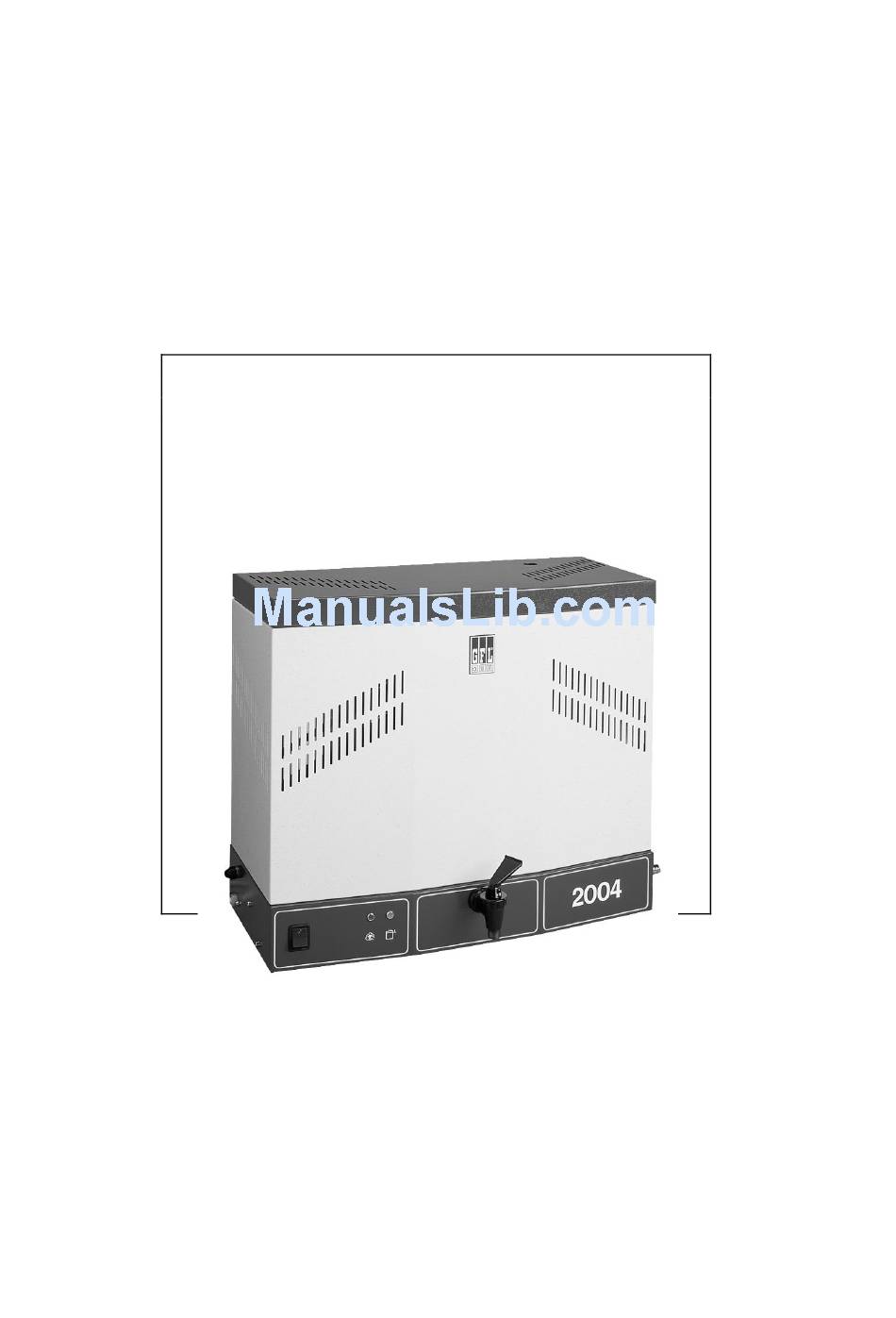

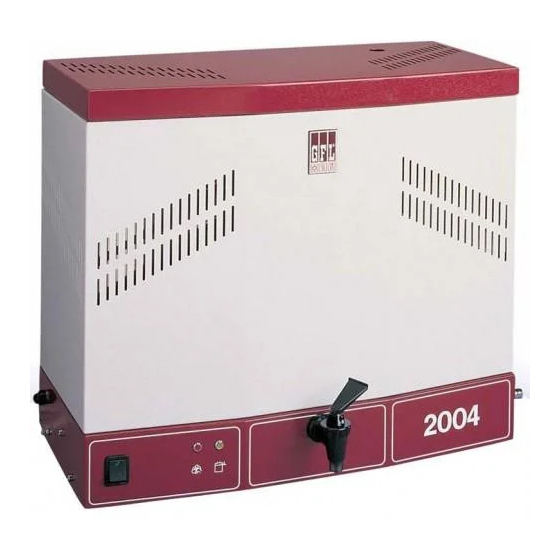

- Page 1 Wasserdestillierapparate Water Stills 2002 - 2012 Bedienungs- Anleitung Operating Instructions...
- Page 2 There are two keyholes for wall mounting at the back of the water still. Place two fastening screws in the wall in the distance of the two keyholes and nest the still on the keyholes. Model / Distance of screws 2002 / 40 cm 2004 / 48 cm 2008 / 64 cm...
-
Page 3: Water Connections
The water still must only be installed connected to a properly installed power connection with neuter (PE), according to the local regulations. It must be secured that power can be cut all-pole (switch or socket). Please also refer to item 10 of these operating instructions "Examples for power connections". - Page 4 Caution! Cooling water leaves the still with a temperature of up to 70°C. Danger of scaldings! 4.6 Tap water inlet (6) The tap water inlet supplies water to the water still through a solenoid valve. Use a ½" pressure hose and a blockable water connection (8, hand stop valve) to connect the hose connection with the water mains.
-
Page 5: Functional Description
6. Functional description 6.1 Water stills GFL Water Stills 2002, 2004, 2008 and 2012 are operated fully automatic. After switching the unit on via the main switch, the green pilot lamp in the main switch and the yellow operation pilot lamp will glow. - Page 6 GFL Water Stills are produced with first class materials and are made to withstand even rough service conditions. Nevertheless, the units should only be subjected to rough conditions within sensible limits.
- Page 7 Caution! Before opening and cleaning the water still always cut off power! (Pull the plug or switch off main switch) Danger of electrical shocks! Please make sure that no fluids come into contact with cable connections or the electrical parts of the inside unit! The pulver-coated surfaces of the unit can be cleaned with mild detergents, if necessary.
-
Page 8: Technical Data
2,3S/cm at 20°C Cooling water required Model 2002- approx 30 litres / hour Model 2008- approx 72 litres / hour Model 2004- approx 48 liters / hour Model 2012- approx 198 litres / hour Water pressure min / max >... - Page 9 Low water cut-off Schaltschütz Contactor Gehäusemasse Earth (housing) Hauptschalter Main switch Magnetventil Solenoid valve 9.1 Typ 2002 - Model 2002 230V / 1 / N / PE / 50..60Hz Elektr.1 Elektr.2 Elektr.3 >130°C Trafo X 12 X 10 X 11 X 13 9.2 Typ 2004 - Model 2004...
- Page 10 230V / 1 / N / PE / 50..60Hz Elektr.1 Elektr.2 Elektr.3 >130°C X3 X4 X5 Trafo X10 X11 X12 X13 9.3 Typ 2008 Ausführung 230 / 1 (s. Typenschild) – Model 2008 – version 230 / 1 (see nameplate) 230V / 1 / N / PE / 50..60Hz Elektr.
- Page 11 220V / 3 / PE / 50..60Hz Elektr.1 Elektr.1 Elektr.1 >130^C Trafo 9.5 Typ 2008 und 2012 Ausführung 400 / 3 (s. Typenschild) Models 2008 and 2012 – version 400 / 3 (see nameplate) 400V / 3 / N / PE / 50..60Hz Elektr.1 Elektr.2 Elektr.3...
- Page 12 Water Stills can be supplied in different versions for connection to different mains supplies. Models 2002 and 2004 for connection to 230V (see nameplate) can be connected to all mains supplies with 220V or 230V. Models 2008 and 2012 for connection to 220/3 (see nameplate) can only be connected to mains supplies with 220V / 3 / PE.
- Page 13 13,0 Amp at 400V / 3 / N / PE * s. Typenschild - * see nameplate Typ 2002 und 2004 in 230V (s. Typenschild) an ein Stromnetz 220V / 3 / PE / 50..60Hz Models 2002 and 2004 for 230V (see nameplate) for a mains supply of 220V / 3 / PE / 50...60 Hz...
- Page 14 400V / 3 / N / PE / 50..60Hz 3 x 1,5mm Typ 2008 in 230/1 (s. Typenschild) an ein Stromnetz 400V / 3 / N / PE / 50..60Hz Models 2008 for 230V (see nameplate) for a mains supply of 400V / 3 / N / PE / 50...60 Hz 400V / 3 / N / PE / 50..60Hz 3 x 4,0mm Typ 2008 und 2012 in 220/3 (s.
- Page 15 Models 2008 and 2012 for 220/3 (see nameplate) for a mains supply of 220V / 3 / PE / 50...60 Hz 220V / 3 / PE / 50..60Hz ge/gr 4 x 2,5mm Typ 2008 und 2012 in 400/3 (s. Typenschild) an ein Stromnetz 400V / 3 / N / PE / 50..60Hz Models 2008 and 2012 for 400/3 (see nameplate) for a mains supply of 400V / 3 / N / PE / 50...60 Hz...
- Page 16 LED pilot lamp, red Staubschutzabdeckung Dust guard shield 17.427 Profildichtschnur aus Silikon Profiled silicon sealing 16.214 Kühlschlange (für GFL-2002) Cooling coil (for GFL-2002) 16.209 Kühlschlange (für GFL-2004) Cooling coil (for GFL-2004) 16.215 Kühlschlange (für GFL-2008) Cooling coil (for GFL-2008) 16.205 Kühlschlange (für GFL-2012)
- Page 17 Geben Sie bitte bei Ersatzteilbestellungen grundsätzlich immer Typ und Seriennummer des Wasserdestillierapparates an. Please always state model and serial no of the water still when placing an order for spare parts! 12. Zusatzeinrichtungen - Accessories Dechloritfilter beseitigt die von den Wasserwerken zugesetzten Chloranteile im Leitungswasser.
- Page 18 Dechloritfilter Dechlorite Filter Bestell Nr. 2904 Order no 2904 Ersatzfüllung Spare filling Bestell Nr. 2905 Order no 2905 Phosphatschleuse verhindert das Auskristallisieren von Härtebildnern im Kondensator durch Phosphatieren des Leitungswassers. Einsetzbar bei Wasserhärten von 4 – 15°dH. Mit Anschlüssen für Druckschlauch ½ Zoll, einschließlich Erstfüllung. Ersatzfüllung für Phosphatschleuse.
- Page 19 Das beanstandete Gerät senden Sie bitte sorgsam verpackt, nach vorheriger telefonischer Klärung an GFL Gesellschaft für Labortechnik mbH Schulze-Delitzsch-Straße 4 D-30938 Burgwedel Bitte denken Sie daran, die Art des Fehlers zu beschreiben und Ihre vollständige Anschrift anzugeben. 13. Guarantee We grant one year (12 months) guarantee from the date of our invoice, providing that the unit is operated according to the instructions in this operation manual.
