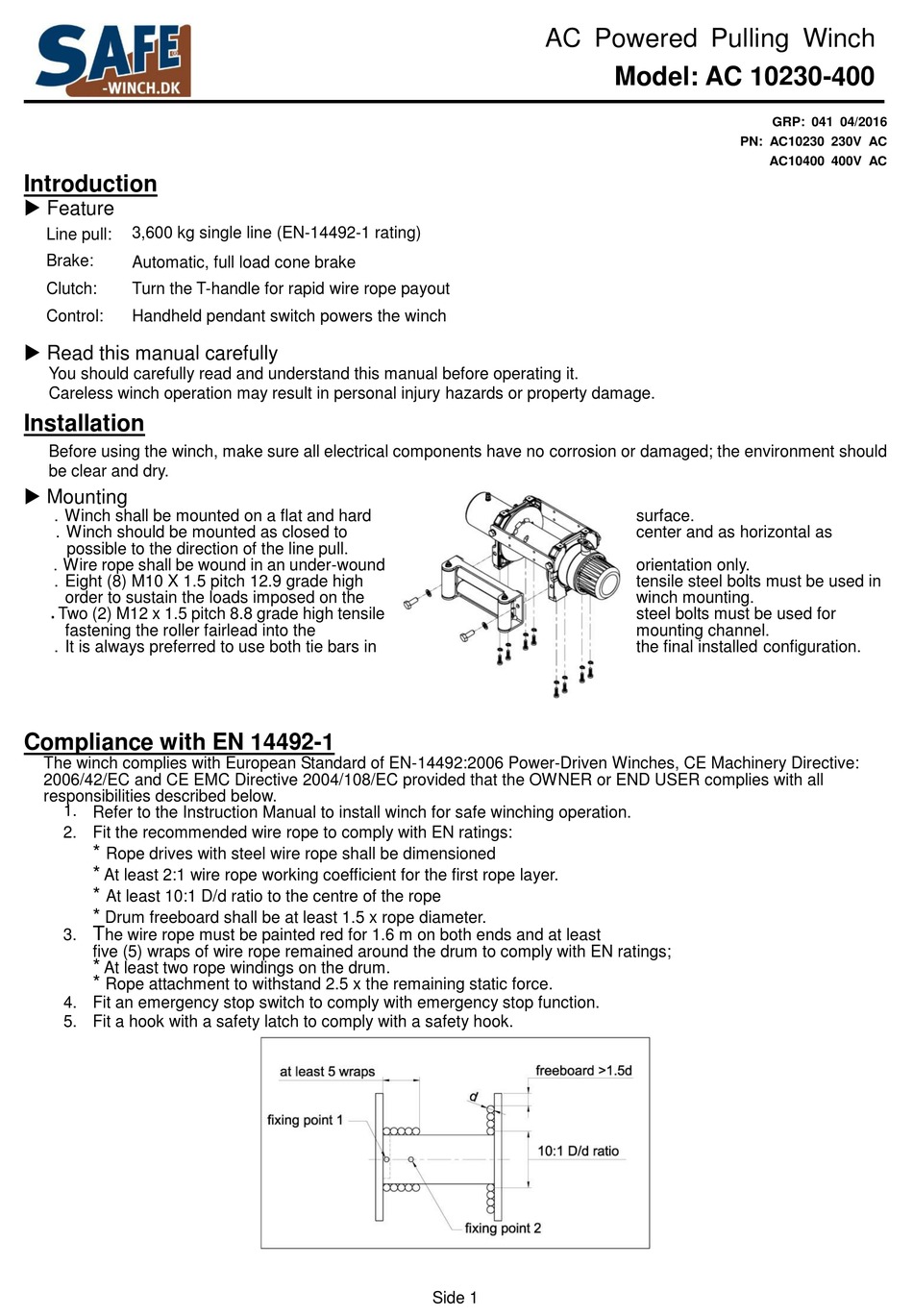

Safe-winch AC 10230-400 Manual

Introduction

 Feature
3,600 kg single line (EN-14492-1 rating)
Line pull:
Brake:
Automatic, full load cone brake
Clutch: Turn the T-handle for rapid wire rope payout
Control: Handheld pendant switch powers the winch
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property damage.

Installation

Before using the winch, make sure all electrical components have no corrosion or damaged; the environment should
be clear and dry.
 Mounting
．Winch shall be mounted on a flat and hard
．Winch should be mounted as closed to
possible to the direction of the line pull.
．Wire rope shall be wound in an under-wound
．Eight (8) M10 X 1.5 pitch 12.9 grade high
order to sustain the loads imposed on the
． Two (2) M12 x 1.5 pitch 8.8 grade high tensile
fastening the roller fairlead into the
．It is always preferred to use both tie bars in

Compliance with EN 14492-1

The winch complies with European Standard of EN-14492:2006 Power-Driven Winches, CE Machinery Directive:
2006/42/EC and CE EMC Directive 2004/108/EC provided that the OWNER or END USER complies with all
responsibilities described below.
1. Refer to the Instruction Manual to install winch for safe winching operation.
2. Fit the recommended wire rope to comply with EN ratings:
*
Rope drives with steel wire rope shall be dimensioned
*
At least 2:1 wire rope working coefficient for the first rope layer.
*
At least 10:1 D/d ratio to the centre of the rope
*
Drum freeboard shall be at least 1.5 x rope diameter.
T
3. he wire rope must be painted red for 1.6 m on both ends and at least
five (5) wraps of wire rope remained around the drum to comply with EN ratings;
*
At least two rope windings on the drum.
*
Rope attachment to withstand 2.5 x the remaining static force.
4. Fit an emergency stop switch to comply with emergency stop function.
5. Fit a hook with a safety latch to comply with a safety hook.
AC Powered Pulling Winch
Side 1
Model: AC 10230-400
GRP: 041 04/2016
PN: AC10230 230V AC
AC10400 400V AC
surface.
center and as horizontal as
orientation only.
tensile steel bolts must be used in
winch mounting.
steel bolts must be used for
mounting channel.
the final installed configuration.
