Summary of Contents for FlowLine Data loop

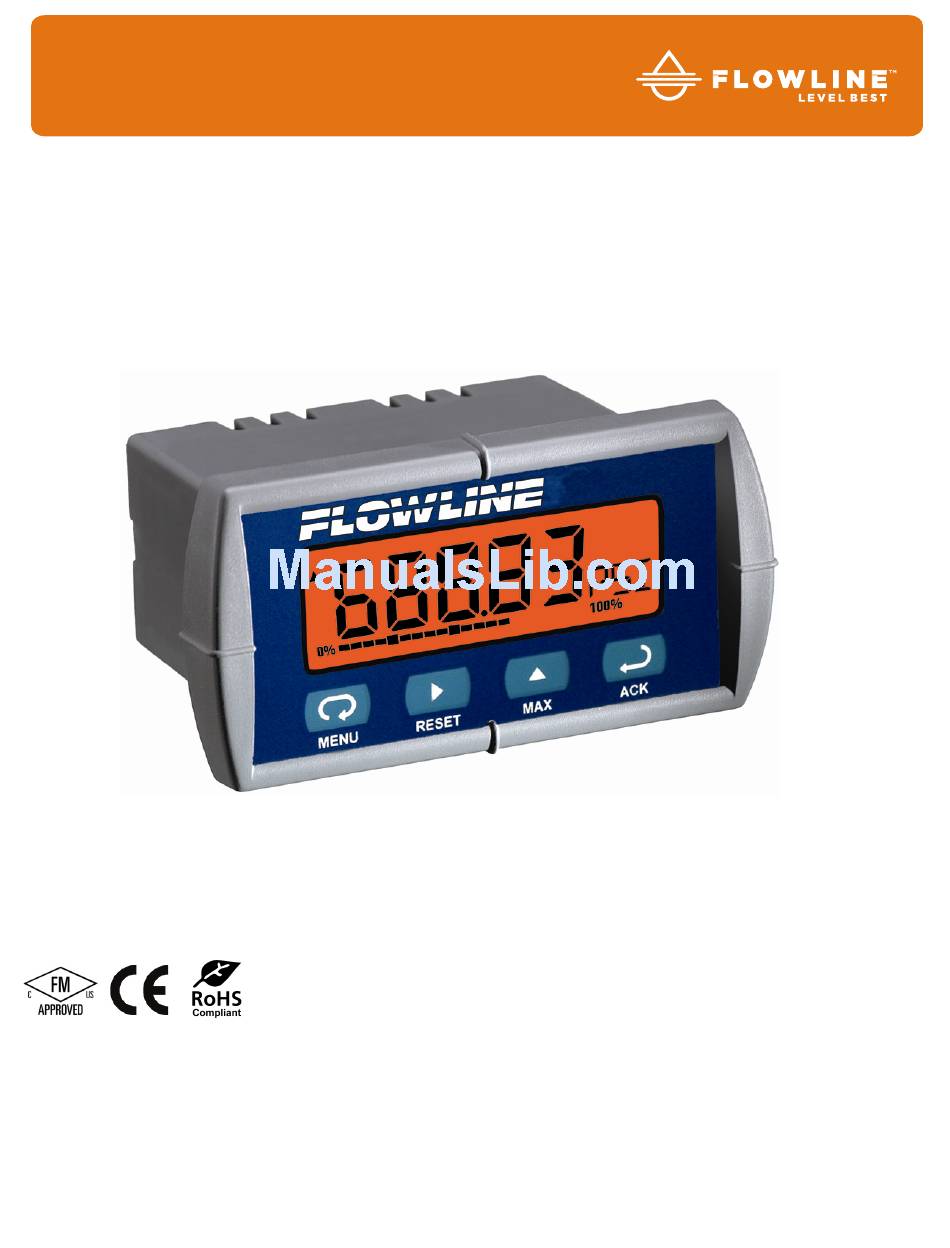

- Page 1 DataLoop ™ Level Indicator LI25-1 & LI25-2 Series Quick Start ©2016 Flowline, Inc. All Rights Reserved Made in USA Flowline, Inc. | 10500 Humbolt Street, Los Alamitos, CA 90720 p 562.598.3015 f 562.431.8507 w flowline.com QS301034 Rev. C...
- Page 2 LI25-2 up and running quickly. If you have a non-standard installation or setup requirement that is not addressed here, please refer to the DataLoop ® Manual or support documentation at flowline.com. WE DO YOUR LEVEL BEST™ Thank you for purchasing DataLoop™ that’s offered in two models. The LI25-1 series is a general purpose level indicator, and the LI25-2 series is an intrinsically safe level indicator for hazardous applications.
- Page 3 3. Remove the two mounting brackets from the indicator. To do so, back off the mounting screws so they protrude ¼” (6.4mm) or less through the bracket. Then, slide each bracket toward the front of the case and remove them. 4.
- Page 4 USING DATALOOP™ DataLoop™ features a 5-digit LCD digital display with a secondary units of measure display and 0-100% of span bar graph display and four-button user interface. The following are the button descriptions. Menu - Used to enter or exit the programming mode, •...
- Page 5 Set Decimal Points The decimal point can be set to as many as five decimal places. Use the decimal point feature to position the decimal point for all displayed values. Placement of the Decimal Point will influence the display’s resolution. Select the best practical scale for indicating level in your application.
- Page 6 1) Press MENU to access the Setup screen. 1) Press Up Arrow / Max and scroll through the options until you reach ProG. 2) Press ACK to access ProG and SCALE will appear. 3) Press ACK and Inpt1 will appear. 4) PRESS ACK to view the existing InP1 (Input 1) value.
- Page 7 1) Press MENU to access the Setup screen. 2) Press ACK to access the dEc PT screen. 3) Press Up Arrow / Max to access the unitS screen. Then, press ACK. 4) This screen allows you to set a three-digit representation of the units of measure that will be displayed on the secondary display.
- Page 8 LI25-2001 INTRINSIC SAFETY CONTROL DRAWING (LIM688FL-2 AX01 06/08) QS301034 Rev. C...
- Page 9 LI25-2001 INTRINSIC SAFETY CONTROL DRAWING (LIM688FL-2 AX01 06/08) QS301034 Rev. C...
-
Page 10: Warranty
WARRANTY Flowline warrants to the original purchaser of its products that such products will be free from defects in material and workmanship under normal use and service in accordance with instructions furnished by Flowline for a period of two years from the date of manufacture of such products. Flowline's obligation under...
