Summary of Contents for IMEON 3.6
- Page 1 IMEON 3.6 INSTALLATION MANUAL Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2...
-
Page 2: Table Of Contents
6-4 Query Menu Operation ....................... 59 7- Operation Mode and display ......................62 8- Problems and solutions ......................... 65 9- Maintenance & Cleaning ....................... 67 10- Synoptic view ..........................68 11- Wiring diagram..........................69 Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... -
Page 3: Important Safety Warning
Internal capacitors may remain charged for 5 minutes after disconnecting all sources of power. CAUTION: Do not cover IMEON. It is fitted with a heat removal system to avoid any overheating. CAUTION: Do not disassemble IMEON yourself. It contains no user-serviceable parts. -

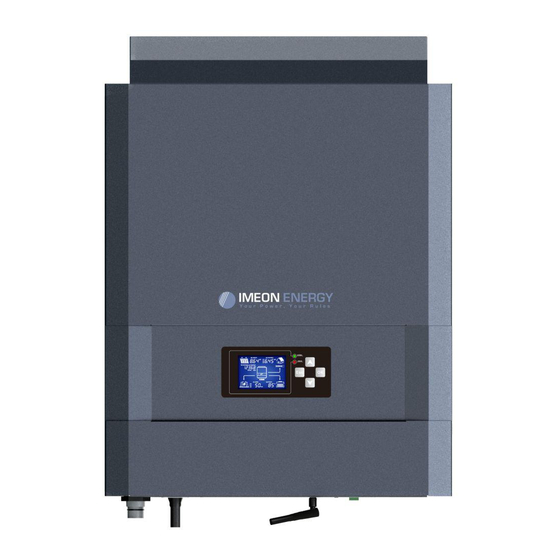

Page 4: Imeon 3.6
IMEON is the ideal solution for all your systems of renewable power production (solar energy/ wind energy / hybrid / …). Thanks to the IMEON, the produced energy is used and directed in an intelligent way for optimal performance. Its technical conception by specific microprocessor drives the energy according to the conditions of production and needs in consumptions. -
Page 5: Technical Specifications
Standards : DIN VDE V 0124-100 5 years / Extension to 10 years (optional) Warranty Maximum possible overload power, time-limited, with solar + grid connected. Refer to the installation manual. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... -
Page 6: 1- Operation Mode
IMEON 3.6 1- Operation mode IMEON is an inverter that is able to adapt itself instantaneously according to the weather conditions and storage. Below are some of its operation modes. The solar panels produce enough energy. The consumption is higher than the... - Page 7 No solar production and the consumption is higher than the energy delivered by IMEON No solar production and the consumption is lower than the energy delivered by IMEON Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2...
-
Page 8: 2- Overview Of Imeon 3.6 Inverter
IMEON 3.6 2- Overview of IMEON 3.6 inverter 2-1 Connections IMEON is an inverter that is composed of a grid input, a solar panels output, a battery input/output and an output for the 230 Vac production. Battery - PV Input... -
Page 9: En 3- Installation
The temperature may cause a reduction of power due to the excessive heating. Install the IMEON at eye level in order to allow the LCD display to be read at all times. Dusty conditions on the unit may impair the performance of this inverter. - Page 10 M4. Fit the IMEON on the wall plate and verify that the inverter is solidly fixed. Tighten the two M4 screws to the mounting bracket on the bottom. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2...
-
Page 11: Electrical Connection
D : Grd (RST) CAUTION: These values are provided solely for guidance. It is necessary to calculate again the cable cross section, according to the current and to the used distance. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... -
Page 12: Pv Module (Dc) Connection
CAUTION: Exceeding the maximum input voltage can destroy the unit!! Check the system before wire connection. Step 2: Disconnect the circuit breaker Step 3: Implementation of the supplied connectors Connecteur DC + Connecteur DC – Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... - Page 13 Refer to the pictures below : Step 5: Make sure the wires are safely connected. CAUTION: It's very important for system safety and efficient operation to use appropriate cable for PV module connection Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2...
-
Page 14: Battery Connection
11 mm on 22 mm then join it into the connector (b). Step 3: Connect battery connector to IMEON in “DC BATTERY” connector. CAUTION: Batteries must be isolated via the battery switch (OFF position) to avoid any electric arc which can be irreversible for the IMEON. -
Page 15: Load (Ac Output) Connection
IMEON 3.6 Step 4: Put the battery switch on “ON” position to connect the batteries to the IMEON. CAUTION: Do not switch the circuit breaker when the IMEON is under load, it can damage the inverter. Batteries (4 x 12V = 48V) To size correctly the battery capacity, a study must be made. - Page 16 (N), of the phase (L) and the ground ( Connect the phase to the symbol « L » Connect the neutral to the symbol « N » Connect the ground to the tsymbol « » Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2...
- Page 17 CAUTION: At the time of the AC Output connection, make sure that it has no consumption on the circuit. NOTE: AC Output cannot be connected in parrallel to another IMEON and cannoot be connected to the grid. NOTE: The inverter current (battery + PV) cannot exceed 16A (13A nominal). In the case of grid outage, make sure not to go over this figure.
-
Page 18: Ac Grid Connection
Step 1: Check the grid voltage and frequency with an AC voltmeter. It should be the same to “VAC” value on the product label. It has to be in the range of functionning of IMEON Step 2: Turn off the circuit breaker. -
Page 19: 4- Communication
The inverter is equipped with RS232 and USB ports and it is also equipped with a slot for alternative communication interfaces in order to communicate with a PC with corresponding software. This intelligent slot is suitable to install with Modbus or Ethernet card. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... -
Page 20: 5- Commissioning
Assure that the battery voltage is for the nominal value approximately planned for the inverter (48 Vdc). Verify the good sizing of the cabling between the inverter and the battery. CAUTION: Before switching on, verify again all the connectors and all the connectings. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... -
Page 21: 6- Inverter Supervision
% : percentage of charge. A : Current in Amperes Indicates the generated PV production Indicates the PV Indicates the grid. If the icon flashes, that means the grid is unavailable. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... -
Page 22: Display By Indicator Light
> Press this button to go out of the sub-menu. > If you are not in the menu, Press this button up to a sound emission to deactivate the AC output. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... -
Page 23: Query Menu Operation
AC OUTPUT: Voltage, Frequency, Power in kiloWatt, Power in kiloVoltampere. BATTERY: Voltage, Charge current, Percentage of charge. AC GRID : Voltage, Frequency. RENEWABLE ENERGY: Daily production, Total production. DC INPUT: Voltage, Power, Current. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... - Page 24 Sub-menu AC Output : - Voltage - Frequency - Power (kilo Watt) - Power (kilo Voltampere) Sub-menu Battery : -Voltage -Charge current -Percentage of charge Sub-menu AC Grid : -Voltage -Frequency Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2...
- Page 25 IMEON 3.6 Sub-menu RENEWABLE ENERGY : -Daily production -Total production Sub-menu DC INPUT : -Voltage -Power -Current Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2...
-
Page 26: 7- Operation Mode And Display
The photovoltaic production allows to charge the batteries. The grid brings the additional needs to charge the batteries. The AC Output is deactivated, the load is not supplied. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... - Page 27 The AC Output is deactivated, the load is not supplied. The « AC GRID » icon is flashing, the grid is disconnected from the IMEON. The photovoltaic production allows to supply the load and to charge the batteries. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2...
- Page 28 INPUT » icon flashing, photovoltaic panels are disconnected from the IMEON. The grid brings the additional needs to supply the load. The AC Output is deactivated, the load is not supplied. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2...
-
Page 29: 8- Problems And Solutions
3. If grounding is correctly connected, turn on DC breaker. After it displays “No Utility” in LCD screen, turn on AC breaker. After 300 seconds, the system will automatically connect to the grid. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... - Page 30 4. Turn on the inverter. 1. Please check if fans are runing ok. 2. If fans are running ok, please shut down inverter - Fan fault first and then restart it. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2...
-
Page 31: 9- Maintenance & Cleaning
CAUTION: Do not dispose of batteries in a fire. The batteries may explode. CAUTION: Do not open or mutilate batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... -
Page 32: 10- Synoptic View
IMEON 3.6 10- Synoptic view Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... -
Page 33: 11- Wiring Diagram
IMEON 3.6 11- Wiring diagram Note : This scheme is offered only as a guide. Make sure you comply with the applicable laws and regulations of your country. Manuel d’installation / Installation manual IMEON 3.6 – Rev A.2... - Page 34 IMEON Energy and the buyer. 3- Limitation of responsability IMEON Energy cannot be held in any way liable in the event of installation of equipment having no production or a weaker production than that estimated by its technical study.
- Page 36 IMEON ENERGY / FRANCE Adresse / Adress : 5 rue Jean Paul Sartre 29200 BREST - FRANCE Tel : +(33) 184 174 989 SAV : Contactez votre fournisseur www.imeon-energy.com...
